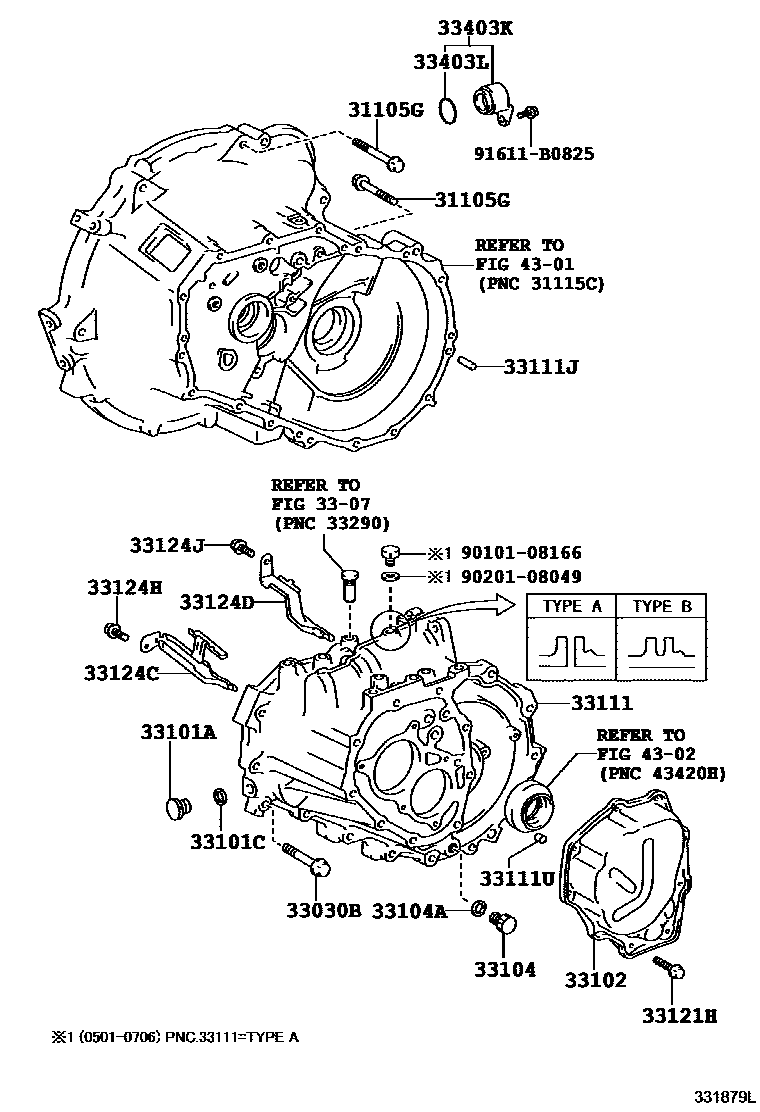

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61045×7iNCP50,51,55,58,59,NLP51..5F200603-201409

main91612-61050×7iNCP50,51,55,58,59,NLP51..5F200206-200602

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×3iNCP50,51,55,58,59,NLP51..5F200206-200408

main90105-08353×13iNCP50,51,55,58,59,NLP51..5F200206

main90105-08430×3iNCP50,51,55,58,59,NLP51..5F200408

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNCP50,51,58,NLP51..5F200206-200506

main90341-18033iNCP50,51,58,NLP51..5F200506

main90341-18054iNCP55,59..5F200206

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP50,51,55,58,59,NLP51..5F200206

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iNCP50,51,55,58,59,NLP51..5F200206

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNCP50,51,55,58,59,NLP51..5F200206-200506

main90341-18033iNCP50,51,55,58,59,NLP51..5F200506

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP50,51,55,58,59,NLP51..5F200206

33111CASE, MANUAL TRANSMISSION

main33111-16063iNCP50,51,55,58,59,NLP51..5F200206-200501

main33111-16064iNCP50,51,55,58,59,NLP51..5F200501-200706

main33111-52110iNCP50,51,55,58,59,NLP51..5F200501-200706

main33111-52140iNCP50,51,55,58,59,NLP51..5F200706

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iNCP50,51,55,58,59,NLP51..5F200206

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iNCP50,51,55,58,59,NLP51..5F200206

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08782×9iNCP50,51,55,58,59,NLP51..5F200603

main91611-60835×9iNCP50,51,55,58,59,NLP51..5F200206-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iNCP50,51,55,58,59,NLP51..5F200206

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNCP50,51,55,58,59,NLP51..5F200206

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iNCP50,51,55,58,59,NLP51..5F200206

33124JBOLT, W/WASHER

main91611-G0820iNCP50,51,55,58,59,NLP51..5F200206

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNCP50,51,55,58,59,NLP51..5F200206

33403LRING, O

main96711-24030iNCP50,51,55,58,59,NLP51..5F200206

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9010108166

main90101-08166

9020108049

main90201-08049

91611B0825

main91611-B0825

23 parts on this diagram · 1 diagram in section
