TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

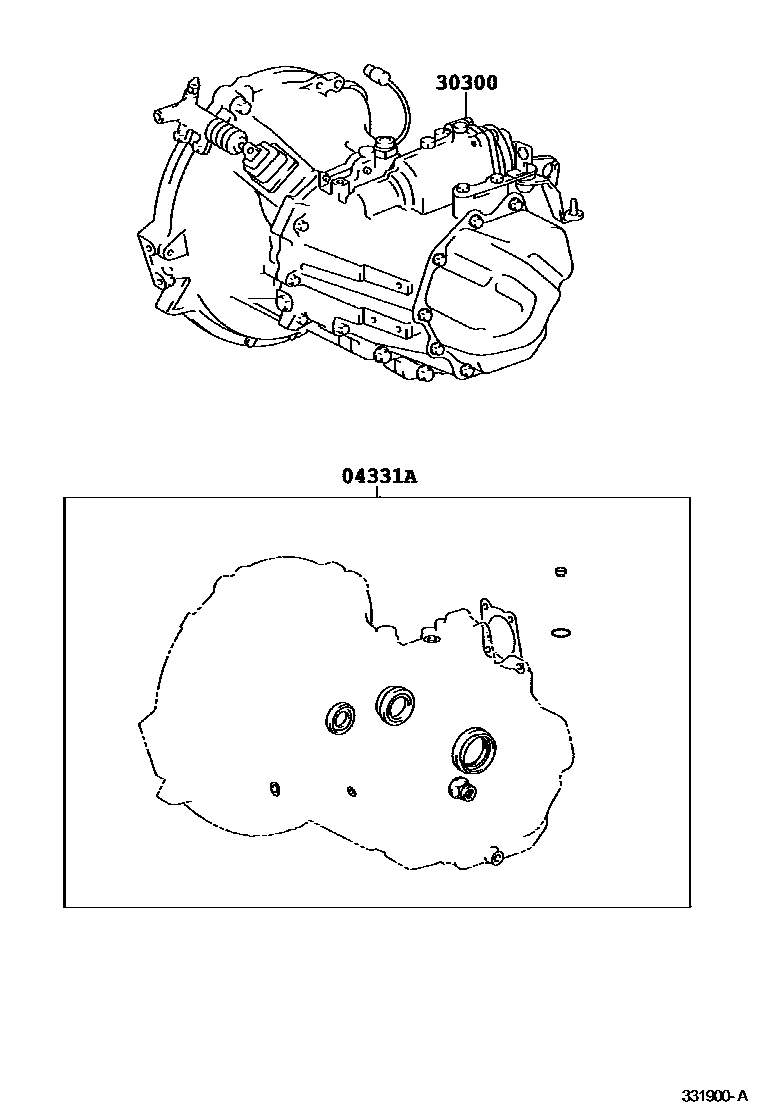

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-13040i200408-200410

main04331-52030i200206-200408

main04331-52040i200206-200408

main04331-52120i200410-200510

main04331-52210i200408

main04331-52270i200511

30300TRANSAXLE ASSY, MANUAL

main30300-52091i200206-200706

main30300-52092i200706-201409

main30300-52240i200206-200706

main30300-52241i200706-200708

main30300-52261i200206-200706

main30300-52262i200706-201409

main30300-52271i200206-200706

main30300-52272i200706-201409

2 parts on this diagram · 1 diagram in section
