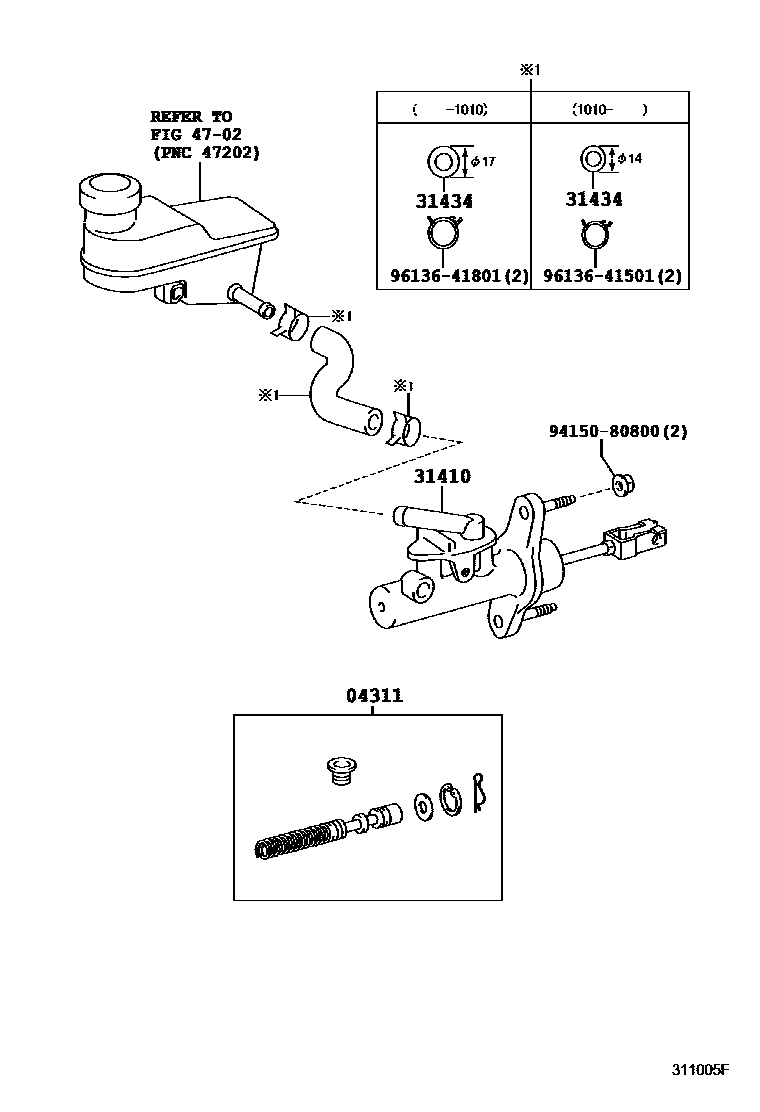

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iNCP50,51,55,58,59,NLP51..5F200206

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52030iNCP50,51,55,58,59,NLP51..5F200206

31434TUBE, CLUTCH RESERVOIR

main31434-52030iNCP50,51,55,58,59,NLP51..5F200206-201010

main31434-52031iNCP50,51,55,58,59..5F201010

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9415080800

main94150-80800

9613641501

main96136-41501

9613641801

main96136-41801

7 parts on this diagram · 1 diagram in section
