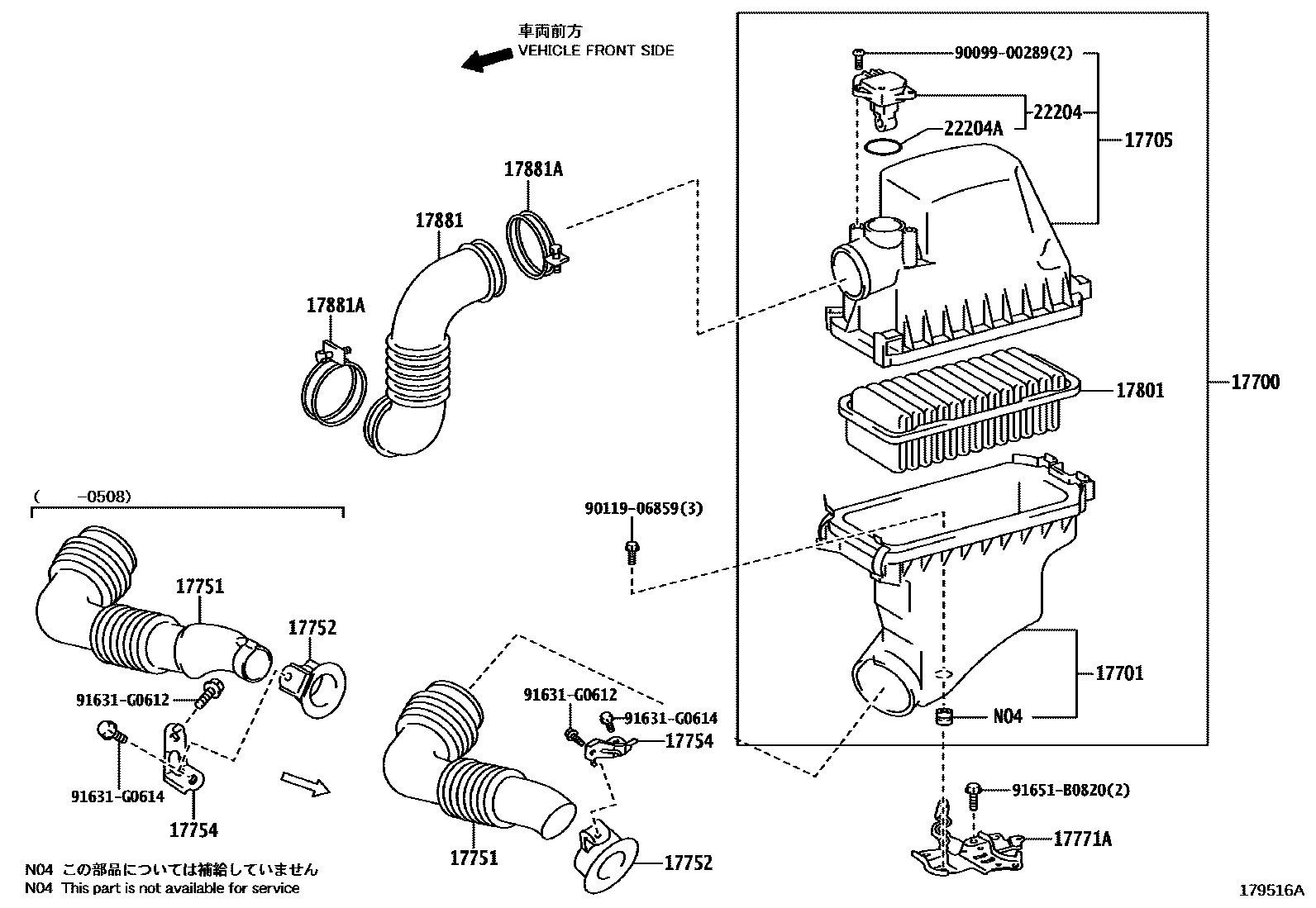

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-21050i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

main17700-33170i1NDTV..NLP51..DXJ200206-200708

17701CASE SUB-ASSY, AIR CLEANER

main17701-21050i1NZFE,2NZFE..NCP50,55..DXJ200206-201409

17705CAP SUB-ASSY, AIR CLEANER

main17705-21030i1NZFE,2NZFE..NCP50,55..DXJ200206-200307

sub17705-21031

main17705-21031i1NZ#,2NZFE..NCP5#200307

main17705-33050i1NDTV..NLP51..DX,GL,U,UL200206-200708

17751INLET, AIR CLEANER, NO.1

main17751-21040i1NZFE,2NZFE..NCP50,55..DXJ200206-200508

main17751-21180i1NZ#,2NZFE..NCP5#200508

main17751-33040i1NDTV..NLP51..DXJ200206-200708

17752INLET, AIR CLEANER, NO.2

main17752-21020i1NZ#,2NZFE..NCP5#..DX,F,GL,TX,U,UL200206-200304

17754STAY, AIR CLEANER INLET

main17754-21020i1NZFE,2NZFE..NCP50,55..DXJ200206-200508

main53994-52010i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200508

17771ABRACKET, AIR CLEANER

main17771-21010i1NZFE,2NZFE..NCP50,55..DXJ200206-201409

main17771-33010i1NDTV..NLP51..DX,GL,U,UL200206-200708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21030i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

main17801-33040i1NDTV..NLP51..DX,GL,U,UL200206-200708

17881HOSE, AIR CLEANER, NO.1

main17880-21010i1NZFE,2NZFE..NCP5#200206-200208

sub17880-21060

main17880-21050i2NZFE..NCP50..DX,GL200208-201212

sub17880-21051

main17880-21051i2NZFE..NCP50201301-201409

main17880-21060i1NZFE..NCP55..DXJ200208-201212

sub17880-21061

main17880-21061i1NZ#..NCP51,52,55,58,59201301-201409

main17881-33010i1NDTV..NLP51..DXJ200206-200708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10580i1NDTV..NLP51..DX,GL,U,UL200206-200708

main96111-10690i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

main22204-30010i1NDTV..NLP51..DXJ200206-200708

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

9009900289

main90099-00289

9011906859

main90119-06859

91631G0612

main91631-G0612

91631G0614

main91631-G0614

91651B0820

main91651-B0820

17 parts on this diagram · 2 diagrams in section
