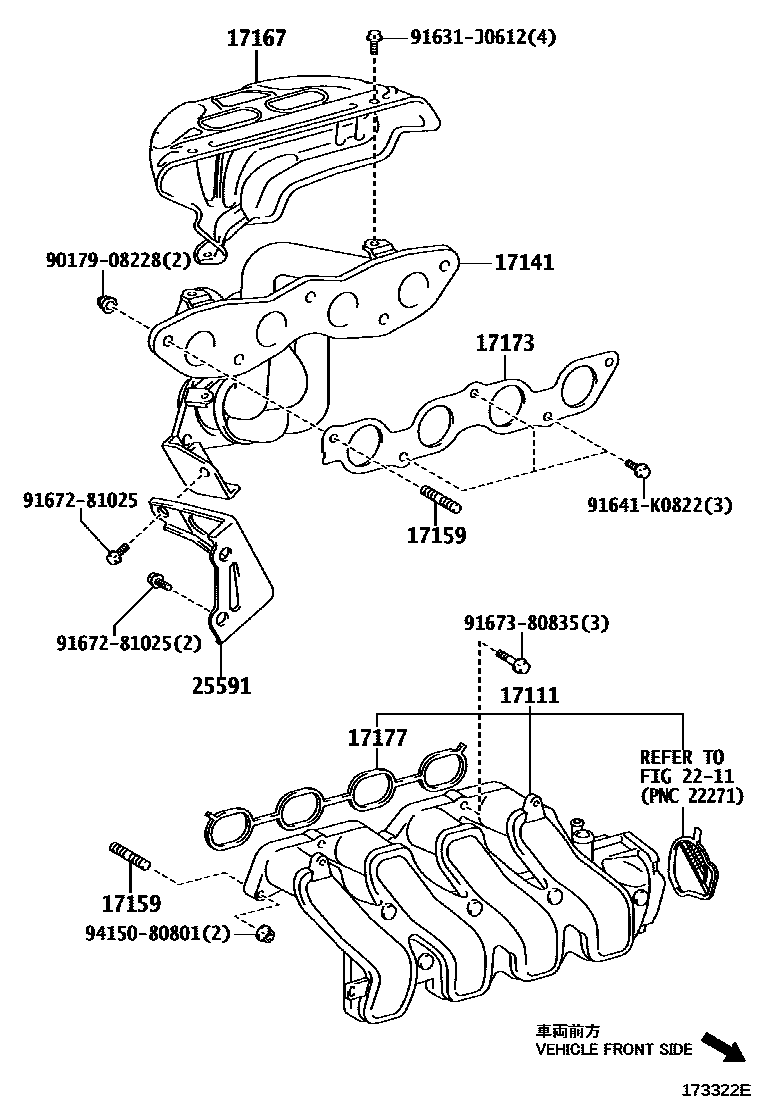

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-21020i2NZFE..NCP50200206-200301

sub17120-21010

main17101-21030i1NZFE..NCP51,55,58,59200206-200301

sub17120-21020

main17120-21010i2NZFE..NCP50200301-201409

main17120-21020i1NZ#..NCP51,52,55,58,59200301-201409

17141MANIFOLD, EXHAUST

main17141-21090i1NZ#..NCP51,52,58200206

main17141-21100i2NZFE..NCP50200206

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i1NZ#,2NZFE..NCP5#200206

main90126-08037i1NZ#,2NZFE..NCP5#200206

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21060i1NZ#,2NZFE..NCP50,51,52,58200206

main17167-21070i1NZFE..NCP55,59200206

main17167-33010i1NDTV..NLP51200206-200708

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZ#,2NZFE..NCP5#200206-201409

main17173-33010i1NDTV..NLP51200206-200708

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21020i1NZ#,2NZFE..NCP5#200206-201302

sub17177-21030

main17177-21030i1NZ#,2NZFE..NCP5#201302-201409

2211

25591BRACKET, MANIFOLD SUPPORT

main25591-21020i1NZ#,1NDTV,2NZFE..NCP50,51,52,58,NLP51200206

main25591-21030i1NZFE..NCP55..DXJ200206-200304

9017908228

main90179-08228

91631J0612

main91631-J0612

91641K0822

main91641-K0822

9167281025

main91672-81025

9167380835

main91673-80835

9415080801

main94150-80801

14 parts on this diagram · 3 diagrams in section
