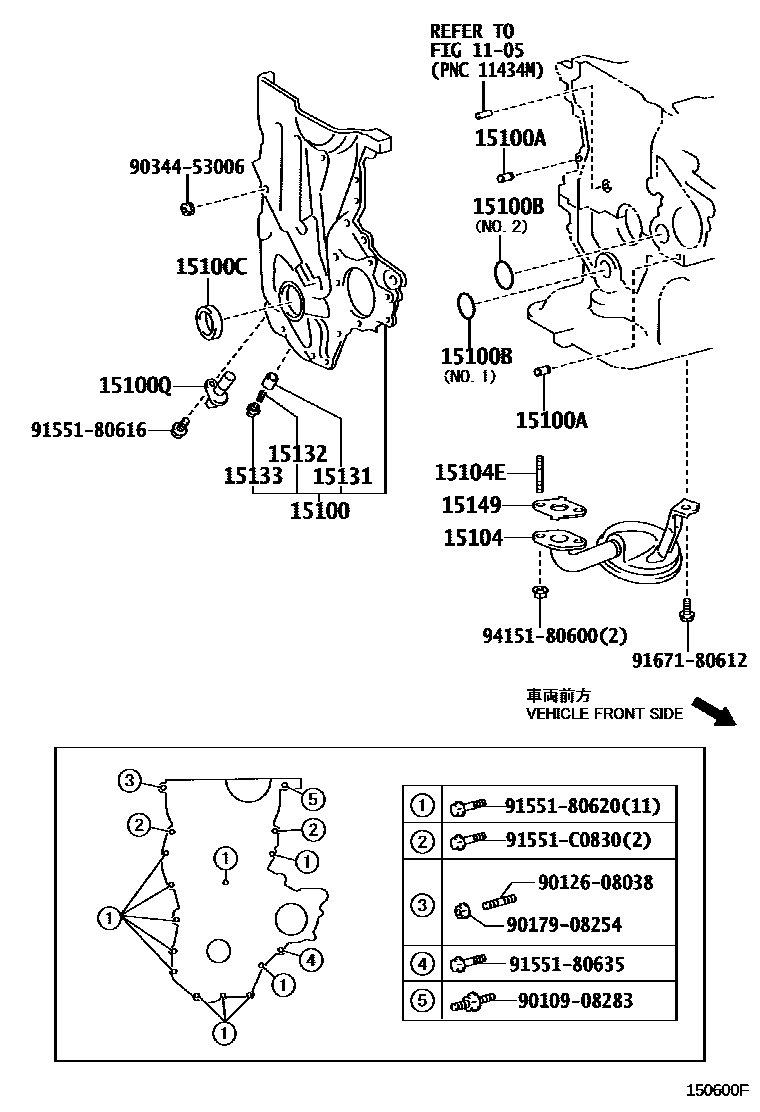

Toyota PROBOX/SUCCEED — ENGINE OIL PUMP
1105CYLINDER BLOCK
15100PUMP ASSY, OIL
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15100QSENSOR, CRANK POSITION
15104EBOLT, STUD(FOR OIL STRAINER)
9010908283
9012608038
9017908254
9034453006
9155180616
9155180620
9155180635
91551C0830
9167180612
9415180600
22 parts on this diagram · 3 diagrams in section
ENGINE OIL PUMP for Toyota PROBOX/SUCCEED
This section contains 32 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota PROBOX/SUCCEED. Key components include: CYLINDER BLOCK, COVER, TIMING CHAIN, NO.2, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP).
