TIMING GEAR COVER & REAR END PLATE

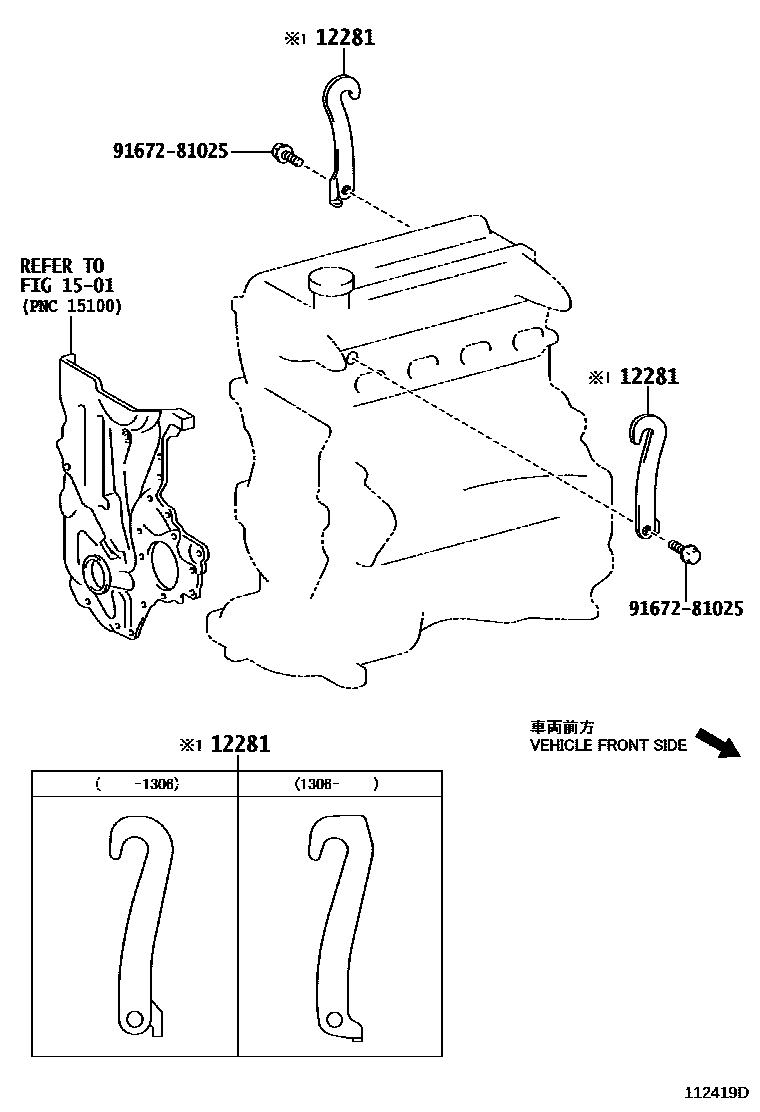

Parts diagram

12281HANGER, ENGINE, NO.1

main12281-21010×2i200206-201306

main12281-21090×2i201306-201409

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9167281025

main91672-81025

3 parts on this diagram · 1 diagram in section
