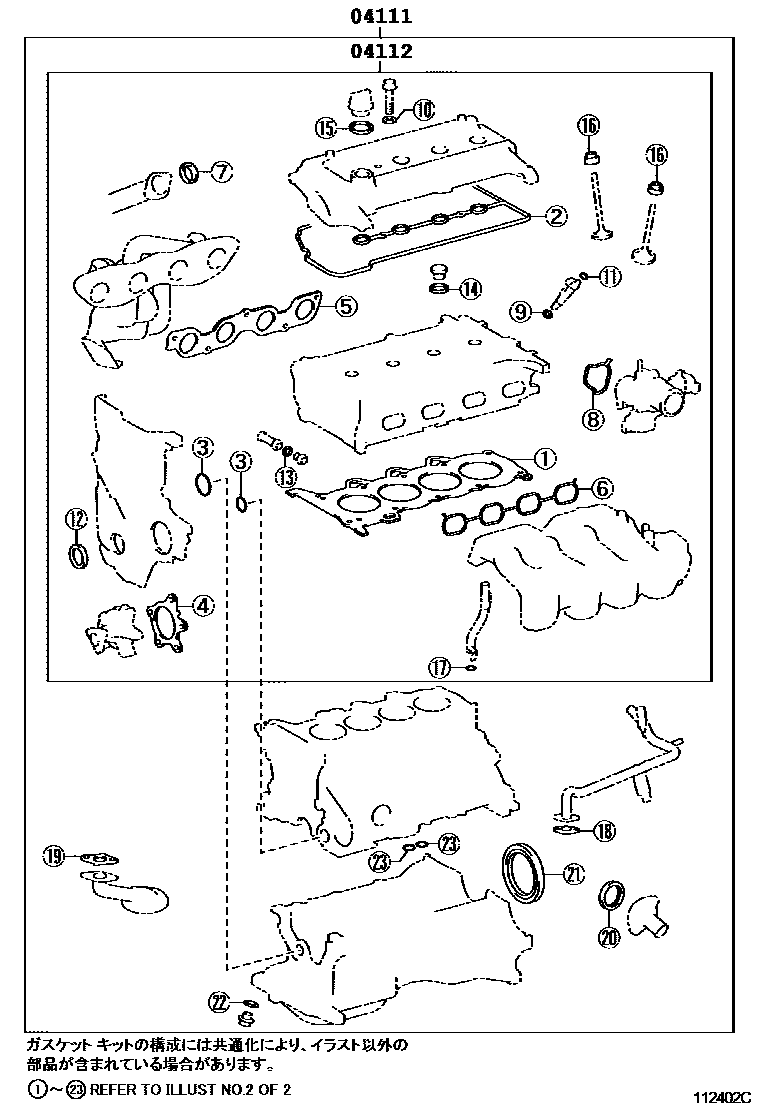

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-21060i1NZFE,2NZFE..NCP5#200206-200302

sub04111-21061

sub04111-21100

main04111-21061i1NZFE,2NZFE..NCP50,51,55,58,59..DX,F,GL,TX,U,UL200302-200308

sub04111-21062

main04111-21062i1NZFE,2NZFE..NCP50,51,55,58,59200308-200612

sub04111-21063

main04111-21063i1NZFE,2NZFE..NCP50,51,55,58,59200612-200811

sub04111-21064

main04111-21064i1NZFE,2NZFE..NCP50,51,55,58,59200811-201011

sub04111-21065

main04111-21065i1NZFE,2NZFE..NCP50,51,55,58,59201011-201107

sub04111-21066

main04111-21066i1NZFE,2NZFE..NCP50,51,55,58,59201107-201110

sub04111-21067

main04111-21067i1NZFE,2NZFE..NCP50,51,55,58,59201110-201111

sub04111-21068

main04111-21068i1NZFE,2NZFE..NCP50,51,55,58,59201111-201201

sub04111-21069

main04111-21069i1NZFE,2NZFE..NCP50,51,55,58,59201201-201204

sub04111-21350

main04111-21070i1NZFNE..NCP52200304-200308

sub04111-21071

main04111-21071i1NZFNE..NCP52200308-200612

sub04111-21072

main04111-21072i1NZFNE..NCP52200612-200811

sub04111-21073

main04111-21073i1NZFNE..NCP52200811-201011

sub04111-21074

main04111-21074i1NZFNE..NCP52201011-201110

sub04111-21075

main04111-21075i1NZFNE..NCP52201110-201111

sub04111-21076

main04111-21076i1NZFNE..NCP52201111-201201

sub04111-21077

main04111-21077i1NZFNE..NCP52201201-201204

sub04111-21078

main04111-21078i1NZFNE..NCP52201204-201311

sub04111-21079

main04111-21079i1NZFNE..NCP52201311-201402

sub04111-21380

main04111-21350i1NZFE,2NZFE..NCP50,51,55,58,59201204-201311

sub04111-21351

main04111-21351i1NZFE,2NZFE..NCP50,51,55201311-201402

sub04111-21352

main04111-21352i1NZFE,2NZFE..NCP50,51,55201402

sub04111-21353

main04111-21380i1NZFNE..NCP52201402

sub04111-21381

main04111-33022i1NDTV..NLP51200310-200708

main04111-33030i1NDTV..NLP51200206-200301

sub04111-33031

main04111-33031i1NDTV..NLP51200301-200302

sub04111-33032

main04111-33032i1NDTV..NLP51200302-200310

sub04111-33022

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21060i1NZFE,2NZFE..NCP5#200206-200302

sub04112-21061

sub04112-21100

main04112-21061i1NZFE,2NZFE..NCP50,55..DXJ200302-200308

sub04112-21062

main04112-21062i1NZFE,2NZFE..NCP50,51,55,58,59200308-200612

sub04112-21063

main04112-21063i1NZFE,2NZFE..NCP50,51,55,58,59200612-201011

sub04112-21064

main04112-21064i1NZFE,2NZFE..NCP50,51,55,58,59201011-201107

sub04112-21065

main04112-21065i1NZFE,2NZFE..NCP50,51,55,58,59201107-201110

sub04112-21066

main04112-21066i1NZFE,2NZFE..NCP50,51,55,58,59201110-201111

sub04112-21067

main04112-21067i1NZFE,2NZFE..NCP50,51,55,58,59201111-201204

sub04112-21068

main04112-21068i1NZFE,2NZFE..NCP50,51,55,58,59201204-201311

sub04112-21069

main04112-21069i1NZFE,2NZFE..NCP50,51,55201311-201402

sub04112-21360

main04112-21070i1NZFNE..NCP52200304-200308

sub04112-21071

main04112-21071i1NZFNE..NCP52200308-200612

sub04112-21072

main04112-21072i1NZFNE..NCP52200612-201011

sub04112-21073

main04112-21073i1NZFNE..NCP52201011-201110

sub04112-21074

main04112-21074i1NZFNE..NCP52201110-201111

sub04112-21075

main04112-21075i1NZFNE..NCP52201111-201204

sub04112-21076

main04112-21076i1NZFNE..NCP52201204-201311

sub04112-21077

main04112-21077i1NZFNE..NCP52201311-201402

sub04112-21078

main04112-21078i1NZFNE..NCP52201402

sub04112-21079

main04112-21360i1NZFE,2NZFE..NCP50,51,55201402

sub04112-21361

main04112-33021i1NDTV..NLP51200310-200708

main04112-33030i1NDTV..NLP51200206-200301

sub04112-33031

main04112-33031i1NDTV..NLP51200301-200305

sub04112-33021

2 parts on this diagram · 6 diagrams in section
