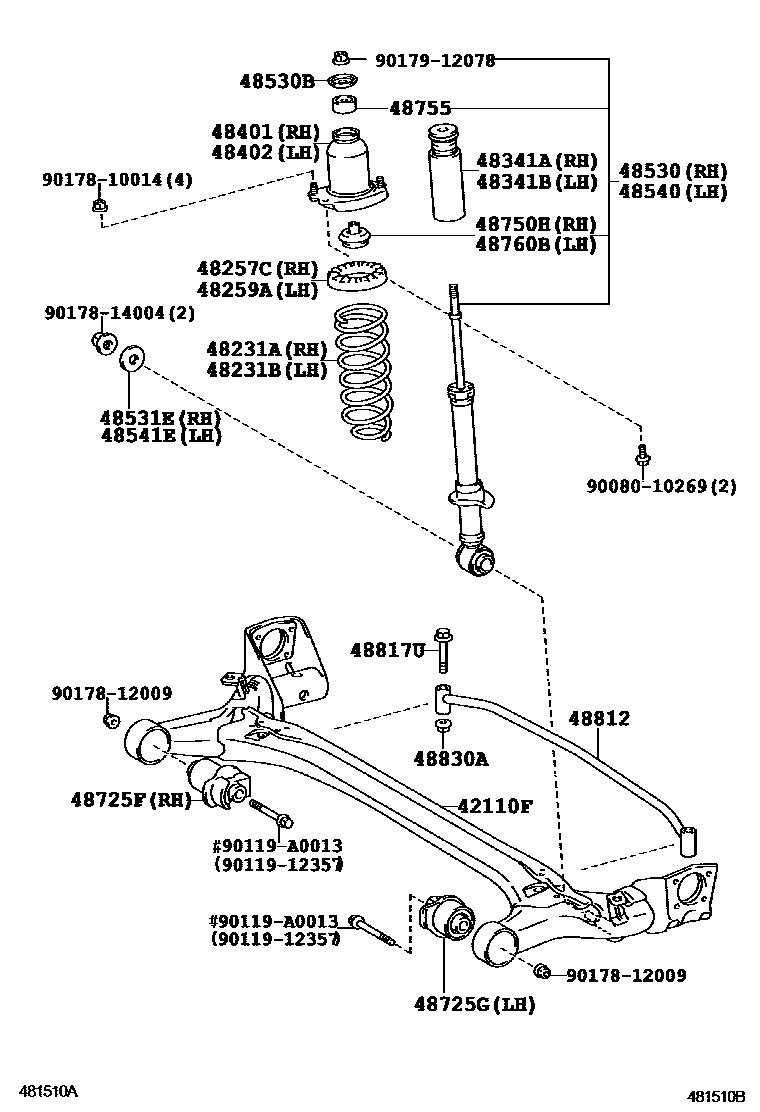

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-01010iZZE136200205

main42101-01020iZZE137200205

48231ASPRING, COIL, REAR RH

main48231-01080iZZE138200205

main48231-AG030iZZE136,137200205

48231BSPRING, COIL, REAR LH

main48231-01080iZZE138200205

main48231-AG030iZZE136,137200205

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-01020iZZE138200205

main48257-02040iZZE136,137200205

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-01020iZZE138200205

main48257-02040iZZE136,137200205

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-01040iZZE138200205

main48341-AB010iZZE136,137200205

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-01040iZZE138200205

main48341-AB010iZZE136,137200205

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-32010iZZE138200205

main48401-32020iZZE136,137200205

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48401-32010iZZE138200205

main48403-32010iZZE136,137200205

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09540iZZE138200205

sub48530-A9550

main48530-A9140iZZE136200205

sub48530-A9420

main48530-A9150iZZE137200205

sub48530-A9430

main48530-A9150iZZE137200205

sub48530-A9430

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iZZE13#200205

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90560-14028iZZE136,137200205

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09540iZZE138200205

sub48530-A9550

main48530-A9140iZZE136200205

sub48530-A9420

main48530-A9150iZZE137200205

sub48530-A9430

main48530-A9150iZZE137200205

sub48530-A9430

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90560-14028iZZE136,137200205

48725BUSH, LOWER CONTROL ARM

main48725-32250iZZE138200205

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02230iZZE136,137200205

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02230iZZE136,137200205

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-01020iZZE138200205

main48750-02050iZZE136,137200205

48755SUPPORT, REAR SUSPENSION

main48755-01020iZZE138200205

main48755-02050iZZE136,137200205

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-01020iZZE138200205

main48750-02050iZZE136,137200205

48812BAR, STABILIZER, REAR

main48812-01020iZZE138200205

main48812-AB010iZZE136,137200205

sub48812-AB011

48817UBOLT(FOR REAR STABILIZER)

main90105-14155iZZE136,137200205

48830ANUT(FOR REAR STABILIZER LINK)

main90178-14009iZZE136,137200205

main90179-10183iZZE138200205

9008010269

main90080-10269

9011912357

main90119-12357

90119A0013

main90119-A0013

9017810014

main90178-10014

9017812009

main90178-12009

9017814004

main90178-14004

9017912078

main90179-12078

30 parts on this diagram · 2 diagrams in section
