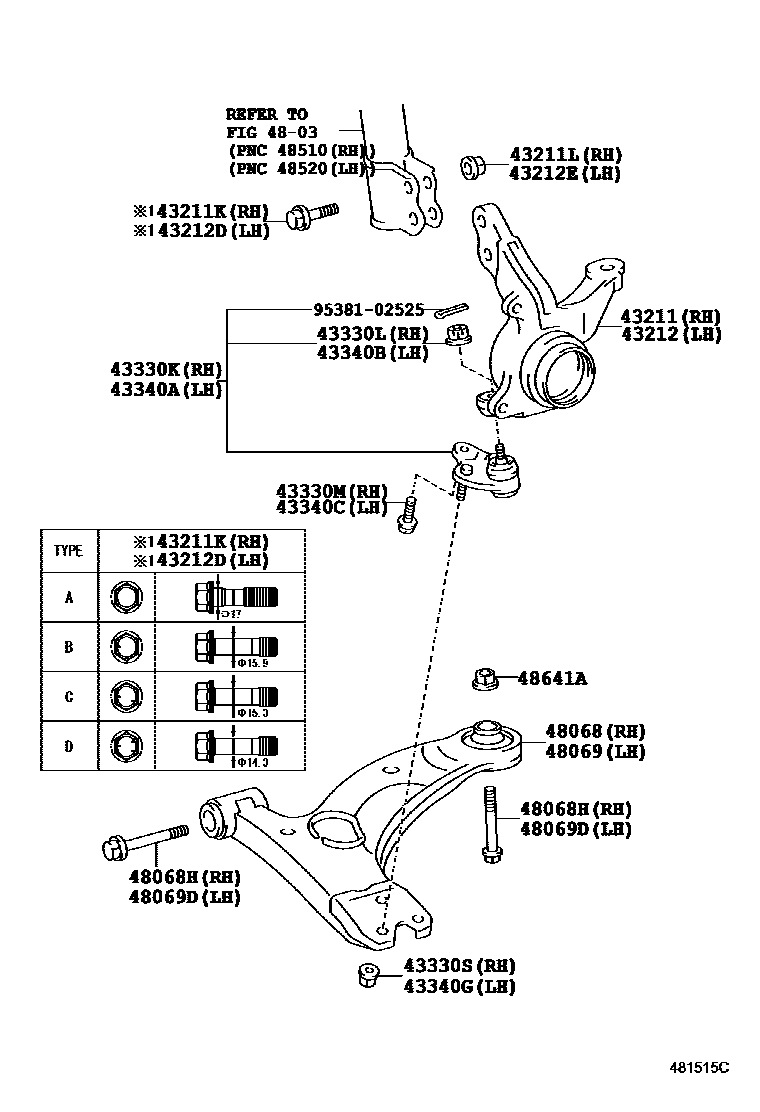

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-12420iZZE136,137200205

main43211-12440iZZE138200205

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17001×2iZZE13#200205-200305

main90105-17003iZZE13#200205

main90105-17004iZZE13#200205

main90105-17005iZZE13#200205

main90105-A0041×2iZZE13#200305

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-17001×2iZZE13#200205

43212KNUCKLE, STEERING, LH

main43212-12370iZZE136,137200205

main43212-12390iZZE138200205

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17001×2iZZE13#200205-200305

main90105-17003iZZE13#200205

main90105-17004iZZE13#200205

main90105-17005iZZE13#200205

main90105-A0041×2iZZE13#200305

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-17001×2iZZE13#200205

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09190iZZE13#200205

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iZZE13#200205

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90080-10271iZZE13#200205

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12015×2iZZE13#200205

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09190iZZE13#200205

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iZZE13#200205

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90080-10271iZZE13#200205

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12015×2iZZE13#200205

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02020iZZE13#200205

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90080-11506×2iZZE13#200205

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02020iZZE13#200205

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90080-11506×2iZZE13#200205

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2iZZE13#200205

9538102525

main95381-02525

21 parts on this diagram · 1 diagram in section
