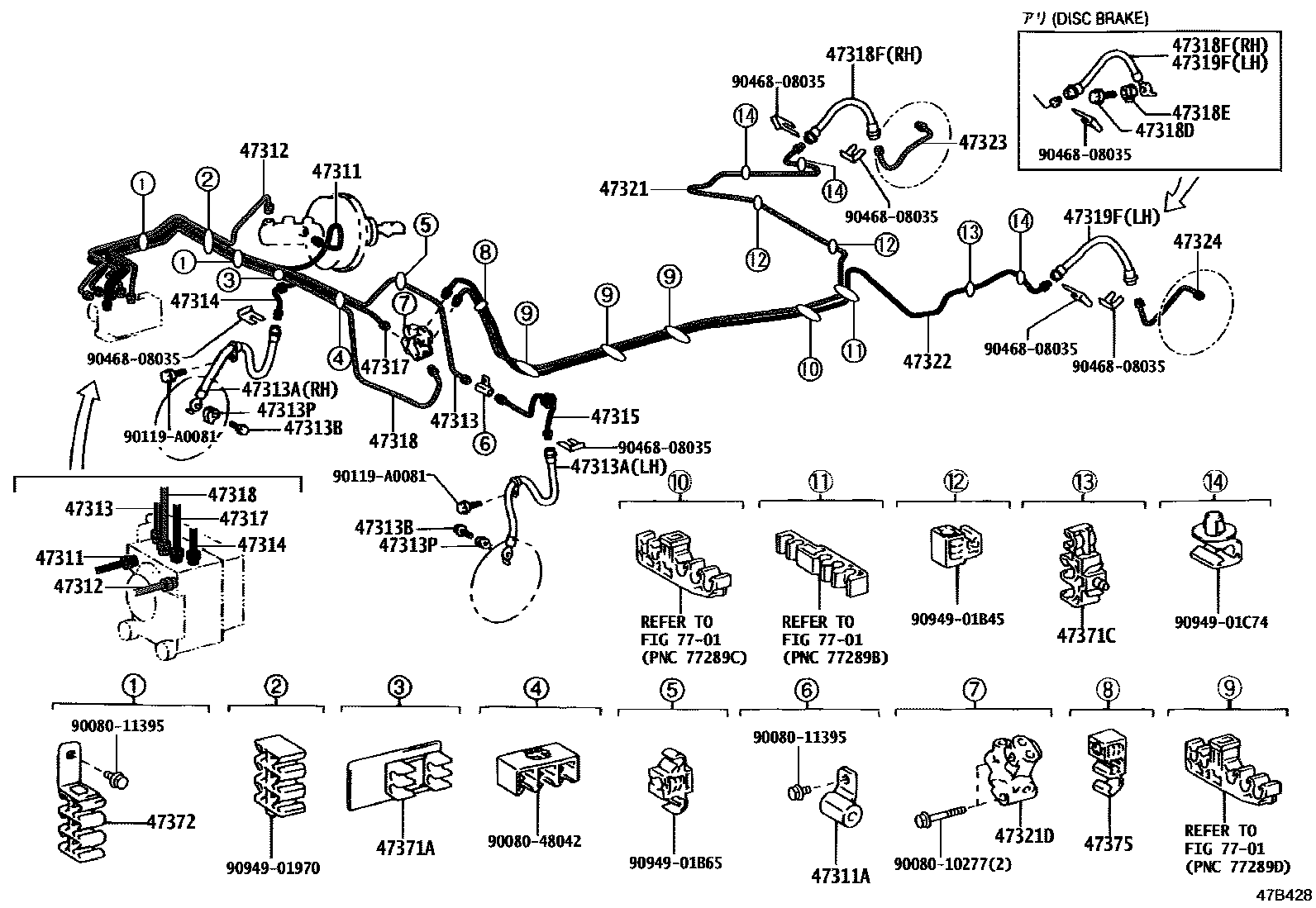

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47311-01050iZZE13#200205

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10167iZZE13#200205

47312TUBE, FRONT BRAKE, NO.2

main47312-01040iZZE13#200205

47313TUBE, FRONT BRAKE, NO.3

main47313-01040iZZE13#200205

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94136iZZE13#200205

main90080-94137iZZE13#200205

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZZE13#200205

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iZZE13#200205

47314TUBE, FRONT BRAKE, NO.4

main47314-01030iZZE13#200205

47315TUBE, FRONT BRAKE, NO.5

main47315-01040iZZE13#200205

47317TUBE, FRONT BRAKE, NO.7

main47317-01030iZZE13#200205

47318TUBE, FRONT BRAKE, NO.8

main47318-01030iZZE13#200205

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZZE137200205

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iZZE137200205

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94138iZZE137200205

main90080-94139iZZE136200205

main90947-02C25iZZE138200205

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94138iZZE137200205

main90080-94139iZZE136200205

main90947-02C25iZZE138200205

47321TUBE, REAR BRAKE, NO.1

main47321-01030iZZE138200205-200402

main47321-02130iZZE136,137200205-200402

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iZZE13#200205

47322TUBE, REAR BRAKE, NO.2

main47322-01030iZZE138200205-200402

main47322-02130iZZE136,137200205-200402

47323TUBE, REAR BRAKE, NO.3

main47323-01030iZZE136200205

main47323-01040iZZE138200205

47324TUBE, REAR BRAKE, NO.4

main47324-01030iZZE136200205

main47324-01040iZZE138200205

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12230iZZE13#200205

47371CCLAMP, BRAKE TUBE, NO.7

main77285-02020iZZE136,137200205-200402

47372CLAMP, BRAKE TUBE, NO.2

main47374-12050×2iZZE13#200205

47375CLAMP, BRAKE TUBE, NO.5

main77299-32030iZZE13#200205-200402

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008010277

main90080-10277

9008011395

main90080-11395

9008048042

main90080-48042

90119A0081

main90119-A0081

9046808035

main90468-08035

9094901970

main90949-01970

9094901B45

main90949-01B45

9094901B65

main90949-01B65

9094901C74

main90949-01C74

34 parts on this diagram · 3 diagrams in section
