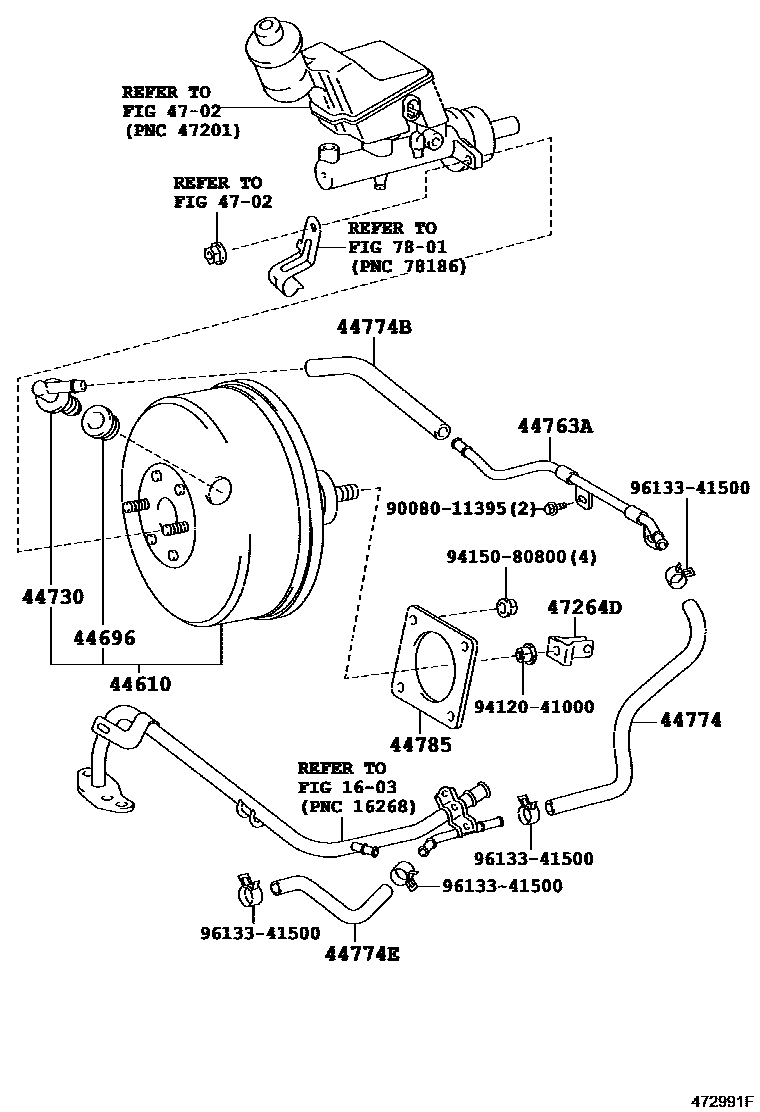

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

44610BOOSTER ASSY, BRAKE

main44610-01050iZZE13#200205

44696GROMMET, CHECK VALVE

main90480-24439iZZE13#200205

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZZE13#200205-200402

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12340iZZE13#200205

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12420iZZE136,138200205

main44774-12430iZZE137200205

44774BHOSE, UNION TO CONNECTOR TUBE

main95446-09180iZZE13#200205

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-20310iZZE136,138200205

44785GASKET, BRAKE BOOSTER

main44785-02010iZZE13#200205

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iZZE13#200205

7801ACCELERATOR LINK

→ Go to FIG 78-01

9008011395

main90080-11395

9412041000

main94120-41000

9415080800

main94150-80800

9613341500

main96133-41500

16 parts on this diagram · 2 diagrams in section
