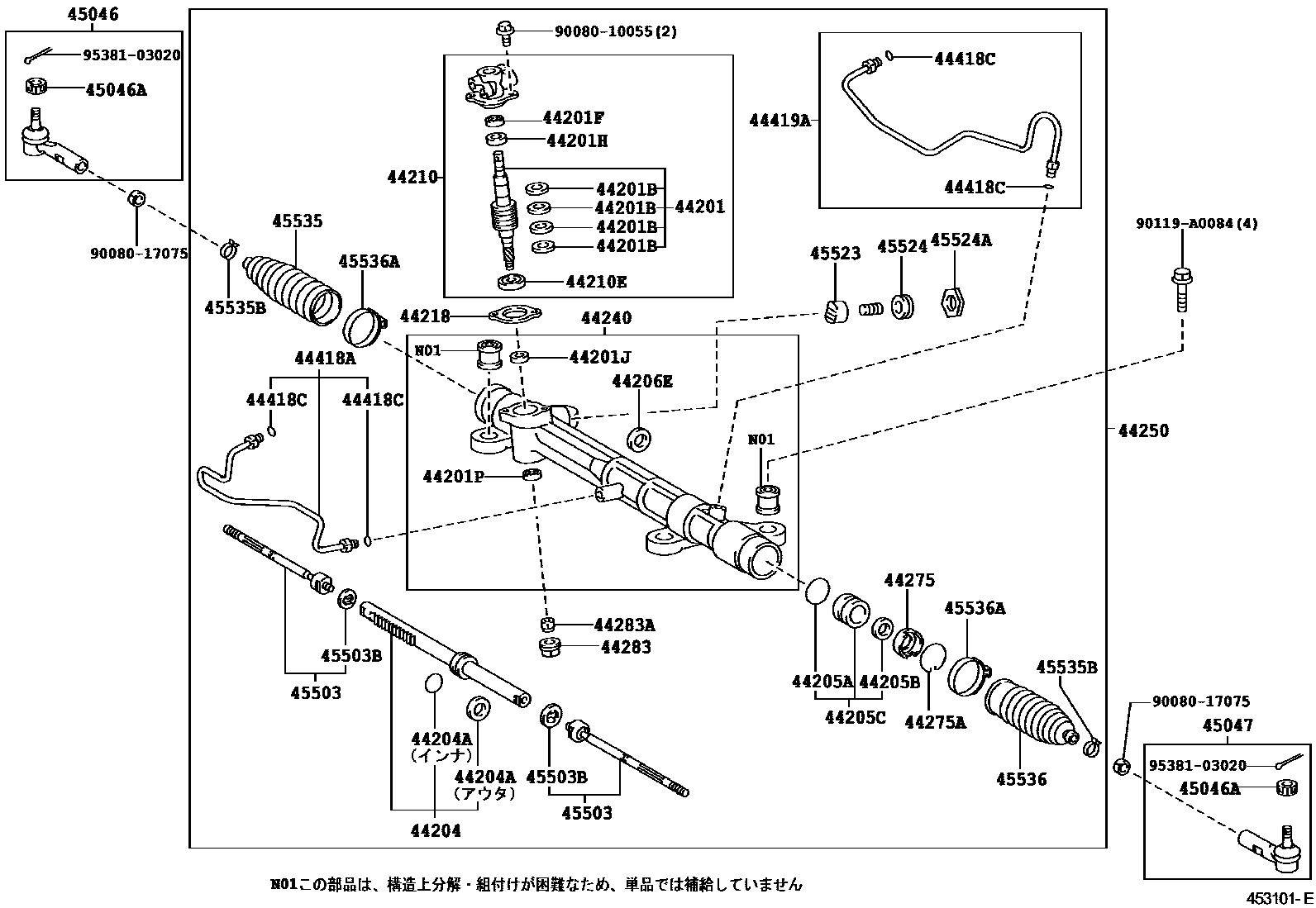

FRONT STEERING GEAR & LINK
44201VALVE SUB-ASSY, POWER STEERING CONTROL
44201BSPACER(FOR POWER STEERING CONTROL VALVE)
44201FSEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44201HBEARING(FOR POWER STEERING CONTROL VALVE UPPER)
44201JBEARING(FOR POWER STEERING CONTROL VALVE CENTER)
44201PBEARING(FOR POWER STEERING CONTROL VALVE LOWER)
44204RACK SUB-ASSY, POWER STEERING
44204ARING(FOR RACK STEERING PISTON)
44205ARING, O(FOR CYLINDER END STOPPER)
44205BSEAL, OIL(FOR CYLINDER END STOPPER)
44205CBUSH SUB-ASSY, POWER STEERING RACK
44206ESEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
44210VALVE ASSY, POWER STEERING CONTROL
44210ESEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44218GASKET, VALVE HOUSING
44240HOUSING ASSY, POWER STEERING RACK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44275STOPPER, CYLINDER END
44275ARING, HOLE SNAP(FOR CYLINDER END STOPPER)
44283CAP, RACK HOUSING
44283ANUT(FOR RACK HOUSING CAP)
44418ATUBE, STEERING RIGHT TURN PRESSURE
44418CRING, O(FOR STEERING TURN PRESSURE TUBE)
44419ATUBE, STEERING LEFT TURN PRESSURE
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45503END SUB-ASSY, STEERING RACK
45503BWASHER, CLAW(FOR STEERING RACK END)
45523GUIDE, RACK(FOR STEERING GEAR)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9008010055
main90080-10055
9008017075
main90080-17075
90119A0084
main90119-A0084
9538103020
main95381-03020
40 parts on this diagram · 3 diagrams in section
