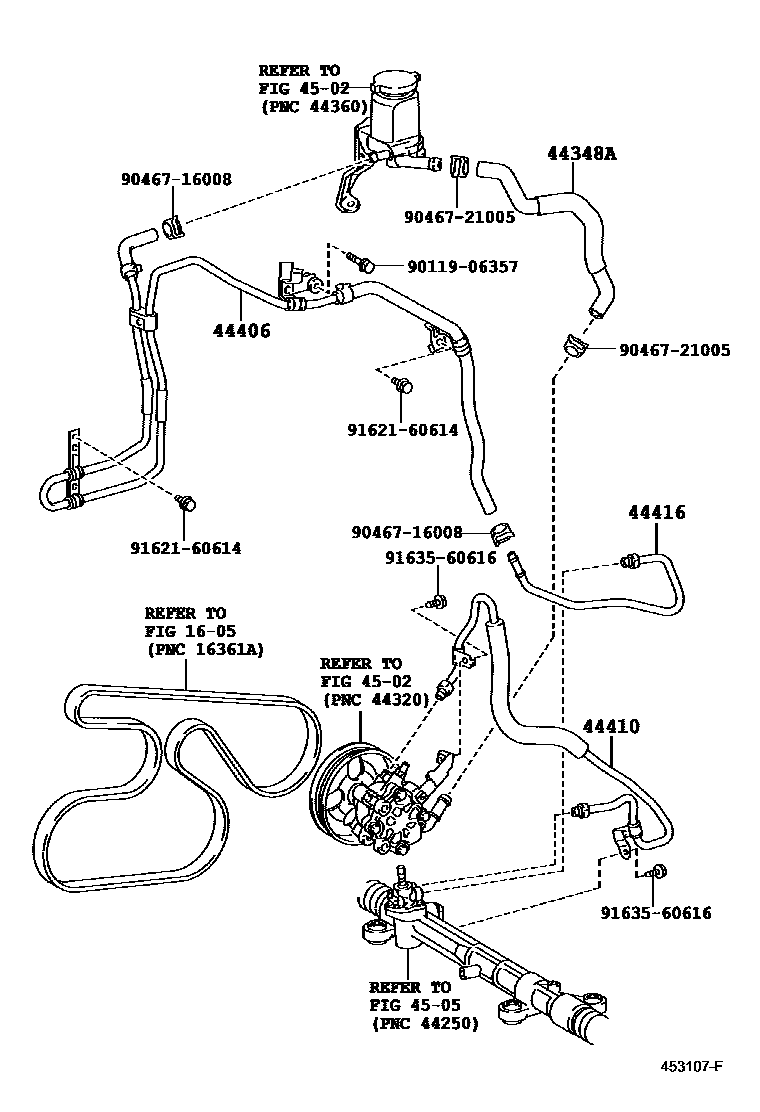

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-02050iZZE13#200205

44406TUBE SUB-ASSY, RETURN

main44406-01020iZZE138200205

main44406-01030iZZE136,137200205

44410TUBE ASSY, PRESSURE FEED

main44410-01040iZZE136,137200205

main44410-01050iZZE138200205

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-01020iZZE136,137200205

main44416-01030iZZE138200205

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906357

main90119-06357

9046716008

main90467-16008

9046721005

main90467-21005

9162160614

main91621-60614

9163560616

main91635-60616

12 parts on this diagram · 2 diagrams in section
