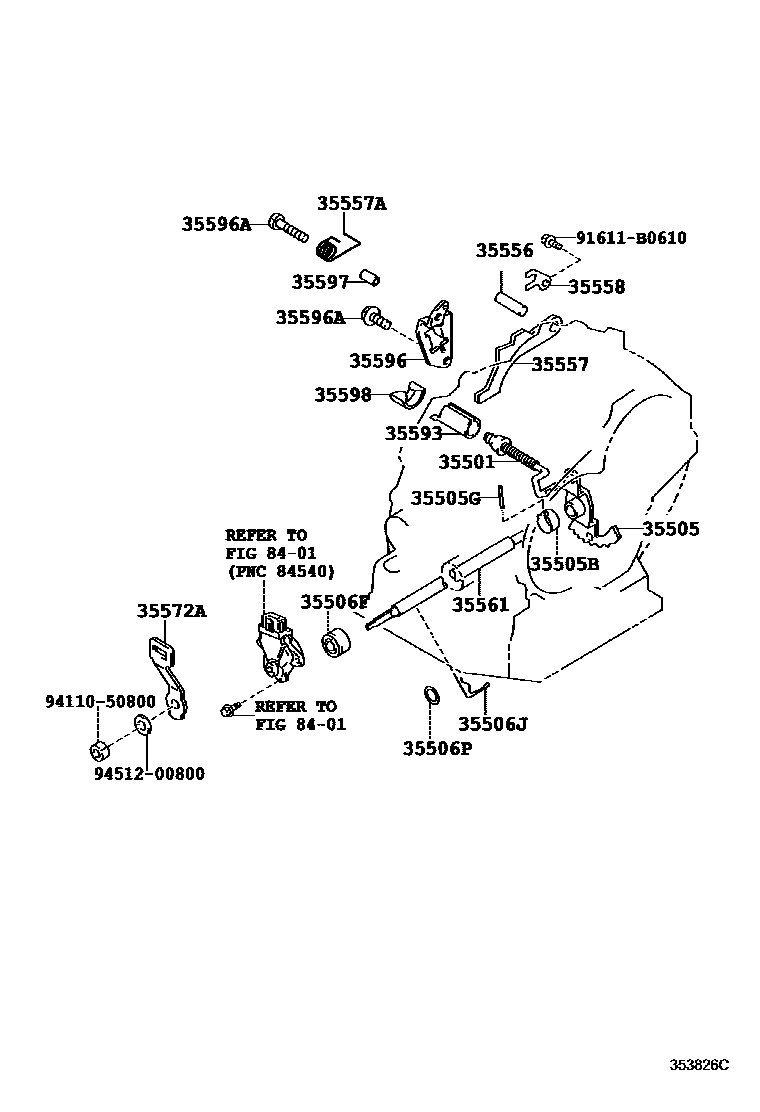

THROTTLE LINK & VALVE LEVER (ATM)
35501ROD SUB-ASSY, PARKING LOCK
35505LEVER SUB-ASSY, MANUAL VALVE
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35561SHAFT, MANUAL VALVE LEVER
35572ALEVER, TRANSMISSION CONTROL SHAFT
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
35597SLEEVE, SPRING GUIDE
35598SLEEVE, PARKING LOCK
8401SWITCH & RELAY & COMPUTER
91611B0610
main91611-B0610
9411050800
main94110-50800
9451200800
main94512-00800
22 parts on this diagram · 3 diagrams in section
