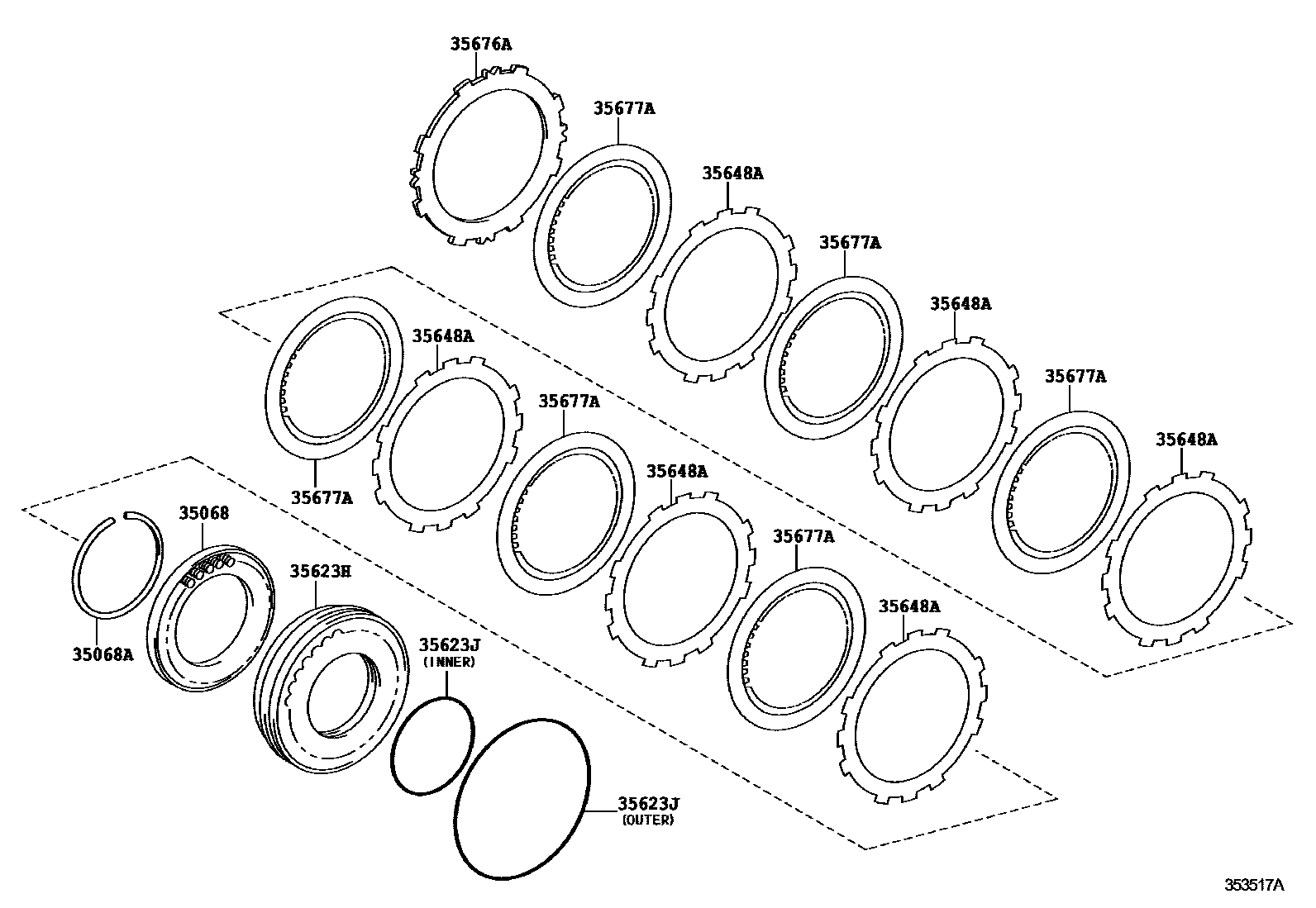

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A246E 0002 1U240E 0003 1U341F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iZZE136200205-200402

main35068-21010iZZE137..4FC200205-200402

main35068-52030iZZE138200205-200402

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iZZE136200205-200402

main90520-99035iZZE137..4FC200205-200402

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030iZZE136200205-200402

main35623-48010iZZE137..4FC200205-200402

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004iZZE136200205-200402

main90301-99096iZZE137..4FC200205-200402

main90301-99098iZZE137..4FC200205-200402

main90301-99131iZZE136200205-200402

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020×6iZZE136200205-200402

main35692-21010×5iZZE137..4FC200205-200402

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iZZE137..4FC200205-200402

main35678-21020iZZE137..4FC200205-200402

main35678-21030iZZE137..4FC200205-200402

main35678-21040iZZE137..4FC200205-200402

main35678-21050iZZE137..4FC200205-200402

main35678-21060iZZE137..4FC200205-200402

main35678-21070iZZE137..4FC200205-200402

main35678-21080iZZE137..4FC200205-200402

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32080×6iZZE136200205-200402

main35682-21010×5iZZE137..4FC200205-200402

7 parts on this diagram · 3 diagrams in section
