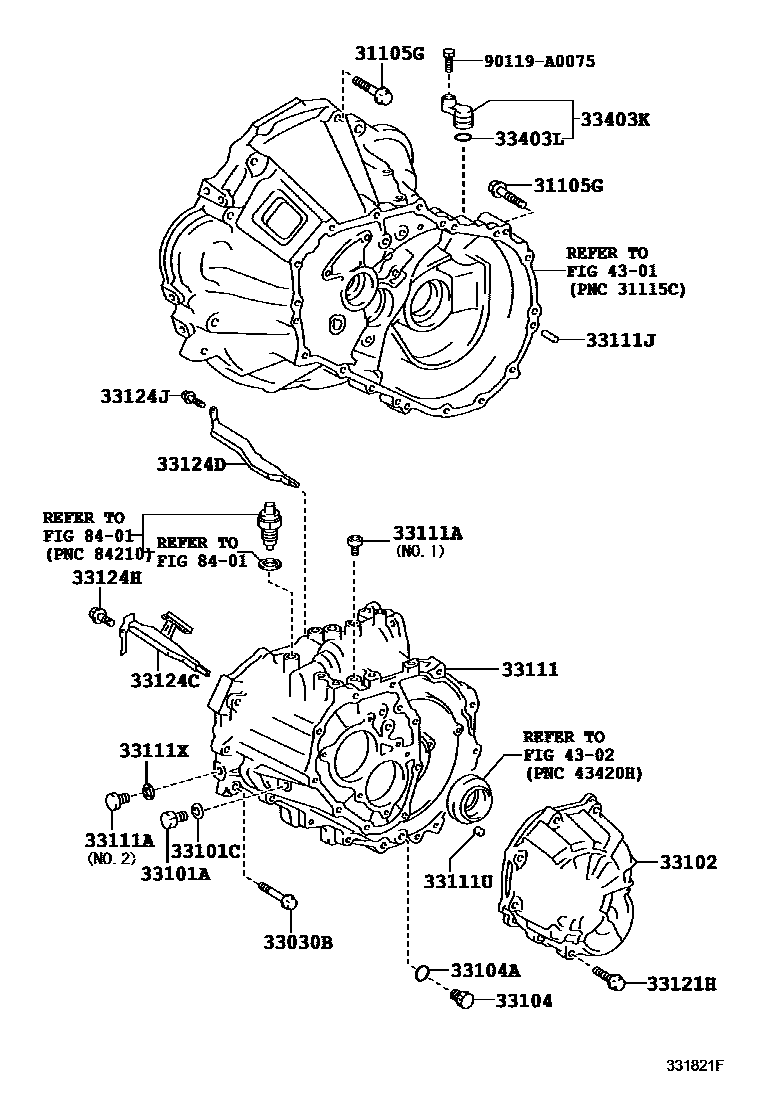

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90080-11423×2iZZE137..6F200205

main90119-A0076×2iZZE137..6F200303

main91642-81055×2iZZE137..6F200205-200303

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×3iZZE137..6F200205-200402

main90105-08353×13iZZE137..6F200205-200402

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18038iZZE137..6F200205-200402

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iZZE137..6F200205-200402

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-20050iZZE137..6F200205-200402

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iZZE137..6F200205-200402

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iZZE137..6F200205-200402

33111CASE, MANUAL TRANSMISSION

main33111-12230iZZE137..6F200205-200301

main33111-12231iZZE137..6F200301-200402

33111APLUG, MANUAL TRANSMISSION CASE

main90341-10065iZZE137..6F200205-200402

main90341-18023iZZE137..6F200205-200402

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iZZE137..6F200205-200402

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iZZE137..6F200205-200402

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iZZE137..6F200205-200402

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main91611-60835×9iZZE137..6F200205-200402

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iZZE137..6F200205-200402

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-20060iZZE137..6F200205-200402

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iZZE137..6F200205-200402

33124JBOLT, W/WASHER

main91611-G0820iZZE137..6F200205-200402

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iZZE137..6F200205

33403LRING, O

main96711-24030iZZE137..6F200205

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0075

main90119-A0075

23 parts on this diagram · 1 diagram in section
