IGNITION COIL & SPARK PLUG / GLOW PLUG

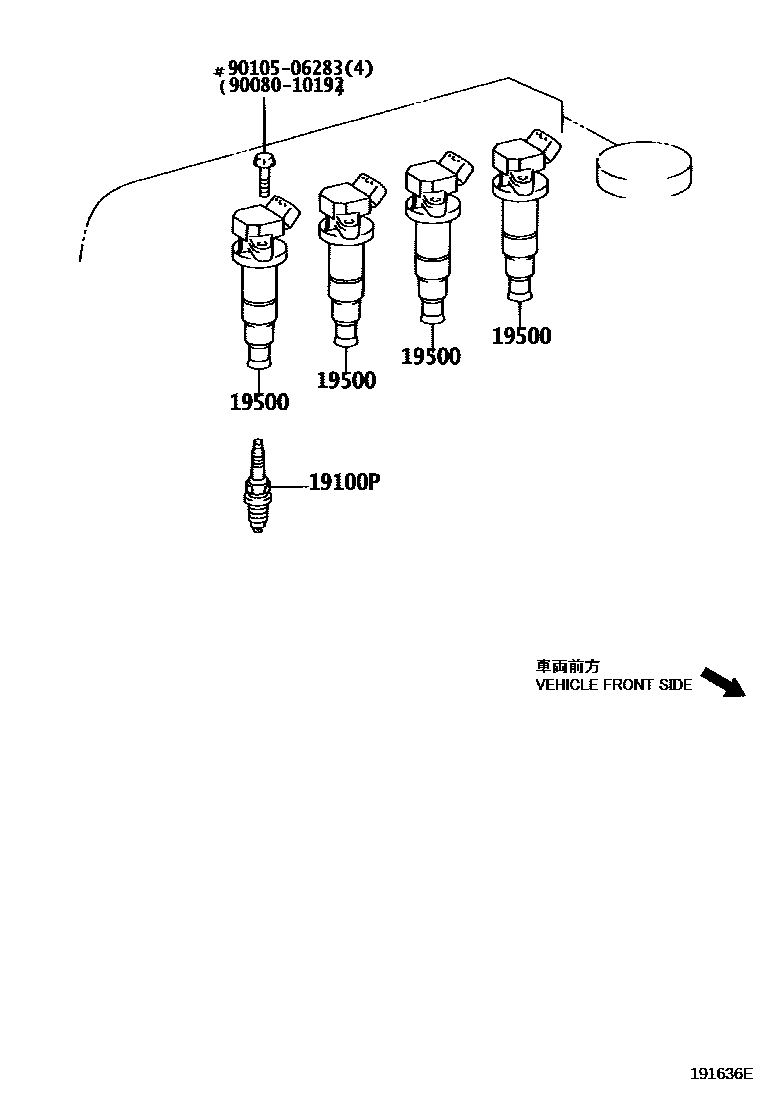

Parts diagram
19100PPLUG, SPARK
main90080-91184i200205-200402
main90919-01210i200205-200301
main90919-01211i200205-200301
main90919-01217i200205-200402
main90919-01217i200205-200304
main90919-01218i200205-200304
main90919-01237i200301-200402
sub90919-01210
main90919-01240i200304-200402
19500COIL ASSY, IGNITION
main90080-19015i200205-200402
sub90919-02262
main90919-02238i200205-200402
main90919-02239i200205-200402
sub90919-02262
9008010192
main90080-10192
9010506283
main90105-06283

4 parts on this diagram · 2 diagrams in section
