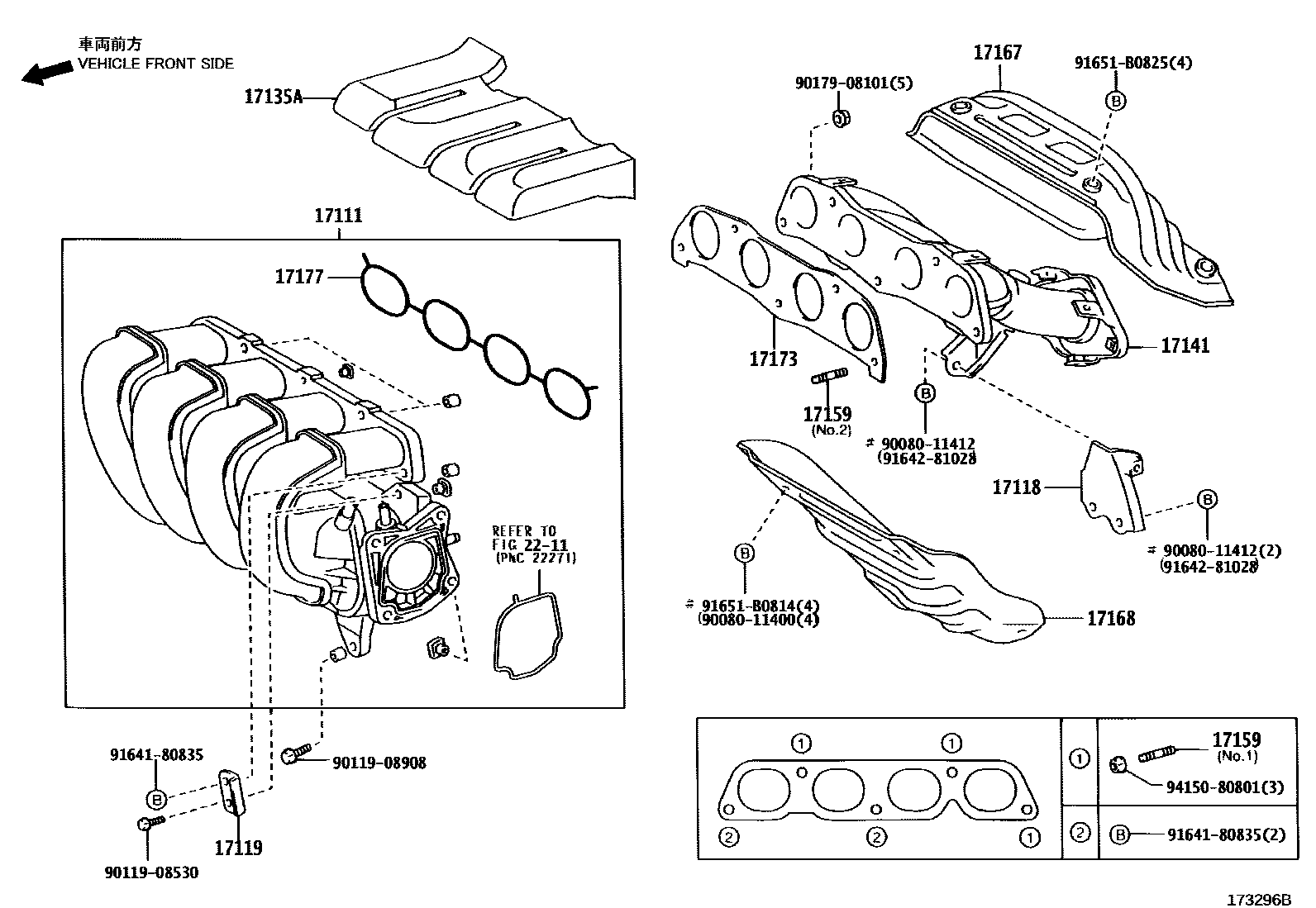

MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
2211
9008011400
main90080-11400
9008011412
main90080-11412
9011908530
main90119-08530
9011908908
main90119-08908
9017908101
main90179-08101
9164180835
main91641-80835
9164281028
main91642-81028
91651B0814
main91651-B0814
91651B0825
main91651-B0825
9415080801
main94150-80801
21 parts on this diagram · 3 diagrams in section
