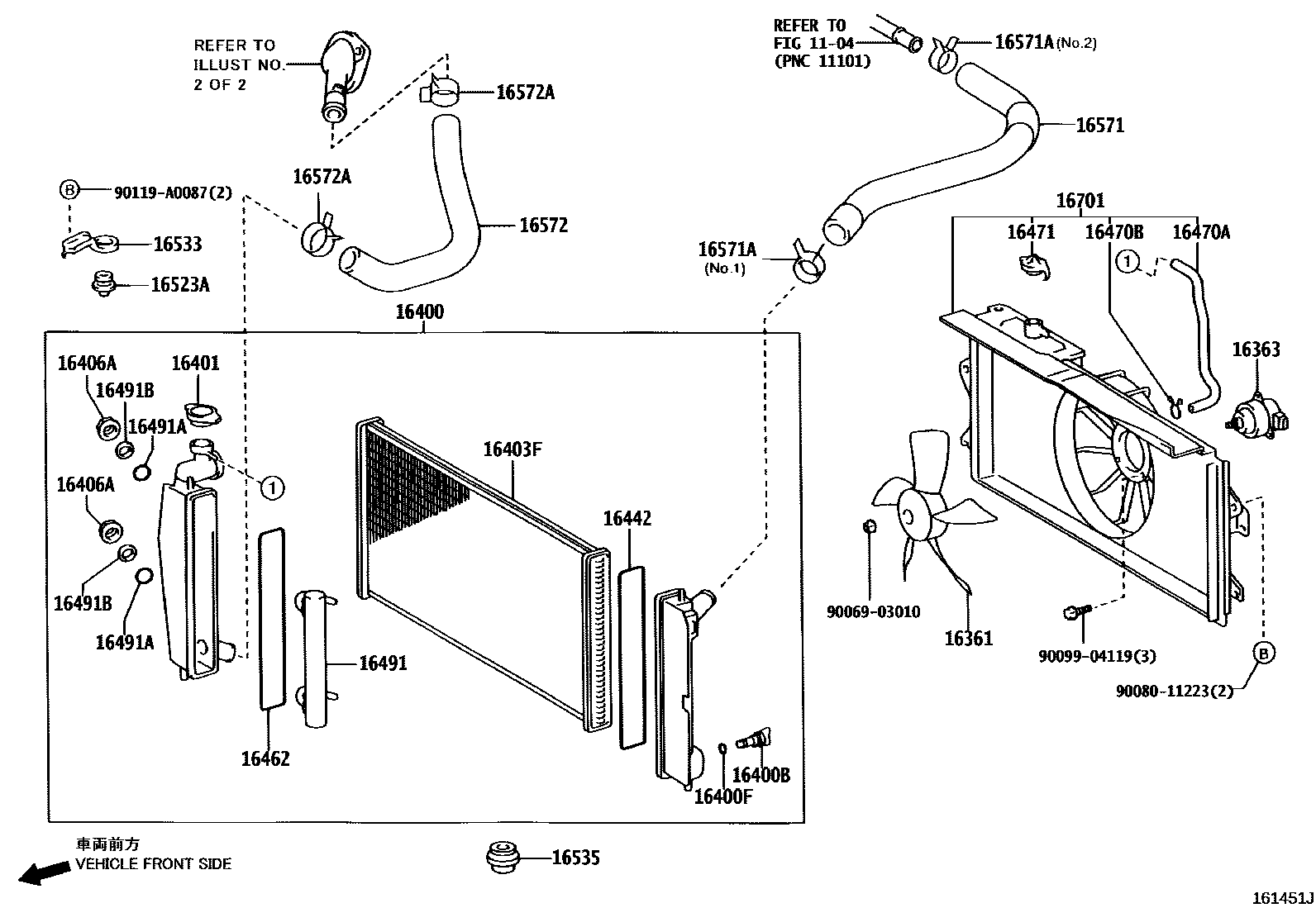

RADIATOR & WATER OUTLET
1104
16361FAN
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-20353
16403FCORE SUB-ASSY, RADIATOR
16406ASUPPORT(FOR OIL COOLER)
16442RING, O(FOR RADIATOR UPPER TANK)
16462RING, O(FOR RADIATOR LOWER TANK)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16491COOLER, OIL(FOR ATM)
16491ARING, O(FOR ATM OIL COOLER)
16491BWASHER, PLATE(FOR ATM OIL COOLER)
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
9006903010
main90069-03010
9008011223
main90080-11223
9009904119
main90099-04119
90119A0087
main90119-A0087
29 parts on this diagram · 4 diagrams in section
