VENTILATION HOSE

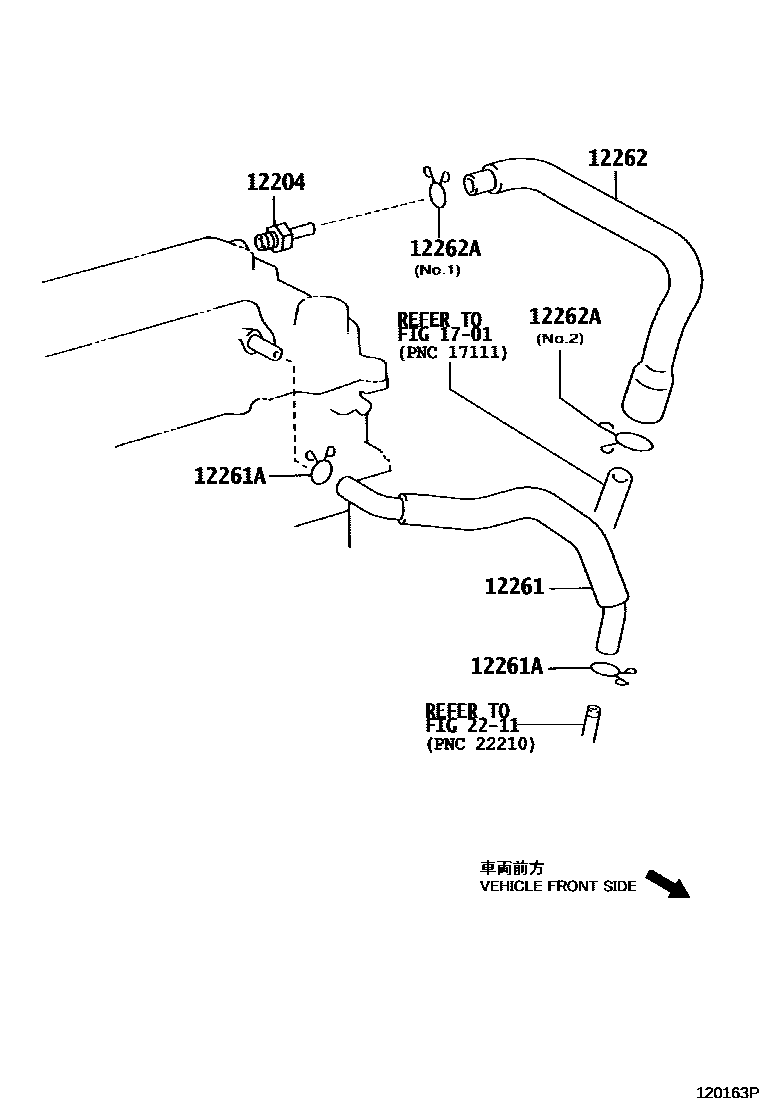

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-22040i200205-200402
sub12204-22041
main12204-22050i200205-200402
sub12204-22051
main12204-88600i200205-200402
12261HOSE, VENTILATION
main12261-0D050i200205-200402
sub12261-22050
main12261-22050i200205-200402
main12261-88601i200205-200402
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-24001i200205-200402
main90467-14037i200205-200402
main90467-21152i200205-200402
12262HOSE, VENTILATION, NO.2
main12262-0D070i200205-200402
main12262-22040i200205-200402
main12262-22090i200305-200402
main12262-88602i200205-200305
sub12262-22090
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90466-18002i200312-200402
main90467-13103i200205-200402
main90467-14001i200208-200402
main90467-19003i200205-200402
main90467-19019i200205-200402
main90467-21010i200205-200402
main96132-51300i200205-200402
1701
2211

7 parts on this diagram · 2 diagrams in section
