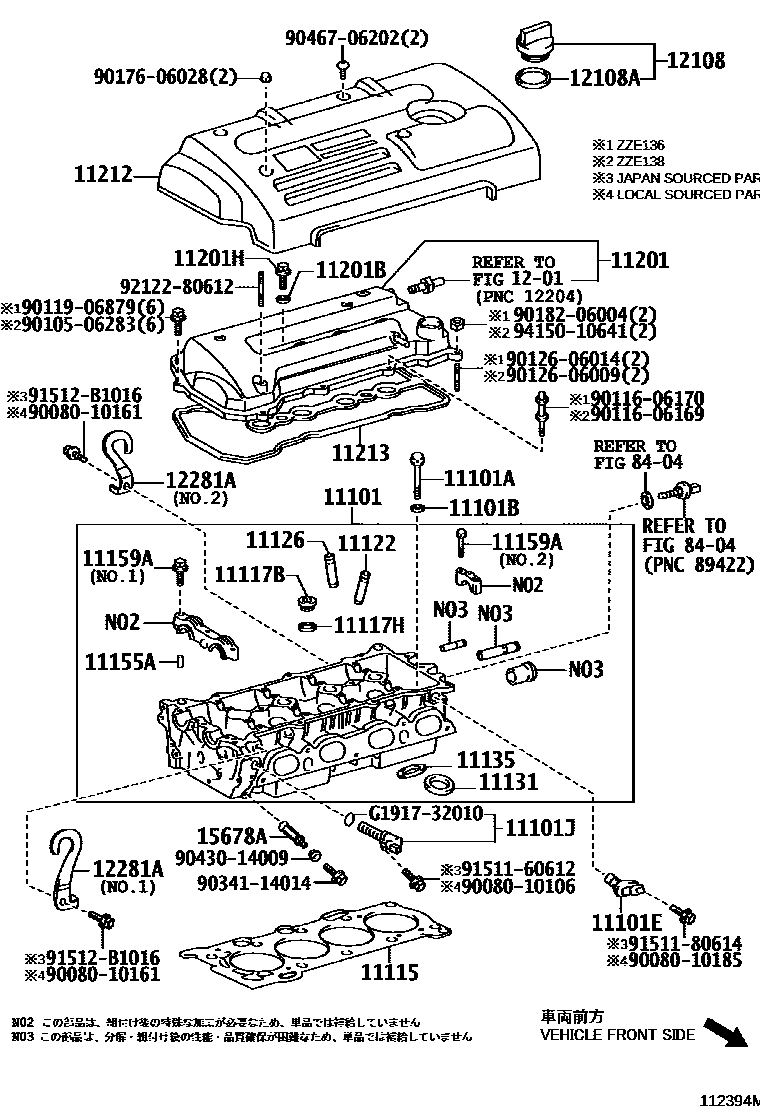

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0D010i1ZZFE..ZZE136200205-200402

sub11101-0D011

main11101-0D011i1ZZFE..ZZE136200206-200210

sub11101-0D010

main11101-22070i1ZZFE..ZZE138200205-200206

sub11101-22071

main11101-22071i1ZZFE..ZZE138200206-200402

sub11101-22111

sub13711-22040

main11101-29465i2ZZGE..ZZE137200205-200303

sub11101-29505

main11101-29475i2ZZGE..ZZE137200305-200402

sub11101-29476

main11101-29505i2ZZGE..ZZE137200303-200305

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02140i2ZZGE..ZZE137200205-200402

main90910-02152i1ZZFE..ZZE136,138200205-200402

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i1ZZFE,2ZZGE..ZZE13#200205-200402

11101ESENSOR, CAM POSITION

main90080-19014i1ZZFE..ZZE136200205-200402

main90919-05007i2ZZGE..ZZE137200205-200402

main90919-05026i1ZZFE..ZZE138200205-200402

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-22020i2ZZGE..ZZE137200205-200212

sub15330-22060

main15330-22030i1ZZFE..ZZE136,138200205-200402

sub15330-22050

main15330-22040i2ZZGE..ZZE137200212-200402

sub15330-22060

11115GASKET, CYLINDER HEAD

main11115-22040i1ZZFE..ZZE136,138200205-200207

sub11115-22041

main11115-22041i1ZZFE..ZZE136,138200207-200302

sub11115-22050

main11115-22050i1ZZFE..ZZE136,138200302-200402

main11115-22060i2ZZGE..ZZE137200205-200402

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-20002i1ZZFE..ZZE138200206-200402

11117HGASKET(FOR WATER HOLE)

main90430-20004i1ZZFE..ZZE138200206-200402

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i1ZZFE..ZZE136,138200205-200302

sub11122-22040

main11122-88600i2ZZGE..ZZE137200205-200402

main11123-20020i1ZZFE..ZZE136,138200205-200302

main11123-88600i2ZZGE..ZZE137200205-200402

11126BUSH, EXHAUST VALVE GUIDE

main11122-20020i1ZZFE..ZZE136,138200205-200302

sub11122-22040

main11122-88600i2ZZGE..ZZE137200205-200402

main11123-20020i1ZZFE..ZZE136,138200205-200302

main11123-88600i2ZZGE..ZZE137200205-200402

11131SEAT, INTAKE VALVE

main11131-22021i1ZZFE..ZZE136200205-200402

main11131-88601i2ZZGE..ZZE137200205-200402

main11132-88601i2ZZGE..ZZE137200205-200402

11135SEAT, EXHAUST VALVE

main11135-22021i1ZZFE..ZZE136200205-200402

main11135-88601i2ZZGE..ZZE137200205-200402

main11136-88601i2ZZGE..ZZE137200205-200402

11155APIN, RING W/HEAD

main90250-05021i2ZZGE..ZZE137200205-200402

main90250-06001i1ZZFE..ZZE138200206-200402

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90080-11414i1ZZFE..ZZE136200210-200402

main90080-11415i1ZZFE..ZZE136200210-200402

main90109-06080i1ZZFE..ZZE138200206-200402

main90119-07001i2ZZGE..ZZE137200205-200402

main90119-07002i2ZZGE..ZZE137200205-200402

main90119-08A29i1ZZFE..ZZE138200206-200402

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0D030i1ZZFE..ZZE136200205-200402

main11201-22060i1ZZFE..ZZE138200205-200402

main11201-88600i2ZZGE..ZZE137200205-200402

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1ZZFE..ZZE136,138200205-200402

11201HBOLT(FOR CYLINDER HEAD COVER)

main90105-06202i1ZZFE..ZZE136,138200205-200402

11212COVER, CYLINDER HEAD, NO.2

main11212-0D020i1ZZFE..ZZE136,138200205-200402

main11212-22120i2ZZGE..ZZE137200205-200402

sub11212-22906

11213GASKET, CYLINDER HEAD COVER

main11213-0D040i1ZZFE..ZZE136200205-200402

main11213-22050i1ZZFE..ZZE138200205-200402

main11213-88600i2ZZGE..ZZE137200205-200402

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H010i1ZZFE..ZZE136200205-200402

sub12180-0H011

main12180-21010i2ZZGE..ZZE137200205-200402

main12180-21021i1ZZFE..ZZE138200205-200402

12108AGASKET(FOR OIL FILLER CAP)

main90080-43025i1ZZFE..ZZE136200205-200402

sub90430-35001

main90430-37140i1ZZFE,2ZZGE..ZZE137,138200205-200402

12281AHANGER, ENGINE, NO.1

main12281-0D010i1ZZFE..ZZE136200205-200402

main12281-15040i1ZZFE..ZZE136200205-200402

main12281-15050i1ZZFE..ZZE138200205-200402

main12281-22021i1ZZFE..ZZE136,138200205-200402

main12281-88600i2ZZGE..ZZE137200205-200402

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1ZZFE,2ZZGE..ZZE13#200205-200402

main15678-46010i2ZZGE..ZZE137200205-200402

sub15678-32010

sub15678-46020

8404

9008010106

main90080-10106

9008010161

main90080-10161

9008010185

main90080-10185

9010506283

main90105-06283

9011606169

main90116-06169

9011606170

main90116-06170

9011906879

main90119-06879

9012606009

main90126-06009

9012606014

main90126-06014

9017606028

main90176-06028

9018206004

main90182-06004

9034114014

main90341-14014

9043014009

main90430-14009

9046706202

main90467-06202

9151160612

main91511-60612

9151180614

main91511-80614

91512B1016

main91512-B1016

9212280612

main92122-80612

9415010641

main94150-10641

G191732010

mainG1917-32010

45 parts on this diagram · 2 diagrams in section
