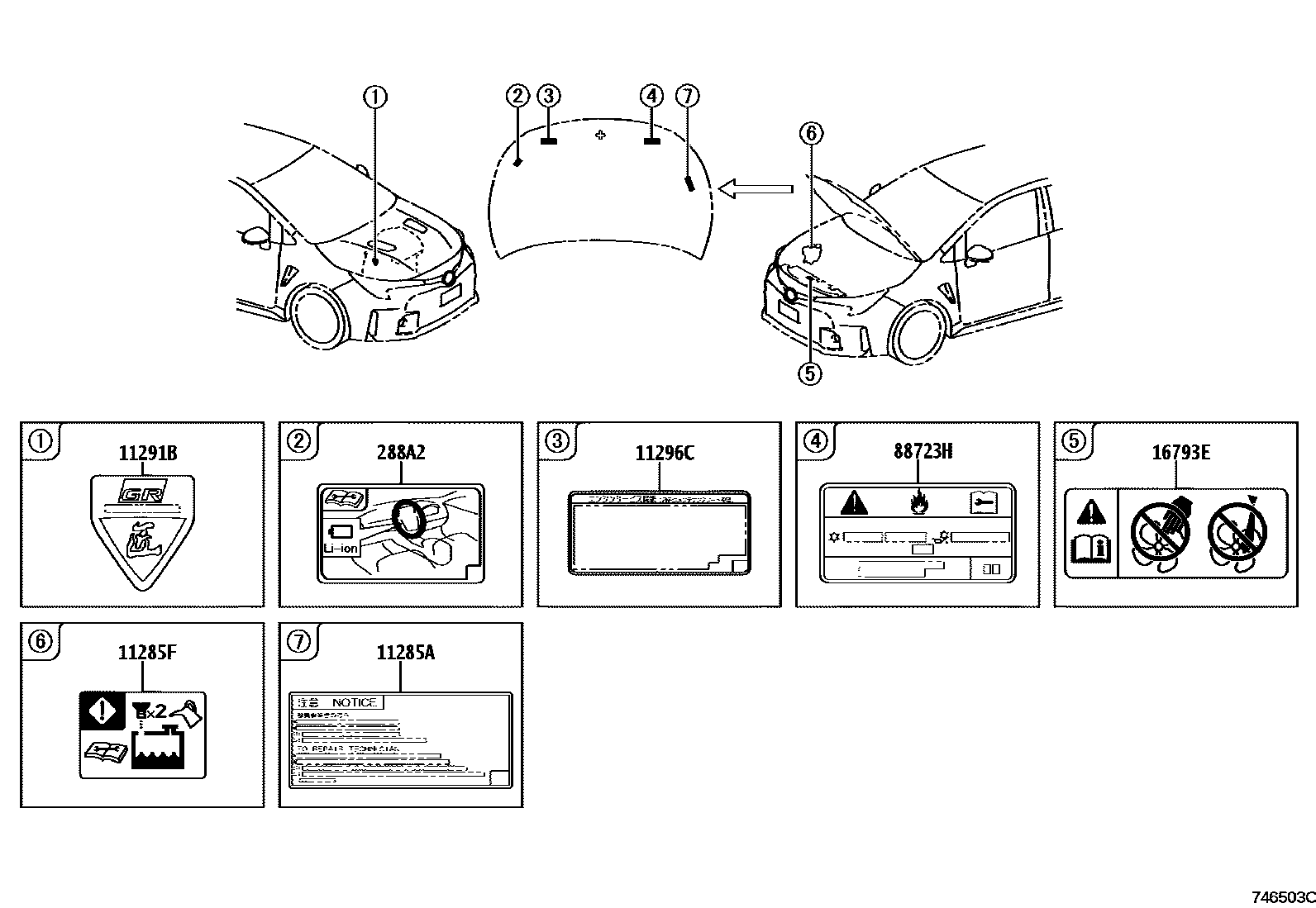

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1�������� 0002 1���������

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-47010iG16EGTS..GZEA14202212-202407

11285FLABEL, COOLANT SYSTEM CAUTION

11291BPLATE, ENGINE NAME

main11291-18030iG16EGTS..GZEA14..02S202212-202304

main11291-18050iG16EGTS..GZEA14202402-202409

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-18010iG16EGTS..GZEA14..05S202212-202409

16793ELABEL, COOLING FAN CAUTION

main16793-36030iG16EGTS..GZEA14..02S202212-202304

288A2LABEL, BATTERY LOCATION

main288A2-15050iG16EGTS..GZEA14..02S202212-202304

88723HLABEL, COOLER SERVICE CAUTION

main88723-76130iGZEA14..02S202212-202304

7 parts on this diagram · 2 diagrams in section
