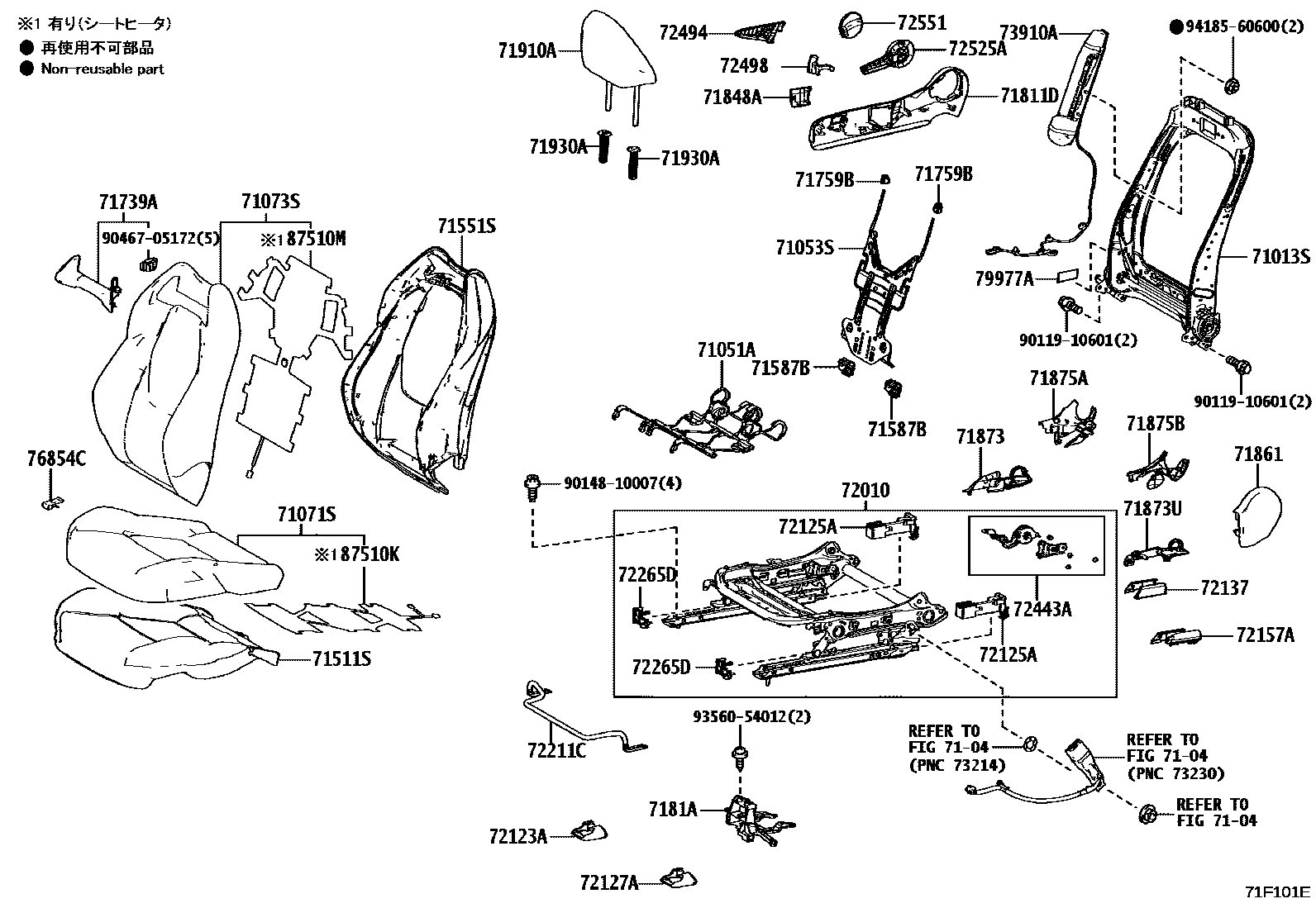

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������� 0003 1������ 0004 1������� 0005 1������ (������������) 0006 1������� (������������)

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-12820iGZEA14..02S202212-202304

main71013-33390iGZEA14..05S202212-202409

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-12100iGZEA14..02S202212-202304

main71051-47090iGZEA14..05S202212-202409

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iGZEA14..05S202212-202409

main71441-12110iGZEA14..02S202212-202304

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1AK30-C4iGZEA14..05S202212-202309

BLACK/GRAY,TRIM2#

main71071-1AK30-C4iGZEA14202309-202409

BLACK/GRAY,TRIM20

main71071-1AK30-C5iGZEA14..05S202212-202409

BLACK/RED,TRIM3#

main71071-1AK30-C8iGZEA14202309-202409

BLACK/BLUE NO.121,TRIM21

main71071-1AS60-C3iGZEA14..02S202212-202304

BLACK/RED,TRIM3#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1AP30-C2iGZEA14202309-202409

BLACK/GRAY,TRIM20

main71073-1AP30-C2iGZEA14..05S202212-202309

BLACK/GRAY,TRIM2#

main71073-1AP30-C3iGZEA14..05S202212-202409

BLACK/RED,TRIM3#

main71073-1AP30-C4iGZEA14202309-202409

BLACK/BLUE NO.121,TRIM21

main71073-1AT70-C3iGZEA14..02S202212-202304

BLACK/RED,TRIM3#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12C90iGZEA14..05S202212-202409

main71511-12D60iGZEA14..02S202212-202304

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12E30iGZEA14..05S202212-202409

main71551-12E50iGZEA14..02S202212-202304

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-47010iGZEA14..02S202212-202409

71739ABEZEL, FRONT SEATBACK

main71739-12050iGZEA14..02S202212-202304

main71739-52030iGZEA14..05S202212-202409

71759BHOOK, FRONT SEATBACK

main71759-50040iGZEA14..05S202212-202409

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47140-C1iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

main71811-47140-C1iGZEA14..02S202212-202304

BLACK,TRIM3#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iGZEA14..02S202212-202409

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-10020-C0iGZEA14202309-202409

BLACK,TRIM2#,3#

main71848-47040-C1iGZEA14..02S202212-202304

BLACK,TRIM3#

main71848-47040-C1iGZEA14..05S202212-202309

BLACK,TRIM2#,3#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iGZEA14..02S202212-202304

BLACK,TRIM3#

main71861-47070-C1iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iGZEA14..05S202212-202409

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47080iGZEA14..02S202212-202409

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47040-C1iGZEA14..02S202212-202304

BLACK,TRIM3#

main71875-47040-C1iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47070-C1iGZEA14..02S202212-202304

BLACK,TRIM3#

main71875-47070-C1iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

71910AHEADREST ASSY, FRONT SEAT

main71910-12Q50-C5iGZEA14..05S202212-202409

BLACK/RED,TRIM3#

main71910-12Q50-C6iGZEA14..05S202212-202309

BLACK/GRAY,TRIM2#

main71910-12Q50-C6iGZEA14202309-202409

BLACK/GRAY,TRIM20

main71910-12Q50-C7iGZEA14202309-202409

BLACK/BLUE NO.121,TRIM21

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-47050-C5iGZEA14..05S202212-202409

main71931-47030-C4iGZEA14..05S202212-202409

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-12890iGZEA14..02S202212-202409

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47060iGZEA14..02S202212-202409

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-47010iGZEA14..02S202212-202409

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-47060iGZEA14..02S202212-202409

72137COVER, SEAT TRACK, OUTER RH

main72137-47060iGZEA14..02S202212-202409

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-47080iGZEA14..05S202212-202409

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050iGZEA14..02S202212-202409

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-47010iGZEA14..05S202212-202409

72443AGEAR, VERTICAL ADJUSTER, RH

main72443-47011iGZEA14..02S202212-202409

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-12080-C0iGZEA14202309-202409

BLACK,TRIM2#,3#

main72494-47030-C1iGZEA14..05S202212-202309

BLACK,TRIM2#,3#

main72494-47030-C1iGZEA14..02S202212-202304

BLACK,TRIM3#

72498COVER, VERTICAL ADJUSTER BRACKET

main72498-47010iGZEA14..02S202212-202409

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-33050-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

main72525-33050-C0iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

72551COVER, RECLINING HINGE, NO.1

main72551-33010-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

main72551-33010-C0iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-52200iGZEA14..02S202212-202409

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iGZEA14202407-202409

79977AFELT, SEATBACK

main79977-12090iGZEA14..02S202212-202409

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

87510MHEATER ASSY, FRONT SEATBACK, RH

9011910601

main90119-10601

9014810007

main90148-10007

9046705172

main90467-05172

9356054012

main93560-54012

9418560600

main94185-60600

44 parts on this diagram · 6 diagrams in section
