43211KNUCKLE, STEERING, RH

main43211-12520i202212-202304

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009i202212-202409

main90105-17010i202212-202409

main90105-17011i202212-202304

main90105-17021×2i202212-202304

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2i202212-202304

43212KNUCKLE, STEERING, LH

main43212-12470i202212-202304

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009i202212-202304

main90105-17010i202212-202409

main90105-17011i202212-202304

main90105-17021×2i202212-202304

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2i202212-202304

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19275i202212-202304

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003i202212-202304

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1225i202212-202304

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2i202212-202304

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19275i202212-202304

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003i202212-202304

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1225i202212-202304

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2i202212-202304

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12340i202212-202304

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16091i202212-202304

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main94151-21441i202212-202304

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180i202212-202304

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12340i202212-202304

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16091i202212-202304

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main94151-21441i202212-202304

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180i202212-202304

9538102525

main95381-02525

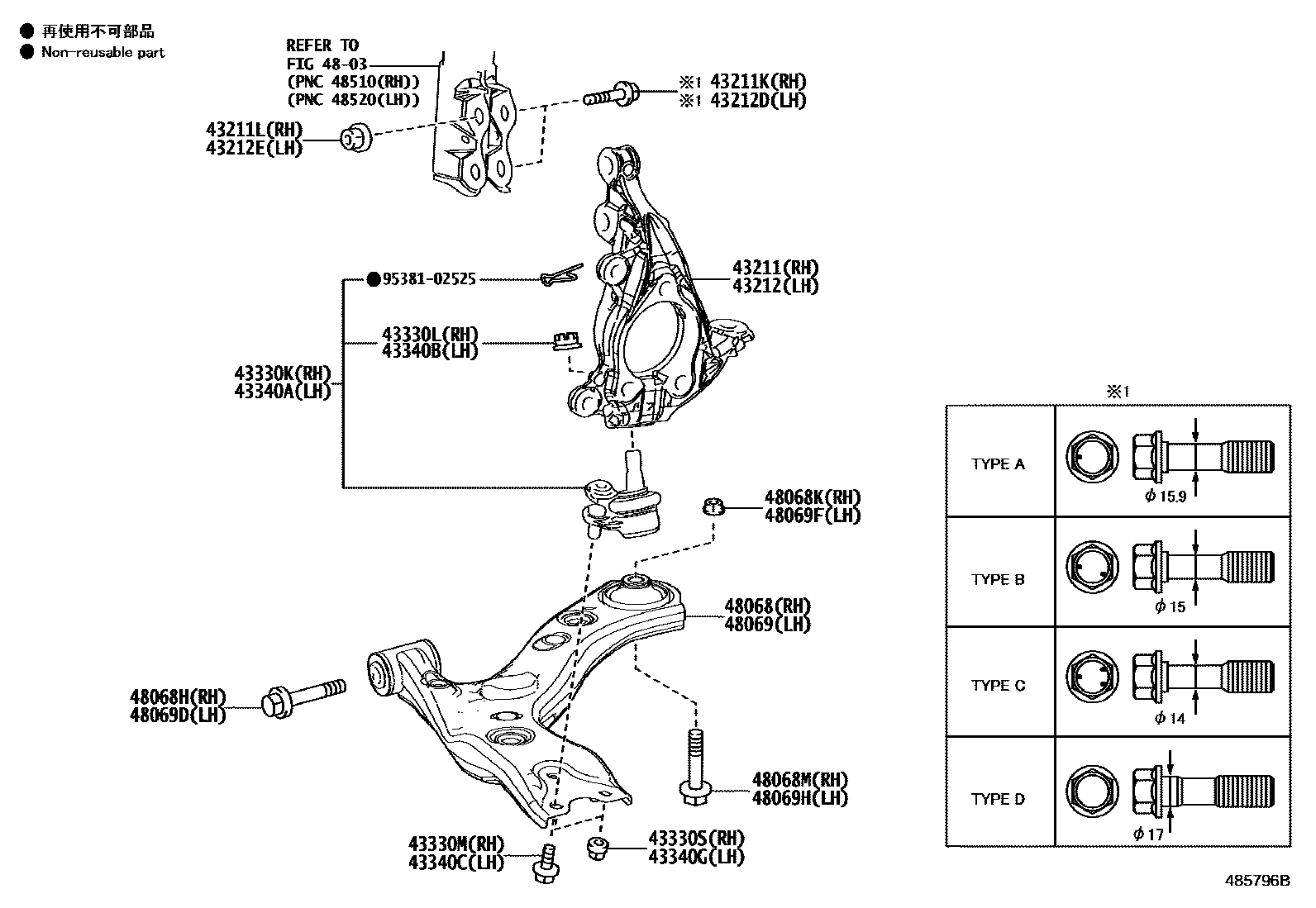

FRONT AXLE ARM & STEERING KNUCKLE
