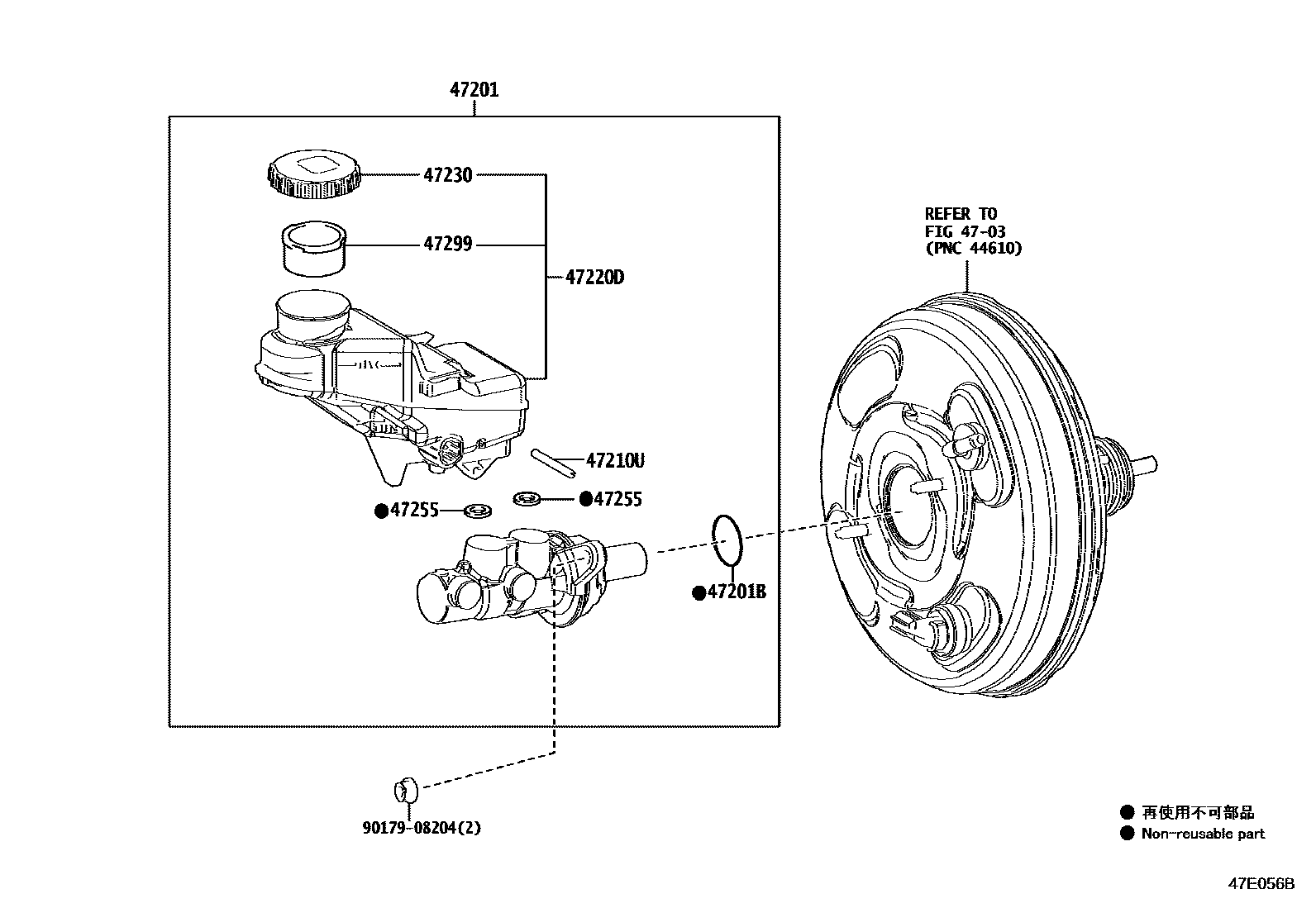

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12C70iGZEA14..02S202212-202304

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGZEA14..02S202212-202304

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGZEA14..02S202212-202304

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12360iGZEA14..02S202212-202304

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iGZEA14..02S202212-202304

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iGZEA14..02S202212-202304

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGZEA14..02S202212-202304

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
