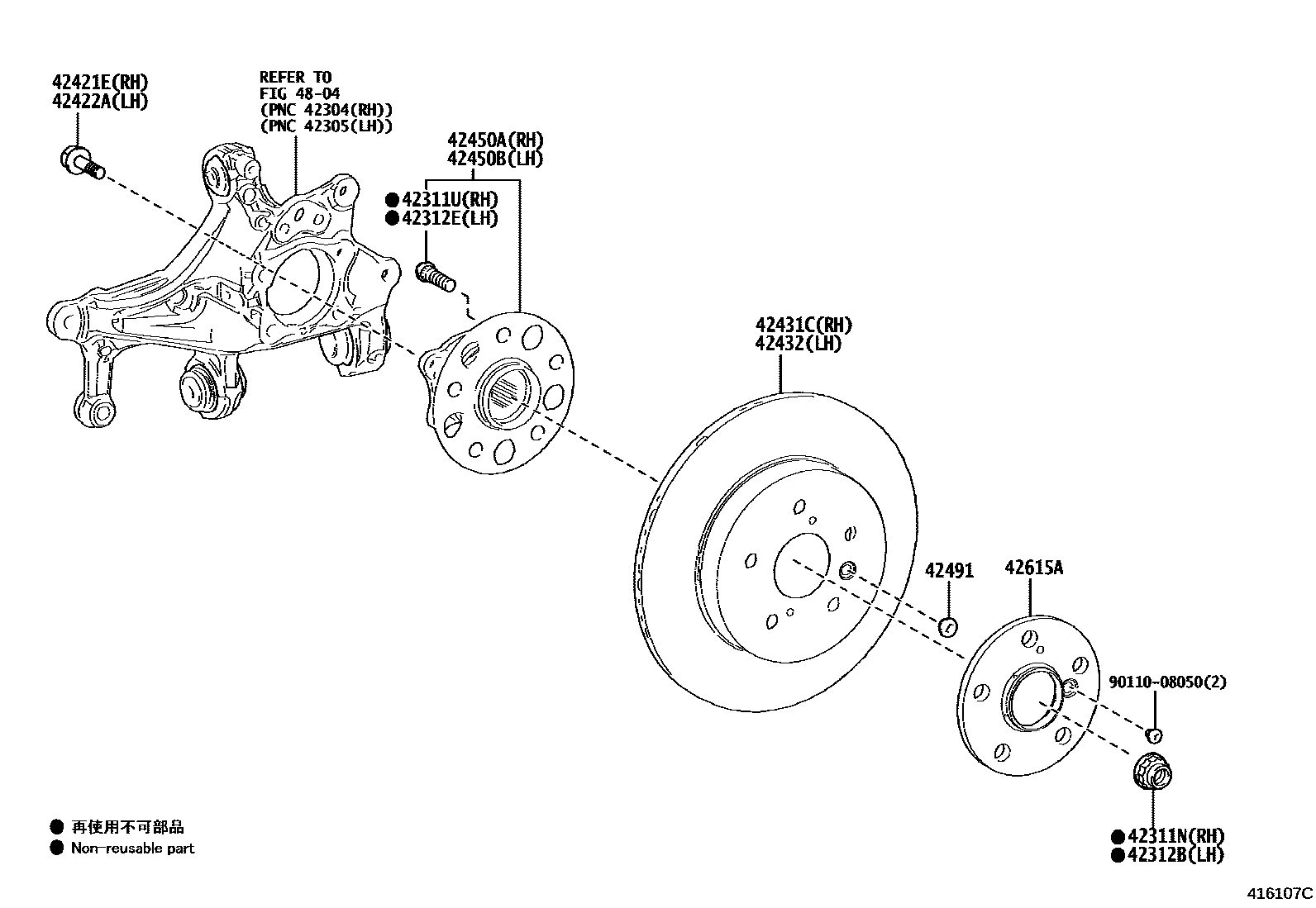

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iGZEA14..02S202212-202304

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02098×5iGZEA14..02S202212-202304

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iGZEA14..02S202212-202304

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02098×5iGZEA14..02S202212-202304

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iGZEA14..02S202212-202304

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iGZEA14..02S202212-202304

42431CDISC, REAR RH

main42431-52190iGZEA14..02S202212-202304

42432DISC, REAR LH

main42432-52010iGZEA14..02S202212-202304

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-12330iGZEA14..02S202212-202304

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-12330iGZEA14..02S202212-202304

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iGZEA14..02S202212-202304

42615ASPACER, DISK WHEEL

main42615-12010iGZEA14..02S202212-202304

main42615-12020×2supersedes 42615-12010iGZEA14202309-202409

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

9011008050

main90110-08050

14 parts on this diagram · 2 diagrams in section
