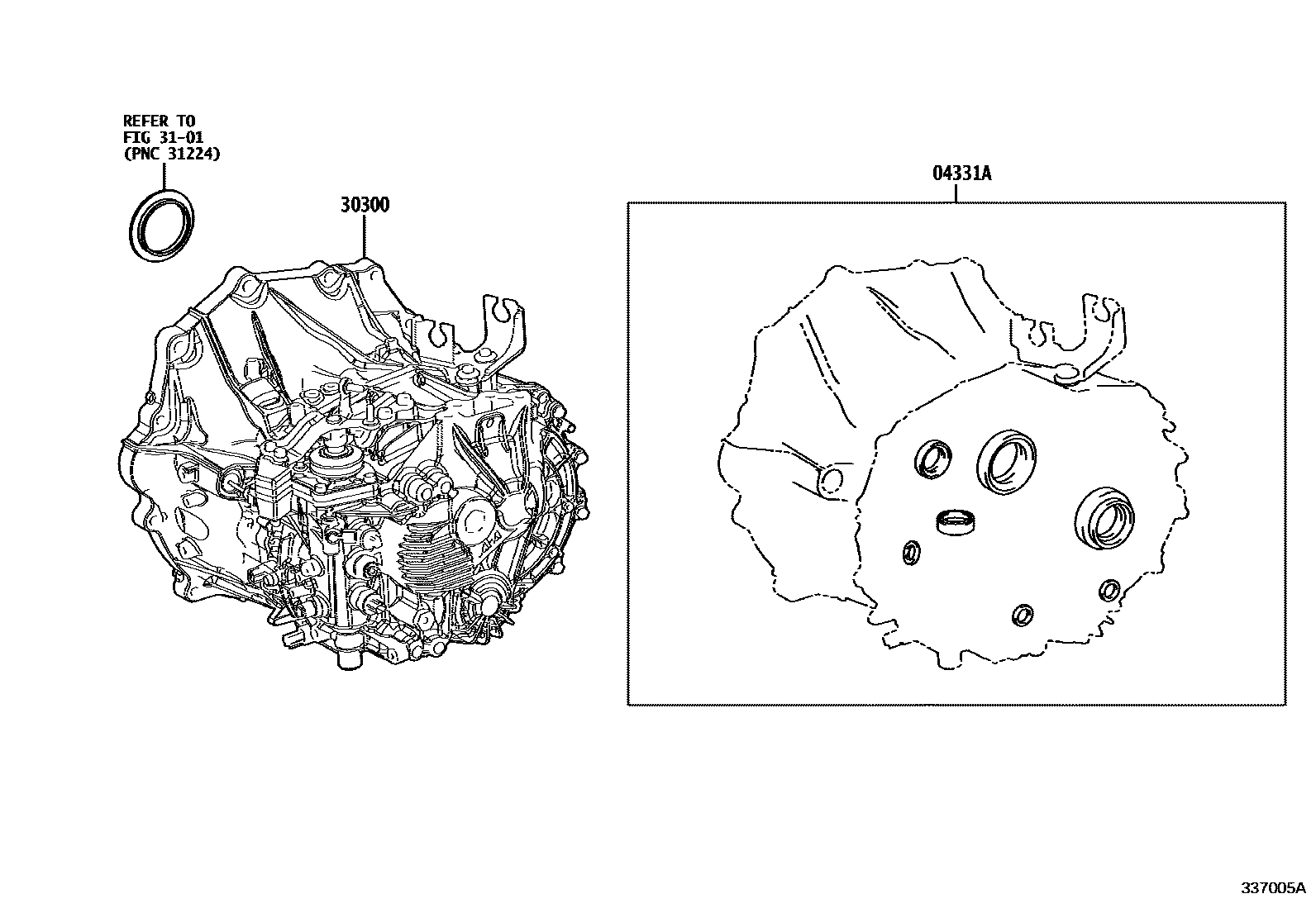

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-52690i202212-202409

30300TRANSAXLE ASSY, MANUAL

main30300-12K20i202212-202304

main30300-12K10supersedes 30300-12K11i202212-202404

main30300-12K11i202404-202409

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3 parts on this diagram · 1 diagram in section
