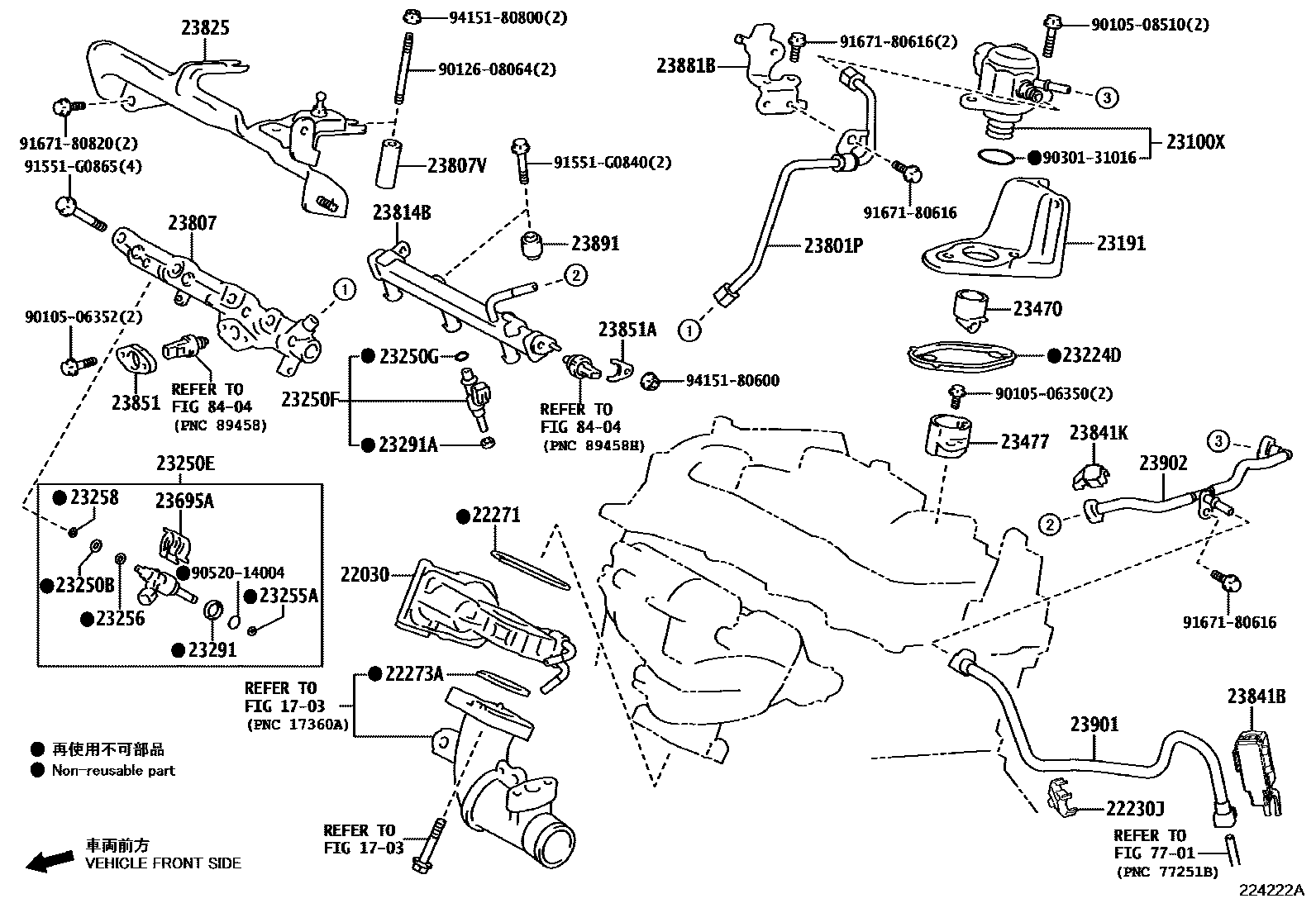

FUEL INJECTION SYSTEM
1703AIR CLEANER
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22230JCLAMP
22271GASKET, THROTTLE BODY
22273AGASKET, THROTTLE BODY, NO.2
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
23250FINJECTOR ASSY, FUEL(FOR PORT)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
23825GUARD, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
23902TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9010506350
main90105-06350
9010506352
main90105-06352
9010508510
main90105-08510
9012608064
main90126-08064
9030131016
main90301-31016
9052014004
main90520-14004
91551G0840
main91551-G0840
91551G0865
main91551-G0865
9167180616
main91671-80616
9167180820
main91671-80820
9415180600
main94151-80600
9415180800
main94151-80800
47 parts on this diagram · 1 diagram in section
