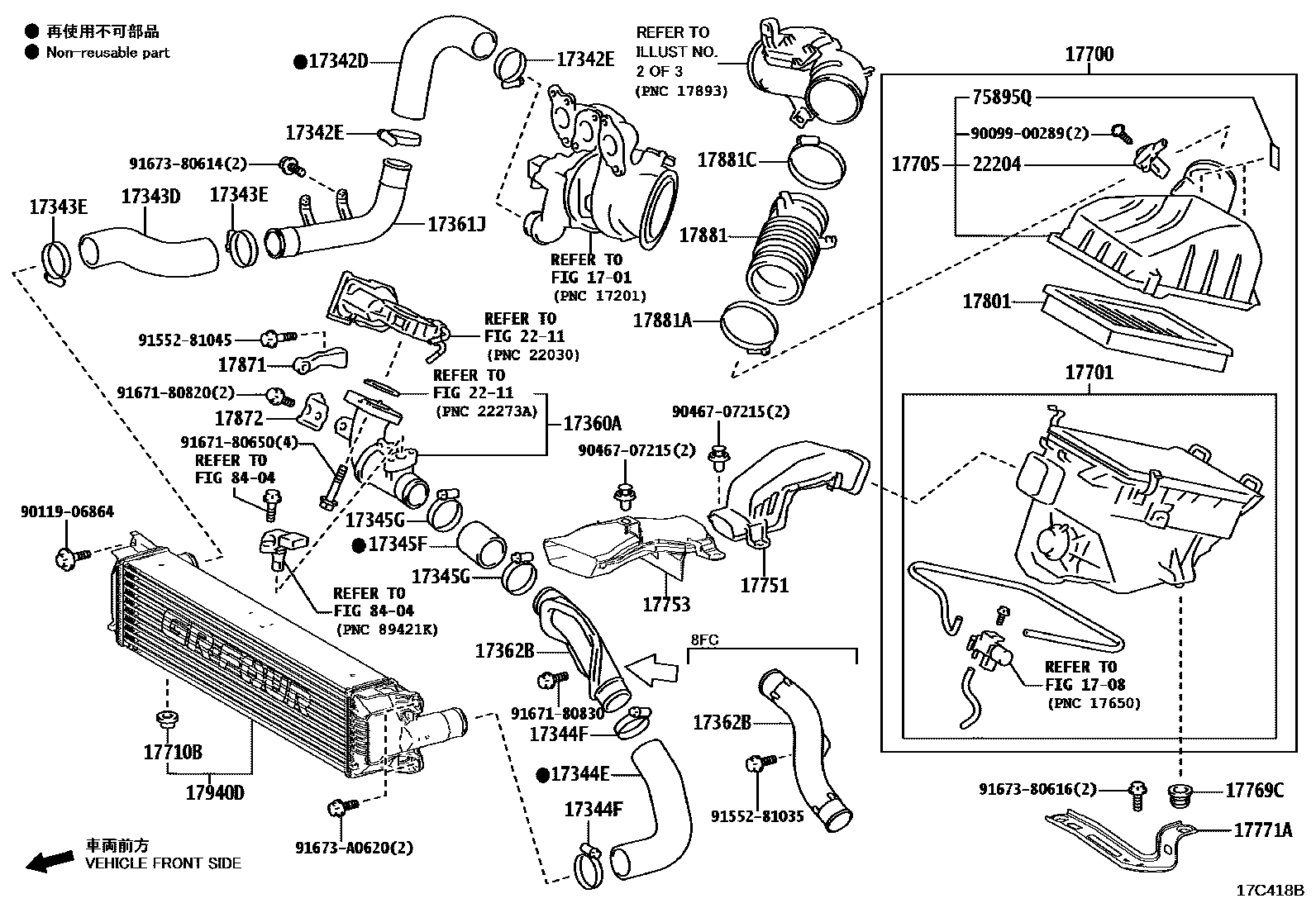

AIR CLEANER
1701MANIFOLD
1708VACUUM PIPING
17342DHOSE, AIR, NO.2
17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)
17343DHOSE, AIR, NO.3
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
17344EHOSE, AIR, NO.4
17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)
17345FHOSE, AIR, NO.5
17345GCLAMP OR CLIP(FOR AIR HOSE, NO.5)
17360ATUBE ASSY, AIR
17361JTUBE, AIR, NO.1
17362BTUBE, AIR, NO.2
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17753INLET, AIR CLEANER, NO.3
17769CSUPPORT, AIR CLEANER, NO.1
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17871STAY, AIR CONNECTOR
17872BRACKET, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17940DINTERCOOLER ASSY
2211FUEL INJECTION SYSTEM
22204METER SUB-ASSY, INTAKE AIR FLOW
75895QTAPE, MOULDING, NO.1
8404ELECTRONIC FUEL INJECTION SYSTEM
9009900289
main90099-00289
9011906864
main90119-06864
9046707215
main90467-07215
9155281035
main91552-81035
9155281045
main91552-81045
9167180650
main91671-80650
9167180820
main91671-80820
9167180830
main91671-80830
9167380614
main91673-80614
9167380616
main91673-80616
91673A0620
main91673-A0620
43 parts on this diagram · 3 diagrams in section
