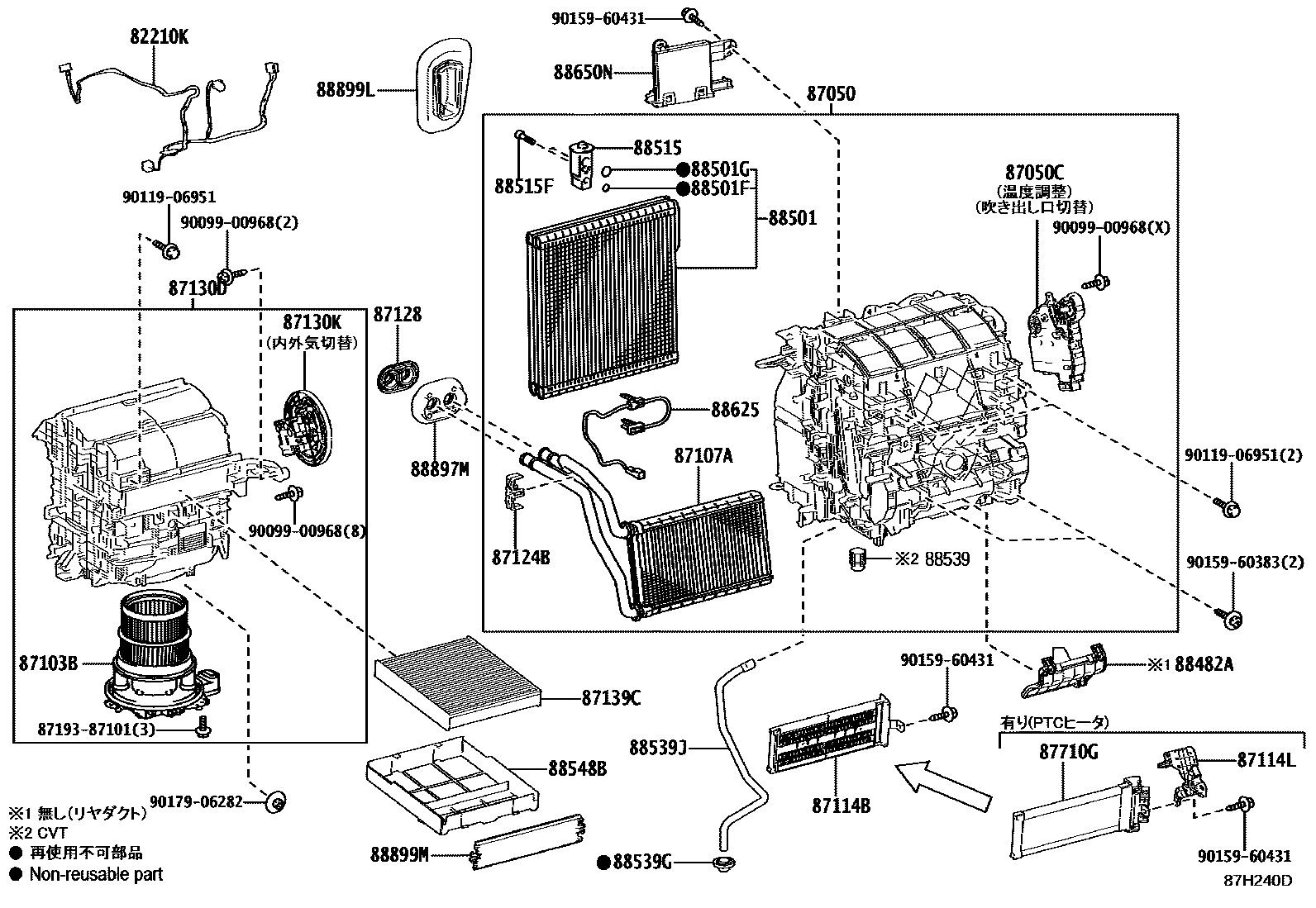

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12130iZWE219202210

main82212-12140supersedes 82212-12080iZWE213201806

main82212-47020supersedes 82212-12080iZWE213201806

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12C80supersedes 87050-12B90iNRE21#..CVT201806

main87050-12C90supersedes 87050-12B60iZWE211201806-202005

main87050-12D00supersedes 87050-12B60iZWE213201806

main87050-12D80supersedes 87050-12D90iNRE210..6F201808

main87050-16070supersedes 87050-12E70iZWE219202210

main87050-47321supersedes 87050-12B60iZWE213201806

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-47180supersedes 87106-48170iZWE211201806-202005

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42130iNRE21#,ZWE213202107

main87103-58070iNRE21#,ZWE213201806-202107

main87103-78050iMZEA12202404-202505

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iZWE211201806-202005

87114BCOVER, HEATER

main87114-47020iZWE211201806-202005

87114LCOVER, HEATER, NO.2

main87114-48120iNRE21#,ZWE213201806

87124BCLAMP, HEATER

main87124-33070iZWE211201806-202005

87128GROMMET, HEATER

main87128-28010iZWE211201806-202005

87130DBLOWER ASSY

main87130-16211iZWE219202404

main87130-42480iNRE21#,ZWE213202107

main87130-47300iZWE219202210-202403

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iZWE219202210

87139CFILTER, CLEAN AIR

main87139-28020iNRE21#,ZWE213201806

main87139-58010iMZEA12202210-202505

87710GQUICK HEATER ASSY

main87710-48020iNRE21#,ZWE213201806

88482ACOVER

main87114-10100iMZEA12202210-202505

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10180iZWE219202210

main88501-12540iNRE210..6F201808

main88501-12570iNRE21#..CVT201806

main88501-47100iZWE211201806-202005

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iNRE21#,ZWE213201806

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iZWE211201806-202005

88515VALVE, COOLER EXPANSION

main88515-12160iNRE21#..CVT201806

main88515-33080iZWE219202210

main88515-50320iZWE213201806

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iZWE211201806-202005

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iNRE21#..CVT201806

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iZWE211201806-202005

88539JHOSE, DRAIN COOLER

main88539-47050iZWE211201806-202005

88548BCASE, AIR FILTER

main88899-48070iZWE211201806-202005

88625THERMISTOR, COOLER, NO.1

main88620-28050iNRE210..6F201808

main88620-28060iZWE211201806-202005

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-12G90iZWE211201806-202005

main88650-12M20supersedes 88650-12M00iMZEA12,ZWE219202210-202308

main88650-12M90supersedes 88650-12N00iMZEA12,ZWE219202309-202404

main88650-12N40supersedes 88650-12N30iMZEA12202404-202505

88897MGROMMET (FOR HEATER PIPE)

main87128-28020iZWE211201806-202005

88899LPARTS, COOLING UNIT

main88899-10120iMZEA12202210-202505

main88899-47070iZWE211201806-202005

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iZWE211201806-202005

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

34 parts on this diagram · 2 diagrams in section
