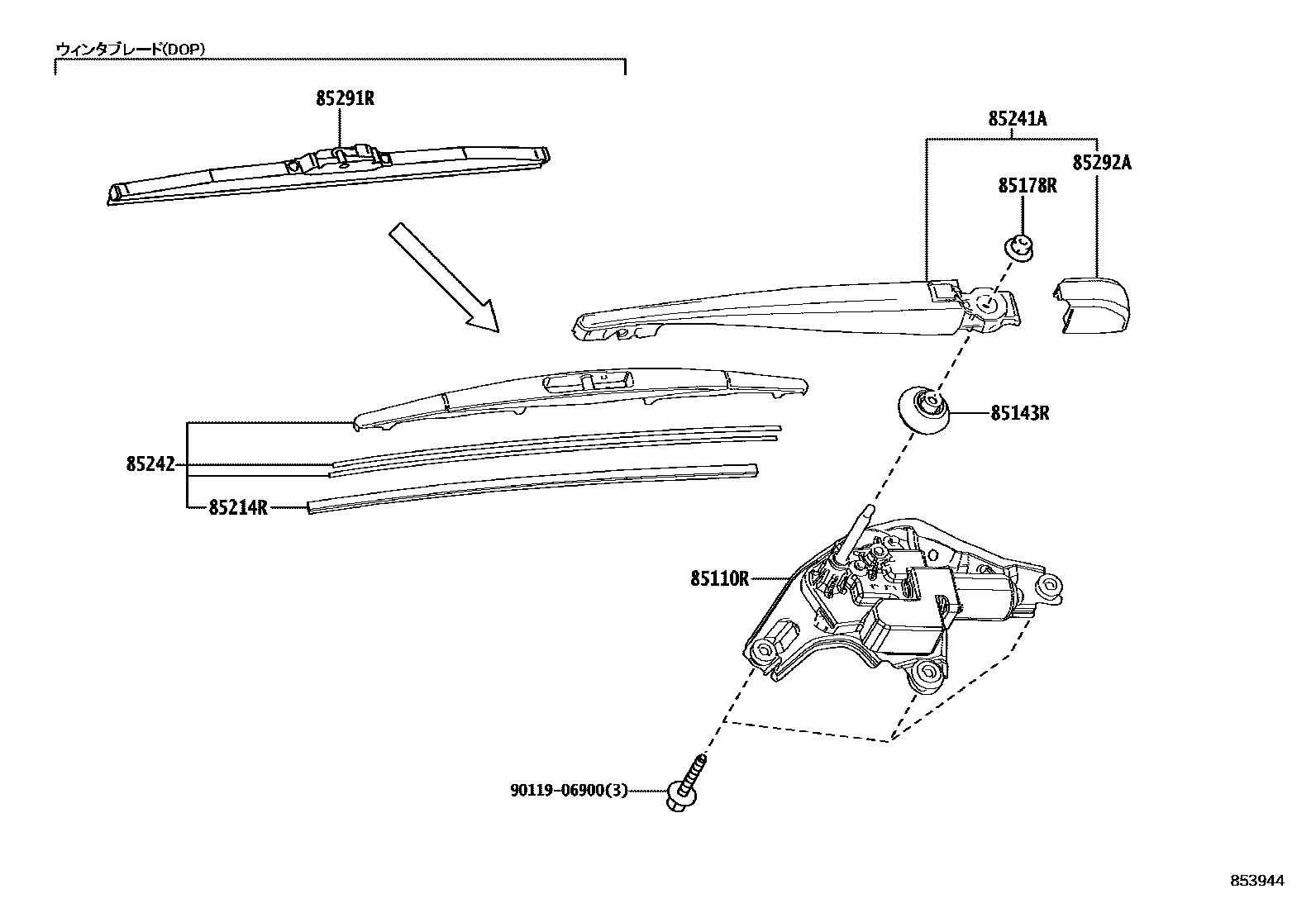

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-12A40iZWE211201806-202505

85143RGROMMET, REAR WIPER MOTOR

main85143-12830iZWE211201806-202505

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZWE211201806-202505

85214RRUBBER, REAR WIPER

main85214-12320iZWE211201806-202505

85241AARM, REAR WIPER

main85241-12170iZWE211201806-202505

85242BLADE, RR WIPER

main85242-12150iZWE211201806-202505

85291RBLADE,REAR WIPER, WINTER

main85291-12080iZWE211201806-202005

85292ACAP, REAR WIPER ARM HEAD

main85244-12050iZWE211201806-202505

9011906900

main90119-06900

9 parts on this diagram · 1 diagram in section
