INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-12390-C0iNRE21#,ZWE213201806-202505

BLACK,TRIM2#,3#,4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-12450-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iZWE211201806-202505

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10167iZWE211201806-202505

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-12160iNRE21#,ZWE211201806-202004

main62170-12161iNRE21#,ZWE213202005

main62170-12162iMZEA12202210-202505

62170BBOLT, W/WASHER

main91673-80616iZWE211201806-202505

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-12160iNRE21#,ZWE211201806-202004

main62180-12161iNRE21#,ZWE213202005

main62180-12162iMZEA12202210-202505

62211GARNISH, FRONT PILLAR, RH

main62210-12110-C1iZWE211201806-202006

BLACK,TRIM2#,4#

main62210-12160-C0iNRE21#,ZWE213202006-202505

BLACK,TRIM2#,4#

62212GARNISH, FRONT PILLAR, LH

main62220-12110-C1iZWE211201806-202006

BLACK,TRIM2#,4#

main62220-12160-C0iNRE21#,ZWE213202006-202505

BLACK,TRIM2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-11010iNRE21#,ZWE211201806-201809

main62217-42050iZWE211201809-202505

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12290iZWE211201806-202505

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12300iZWE211201806-202505

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12300iZWE211201806-202505

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12300iZWE211201806-202505

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-12120-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-12120-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12360-C0iNRE21#,ZWE213201806-202505

BLACK,TRIM2#,3#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09236iZWE211201806-202111

main90467-10161iNRE21#,ZWE213202111-202505

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12350-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-12280-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iZWE211201806-202505

62472AGARNISH, ROOF SIDE, INNER LH

main62480-12280-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-09240iZWE211201806-202505

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iZWE211201806-202505

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62217-13010iZWE211201806-202505

62551FGARNISH, REAR SEAT SIDE, RH

main62551-12360-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-12340-C0iNRE21#,ZWE213201806-202505

BLACK,TRIM2#,3#,4#

62638BCLIP

main90467-09236iZWE211201806-202505

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12340-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12300-C0iZWE219201806-202505

BLACK,TRIM2#,3#,4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12270-C0iZWE211201806-202005

BLACK,TRIM2#,3#,4#

main67917-12280-C0iMZEA12201806-202505

BLACK,TRIM2#,3#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12260-C0iZWE213201806-202005

BLACK,TRIM2#,3#,4#

main67918-12270-C0iNRE21#201806-202505

BLACK,TRIM2#,3#,4#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090iZWE211201806-202505

7104

9046710161

main90467-10161

9046710167

main90467-10167

9046710216

main90467-10216

9046718017

main90467-18017

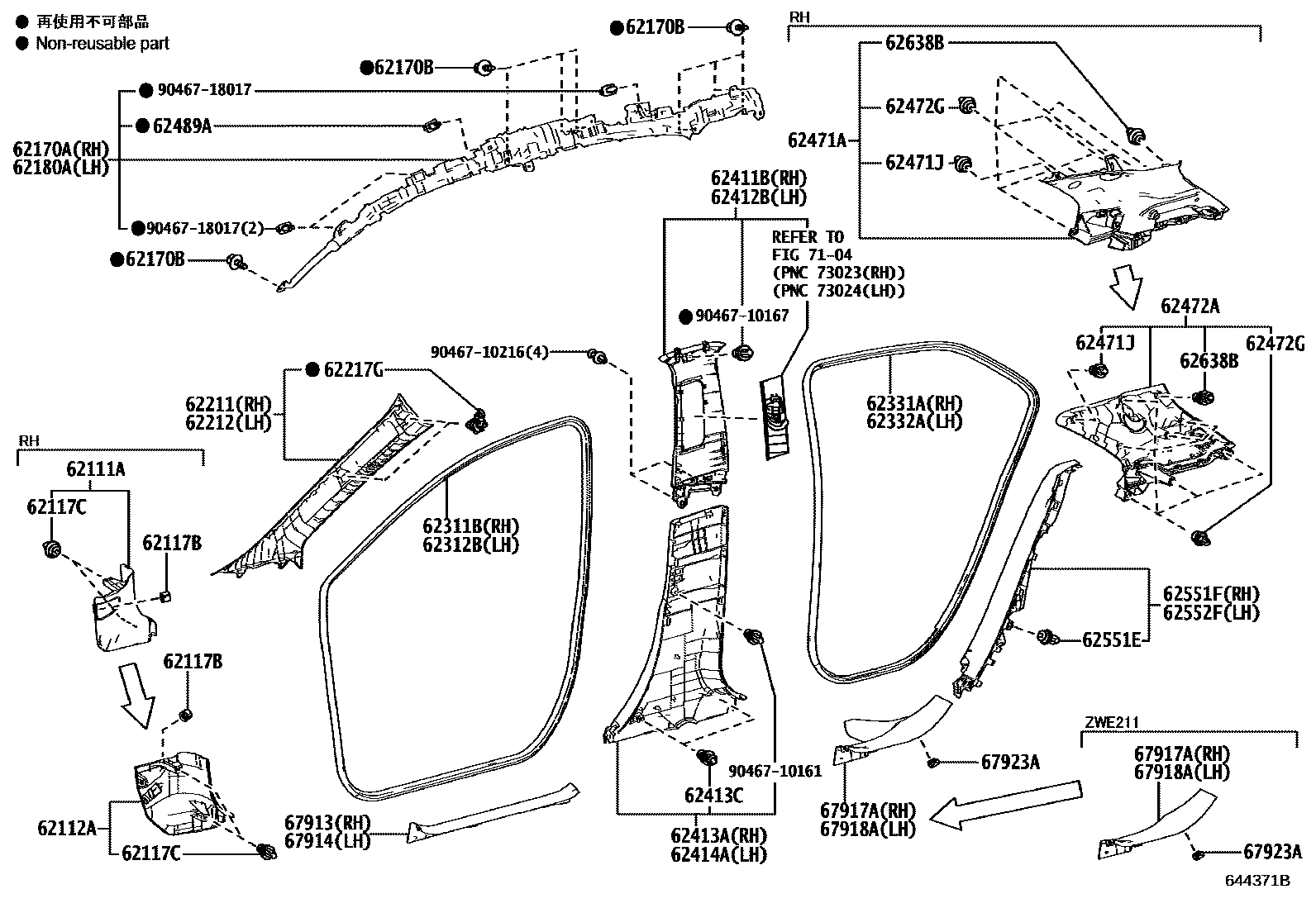

38 parts on this diagram · 1 diagram in section
