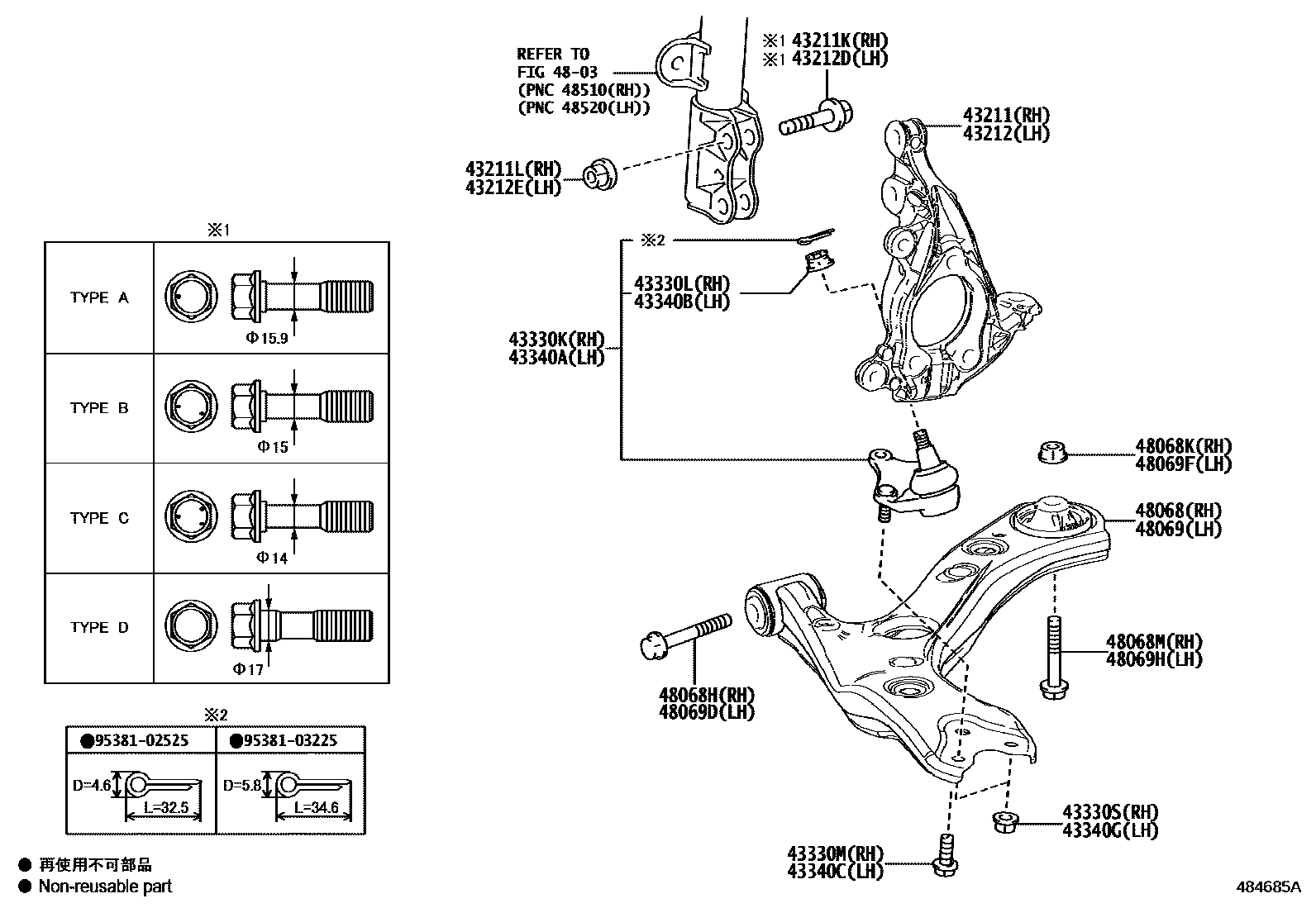

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-47040iNRE21#,ZWE213201806-202505

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009iNRE21#,ZWE213201806-202005

main90105-17010iNRE21#,ZWE213201806-202005

main90105-17011iZWE211201806-202005

main90105-17013iZWE219202210-202505

main90105-17014iMZEA12202210-202505

main90105-17015iZWE219202210-202505

main90105-17020iNRE210..6F201806-201809

main90105-17021iNRE21#,ZWE213201809-202505

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iZWE211201806-202505

43212KNUCKLE, STEERING, LH

main43212-47040iMZEA12201806-202505

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009iNRE21#,ZWE213201806-202005

main90105-17010iZWE211201806-202005

main90105-17011iNRE21#,ZWE213201806-202005

main90105-17013iZWE219202210-202505

main90105-17014iZWE219202210-202505

main90105-17015iZWE219202210-202505

main90105-17020iNRE21#,ZWE211201806-201809

main90105-17021iMZEA12201809-202505

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iZWE211201806-202505

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115iZWE211201806-202505

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMZEA12201806-202505

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12407iZWE211201806-202505

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iZWE211201806-202505

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115iZWE211201806-202505

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iZWE211201806-202505

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12407iZWE211201806-202505

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iZWE211201806-202505

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-47060iZWE211201806-202505

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16091iZWE211201806-202505

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90179-14068iZWE211201806-202505

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iZWE211201806-202505

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-47060iZWE211201806-202505

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16091iZWE211201806-202505

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90179-14068iZWE211201806-202505

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iZWE211201806-202505

9538102525

main95381-02525

9538103225

main95381-03225

25 parts on this diagram · 1 diagram in section
