Toyota COROLLA SPORT — BRAKE MASTER CYLINDER

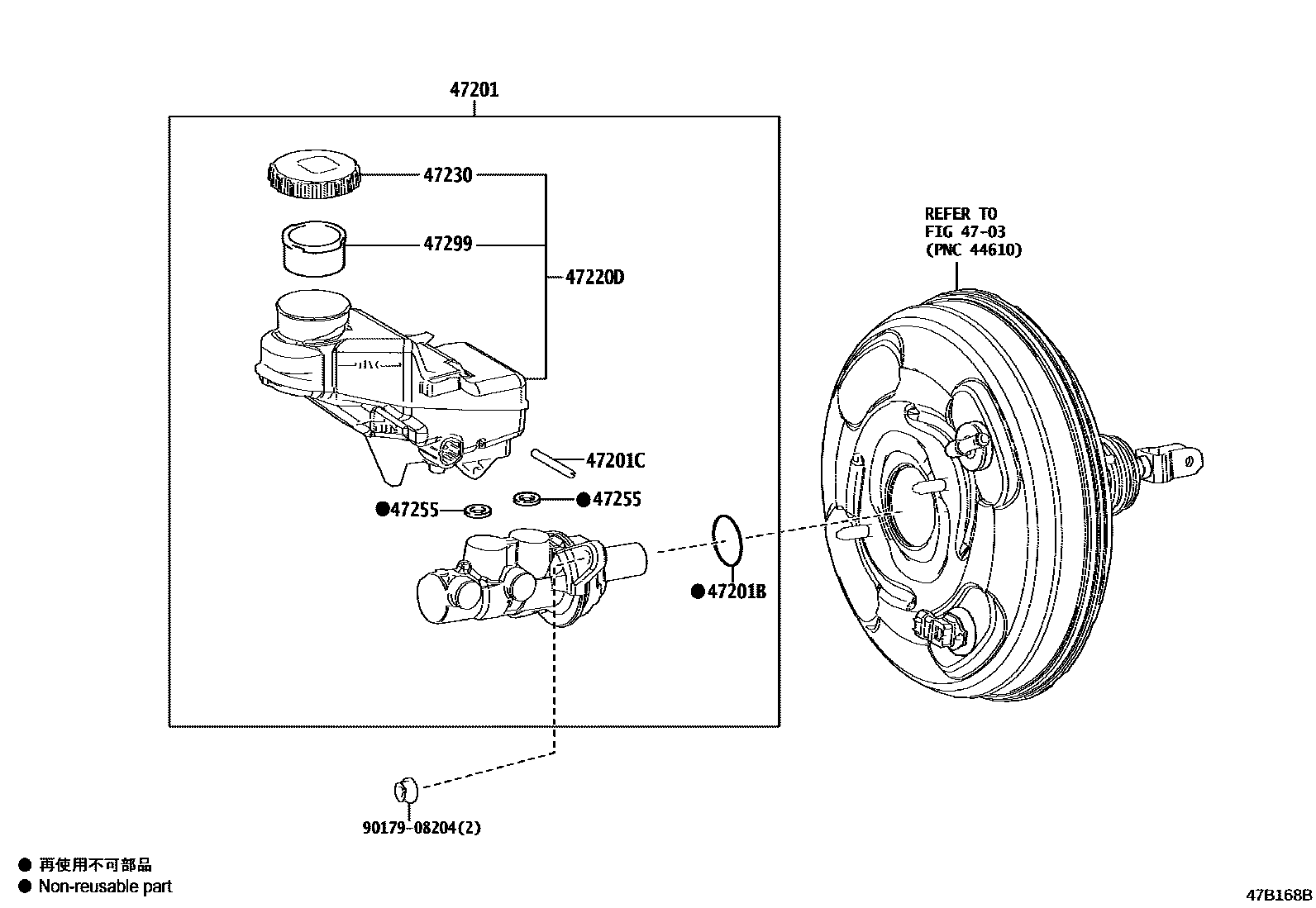

Parts diagram

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

47201BRING, O(FOR BRAKE MASTER CYLINDER)

47201CRING PIN, BRAKE MASTER CYLINDER

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

47255GROMMET, MASTER CYLINDER RESERVOIR

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

9017908204

9 parts on this diagram · 3 diagrams in section

BRAKE MASTER CYLINDER for Toyota COROLLA SPORT

This section contains 25 genuine Toyota parts for the BRAKE MASTER CYLINDER system of the Toyota COROLLA SPORT. Key components include: TUBE, BRAKE ACTUATOR, NO.1, HOSE, BRAKE ACTUATOR, NO.1, CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1), HOSE, BRAKE ACTUATOR, NO.2, CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2).
