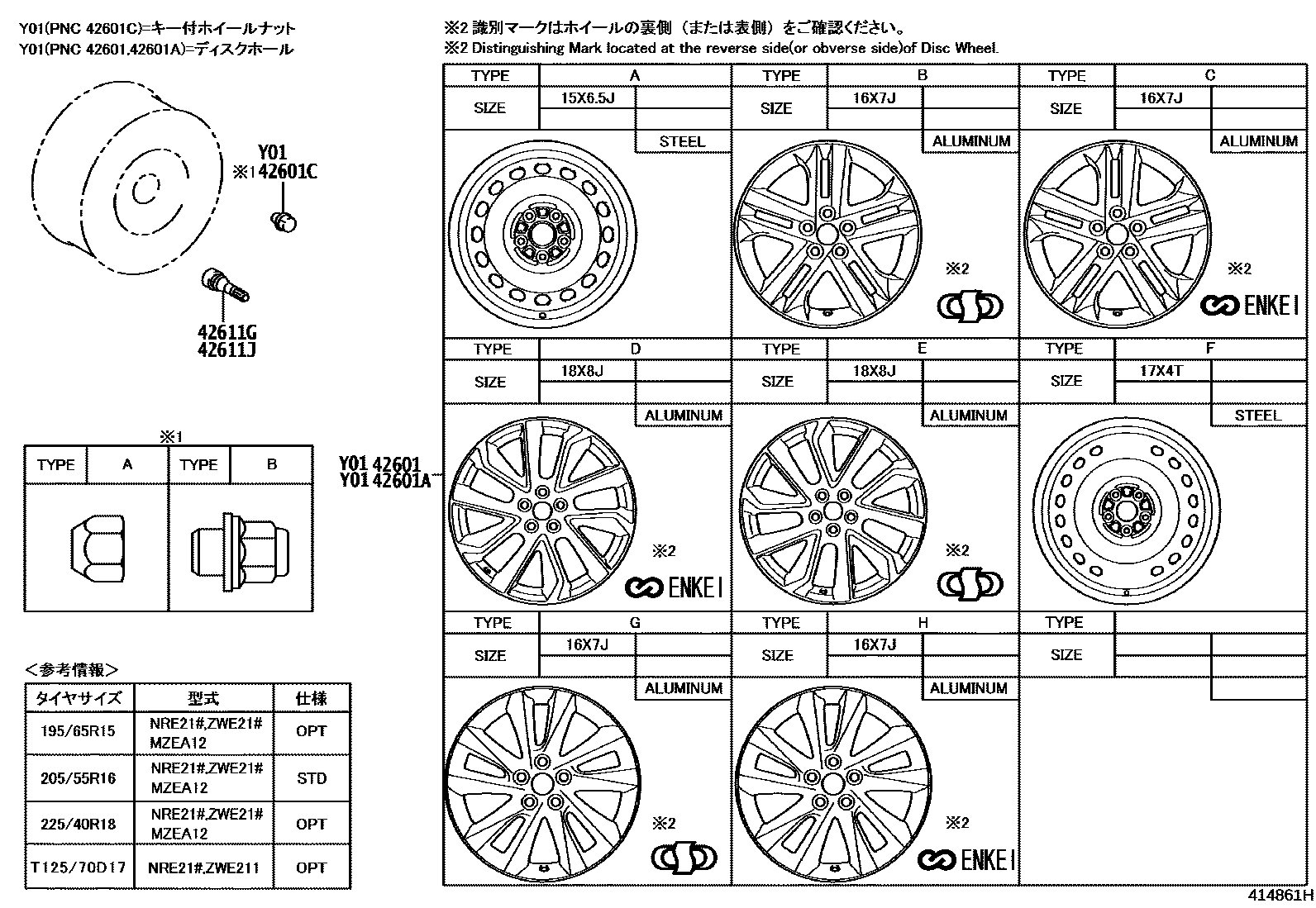

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-12D80×4iNRE21#,ZWE213201806

main42611-12E00×4iNRE21#,ZWE213201806

main42611-12D30×4iNRE21#201806-202006

main42611-12D31×4supersedes 42611-12G00iZWE219202210

main42611-12D60×4supersedes 42611-12E00iZWE211201806-202005

main42611-12E10×4iNRE21#201806-202006

main42611-12F20×4iNRE21#,ZWE213202006-202111

main42611-12J00×4iZWE213202111

42601AWHEEL, DISC (FOR SPARE)

main42611-47631iNRE21#,ZWE213201806

42601CNUT, HUB (FOR AXLE)

main90942-01007×20supersedes 90942-01033iZWE211201806-202005

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iZWE211201806-202005

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZWE211201806-202005

5 parts on this diagram · 3 diagrams in section
