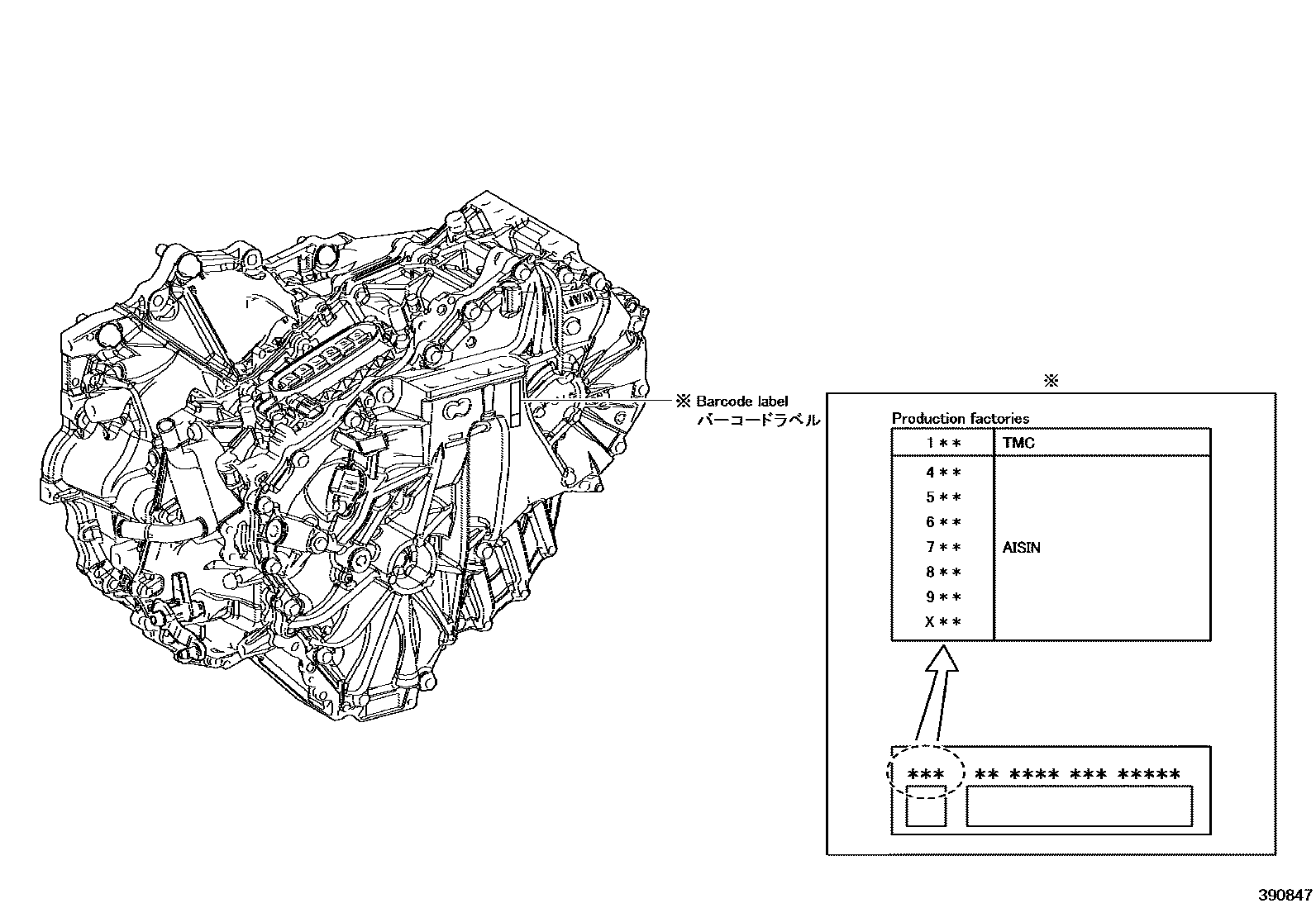

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-12020iZWE211,213201806

main30900-12040iZWE219202210

main30900-12080iZWE219202310

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045×7iZWE211201806-202005

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZWE211201806-202005

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZWE211201806-202005

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZWE211201806-202005

30900PPLUG, DRAIN(HEV)

main90341-18016iZWE211201806-202005

30900QPLUG, FILLER(HEV)

main90341-18016iZWE211201806-202005

main90341-18090iZWE219202210

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZWE211201806-202005

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZWE211201806-202005

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28020iZWE219202210

main31270-47070iZWE211201806-202005

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZWE211201806-202005

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZWE211201806-202005

main35572-28140iZWE219202210

35697ARING, TRANSAXLE OIL SEAL

main35697-52030iZWE219202310

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZWE211201806-202005

main90311-25035iZWE219202210

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82821TCOVER, CONNECTOR

main82821-47240iZWE211201806-202005

82823MCAP, TERMINAL

main82823-28110iZWE219202210

main82823-47040iZWE213201806

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8431HEV INVERTER

→ Go to FIG 84-31

8432INVERTER COOLING

→ Go to FIG 84-32

G1148CABLE, MOTOR

mainG114828040iZWE219202210-202409

mainG114828041iZWE219202410

mainG114847070iZWE211201806-202005

G125AACOOLER, MOTOR COOLING

mainG125A28010iZWE219202210

3569728030RING, TRANSAXLE OIL SEAL

main35697-28030

9011906A57

main90119-06A57

9030106196

main90301-06196

9030110189

main90301-10189

9030115004

main90301-15004

9034108001

main90341-08001

9034113004

main90341-13004

9034118020

main90341-18020

9155110818

main91551-10818

91641H0820

main91641-H0820

9167180612

main91671-80612

9167180620

main91671-80620

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

38 parts on this diagram · 3 diagrams in section
