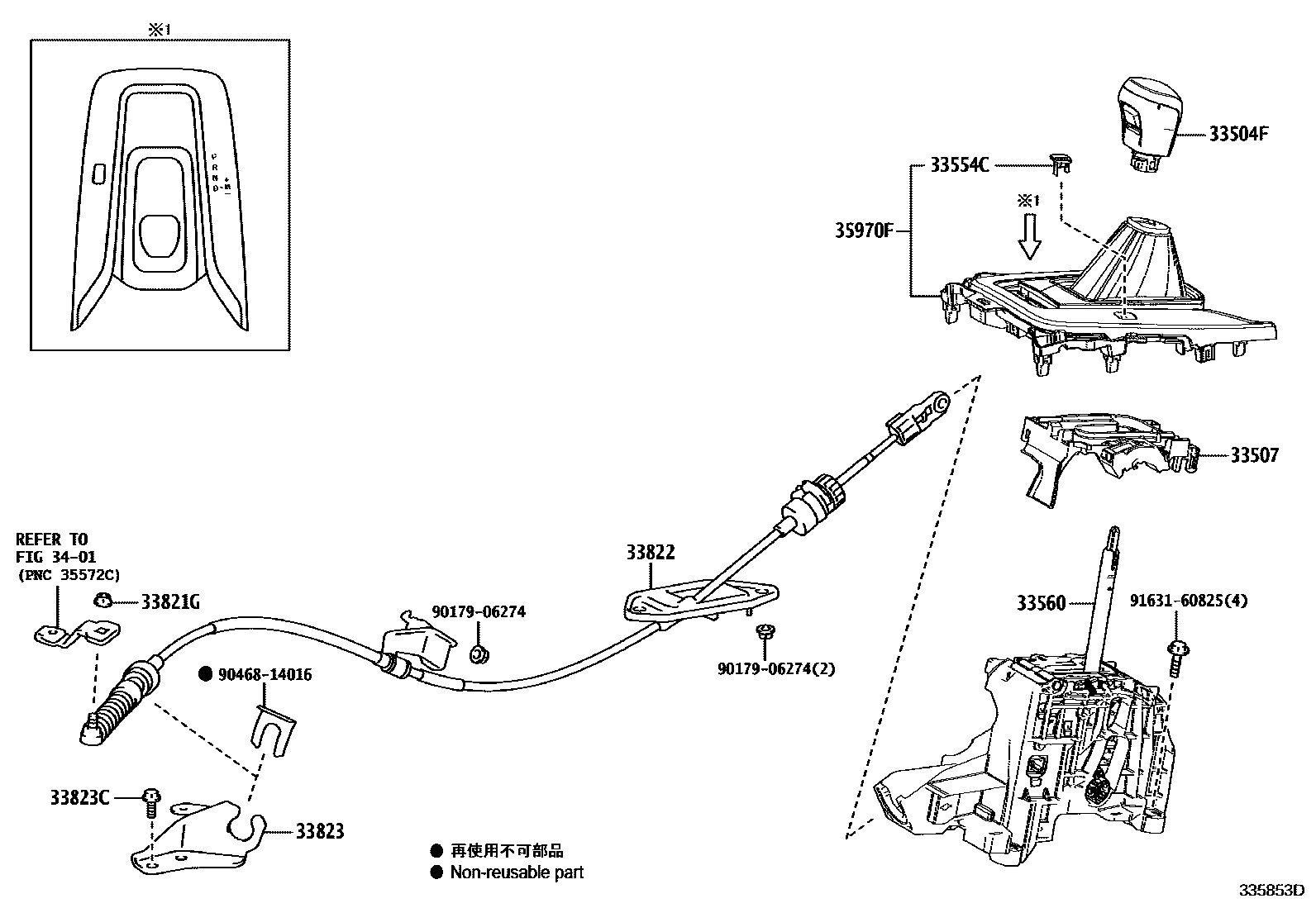

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12750-C0iNRE210..6F201808

BLACK,TRIM2#,3#,4#

sub33504-12750

main33504-12800-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-12040iZWE211201806-202505

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-12220iZWE219201806-202505

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-10020iNRE21#..CVT201806-202505

main33560-10030iZWE211201806-202005

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iZWE211201806-202005

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33820-12J30iMZEA12202210-202505

main33820-12J40iNRE210..6F201808

main33820-12J50iNRE21#..CVT201806

main33820-12J60iZWE213201806-202005

main33820-12K00iZWE219202210

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-10030iZWE211201806-202005

main33823-12190iNRE21#..CVT201806

main33823-12310iMZEA12202210-202505

main33823-12360iZWE219202210

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iZWE211201806-202005

main90119-08C60iNRE210..6F201808

main90119-W0255iNRE210..6F201808

main91671-80820iMZEA12202210-202505

3401

35970FHOUSING ASSY, POSITION INDICATOR

main35970-12470-C3iNRE21#..CVT201806-202206

BLACK & SILVER,TRIM2#,3#,4#

sub35970-12600

main35970-12480-C3iZWE21#201806-202206

BLACK & SILVER,TRIM2#,3#,4#

sub35970-12620

main35970-12600-C1iNRE21#..CVT202207-202505

BLACK & SILVER,TRIM2#,3#,4#

main35970-12620-C1iZWE213202207

BLACK & SILVER,TRIM2#,3#,4#

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

13 parts on this diagram · 5 diagrams in section
