TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

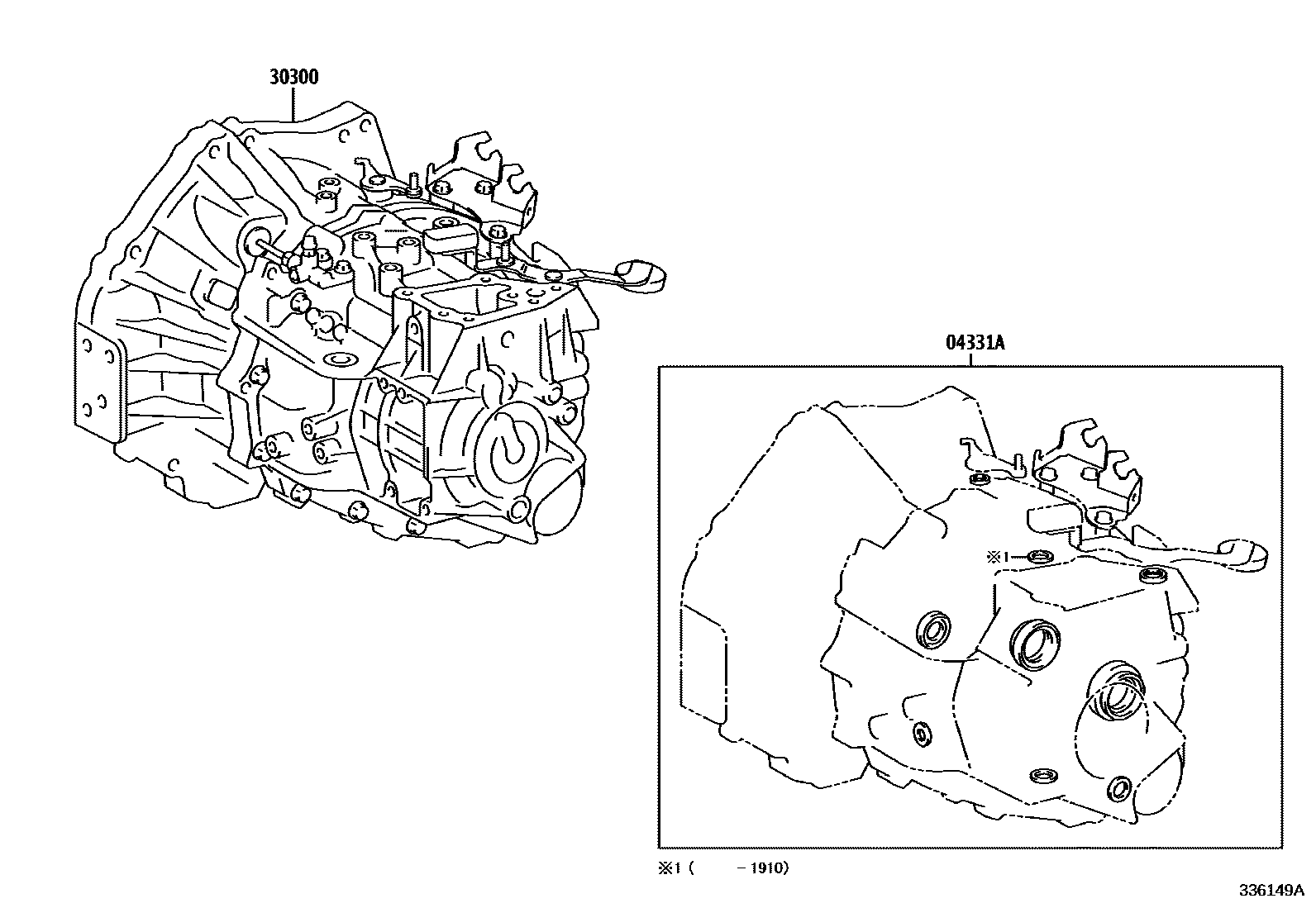

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-0F011i201808-201910

main04331-0F020i201910

30300TRANSAXLE ASSY, MANUAL

main30300-02460i201808-201910

main30300-02461i201910

2 parts on this diagram · 1 diagram in section
