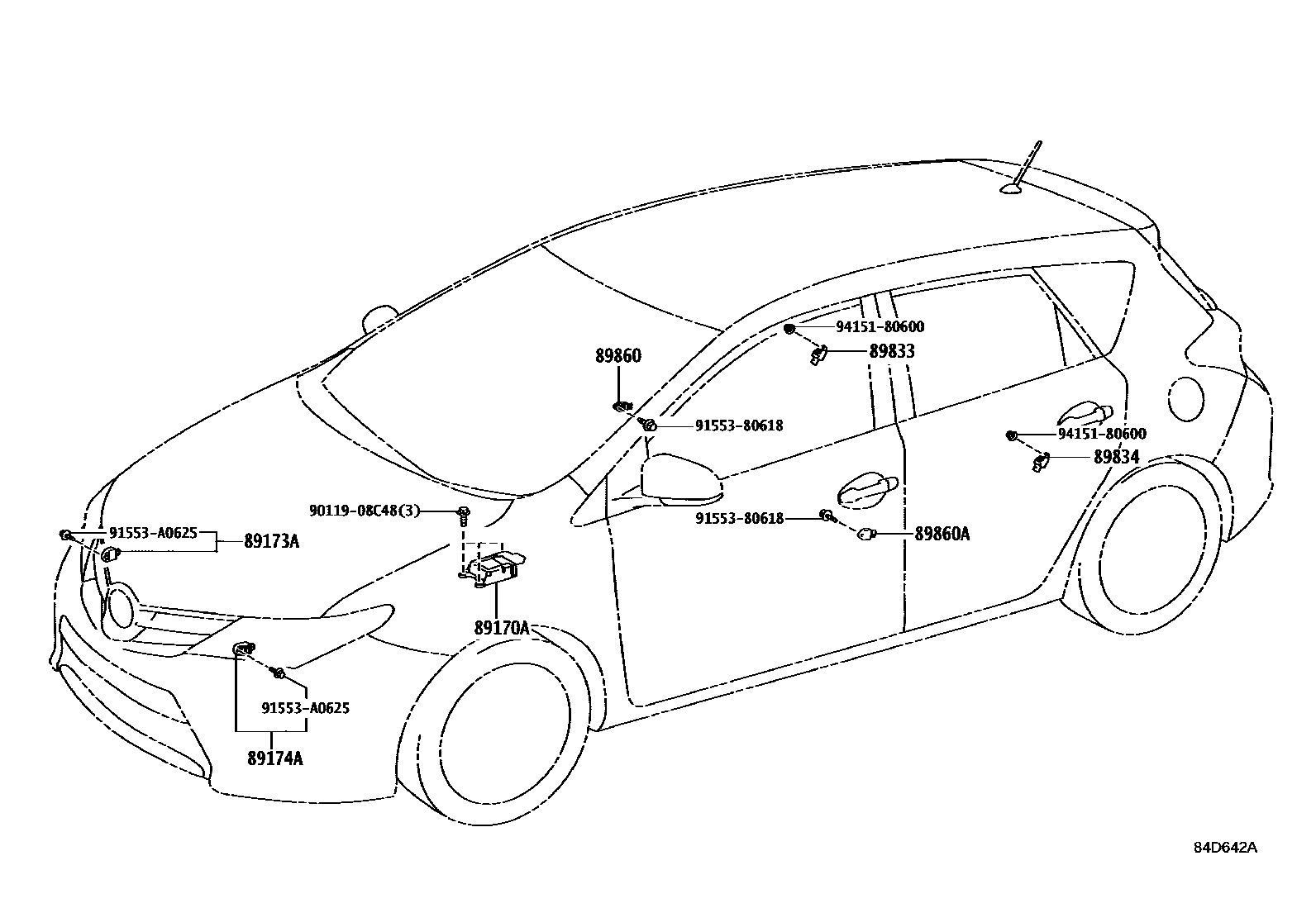

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-12820supersedes 89170-12810iNRE185; NZE18#,ZRE186201503-201603

main89170-12D80supersedes 89170-12D70iNRE185; NZE18#,ZRE186,ZWE186201604-201805

89173ASENSOR, AIRBAG, FRONT RH

main89173-19465iNZE18#,ZRE186201208-201503

89174ASENSOR, AIRBAG, FRONT LH

main89173-19465iNZE18#,ZRE186201208-201503

89833SENSOR, AIRBAG, REAR RH

main89831-12030iNRE185; NZE18#,ZRE186,ZWE186201503

89834SENSOR, AIRBAG, REAR LH

main89831-12030iNRE185; NZE18#,ZRE186,ZWE186201503

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iNRE185; NZE18#,ZRE186,ZWE186201503

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iNRE185; NZE18#,ZRE186,ZWE186201503

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0625

main91553-A0625

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
