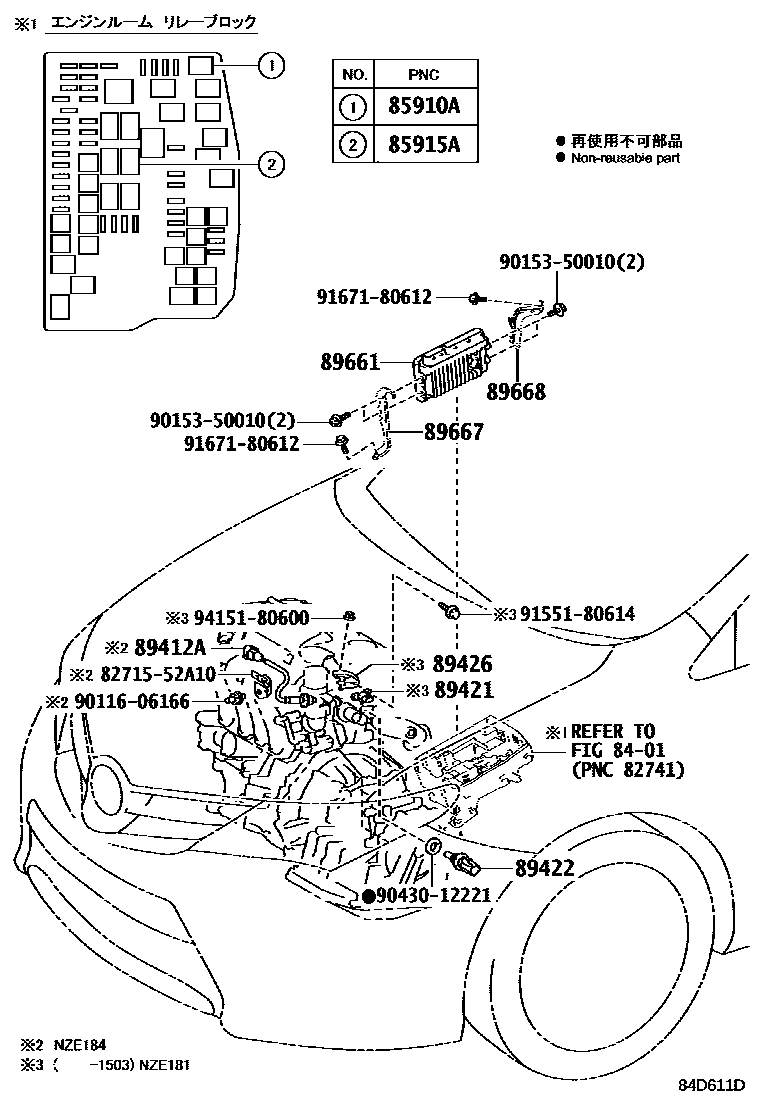

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iNZE18#201208-201503

85915ARELAY, MAIN

main90987-02027iNZE18#,ZRE186201208-201503

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNZE184201208-201503

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNZE181,ZRE186201208-201503

main89421-47010iZWE186201604-201805

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNZE18#,ZRE186201208-201503

89426BRACKET, VACUUM SENSOR

main89426-12260iNZE181201208-201503

main89426-13020iZRE186201208-201503

89661COMPUTER, ENGINE CONTROL

main89661-12R60iZRE186..RS201208-201503

main89661-12R80iZRE186..180201208-201503

main89661-12S10iNZE184201208-201503

main89661-12U50iNRE185201503-201701

main89661-12U51iNRE185201702

main89661-12U80iNZE184201503

main89661-12V30iZRE186..RS201503

main89661-12V40iZRE186..180201503

main89661-12W60iZWE186201604

main89661-12G60supersedes 89661-12U70iNZE181201208-201210

main89661-12G61supersedes 89661-12U70iNZE181201211-201503

main89661-12U60supersedes 89661-12U70iNZE181201503

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02290iZWE186201604

main89667-02450iNRE185201503

main89667-12340iNZE18#,ZRE186201503

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02270iZWE186201604

main89668-02430iNRE185201503

main89668-12270iNZE18#,ZRE186201208-201503

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10

9011606166

main90116-06166

9015350010

main90153-50010

9043012221

main90430-12221

9155180614

main91551-80614

9167180612

main91671-80612

9415180600

main94151-80600

17 parts on this diagram · 4 diagrams in section
