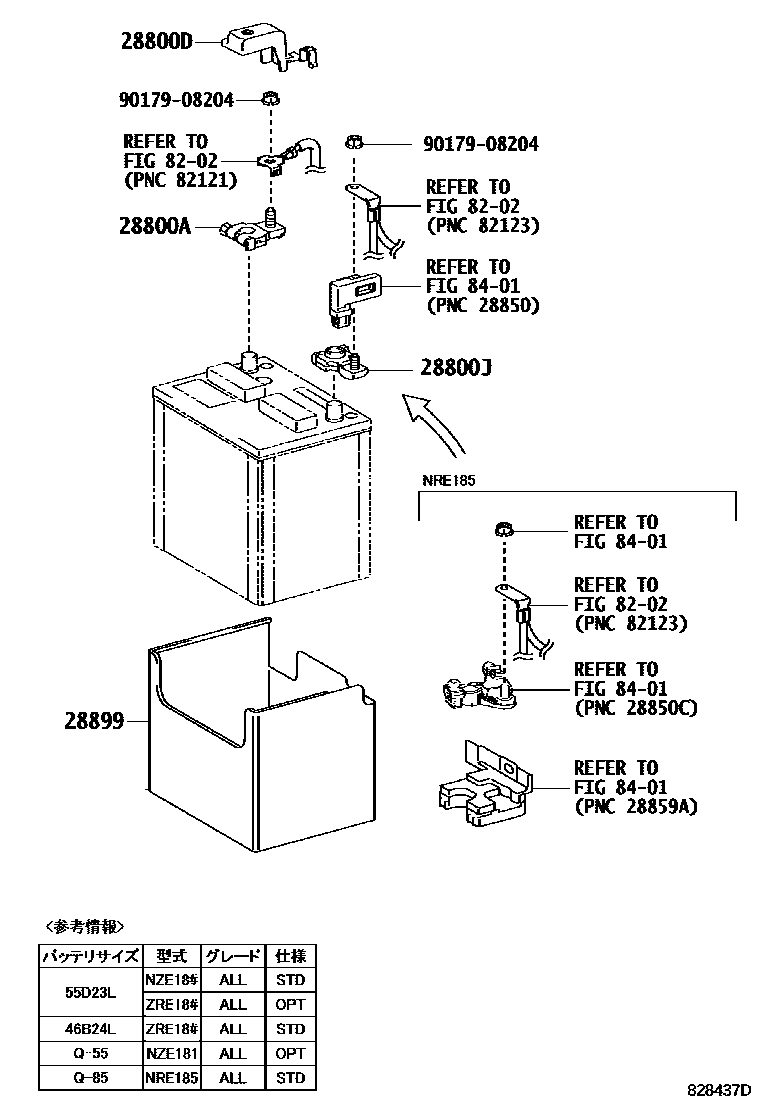

BATTERY & BATTERY CABLE

0001 1 0002 112V ����� 0003 1HV ����� 0004 1HV ����� 0005 1HV �����

28800ATERMINAL, BATTERY POSITIVE

main90982-05054supersedes 90982-05055i1NZFE..NZE18#; 2ZRFAE..ZRE186201208-201503

main90982-05063i2ZRFXE..ZWE186201604

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1NZFE,2ZRFAE..NZE18#,ZRE186201208-201503

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1NZFE..NZE18#201208-201503

main90982-06059supersedes 90982-06071i2ZRFAE..ZRE186201208-201503

28899INSULATOR, BATTERY

main28899-47020i8NRFTS..NRE185201503

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908204

main90179-08204

7 parts on this diagram · 5 diagrams in section
