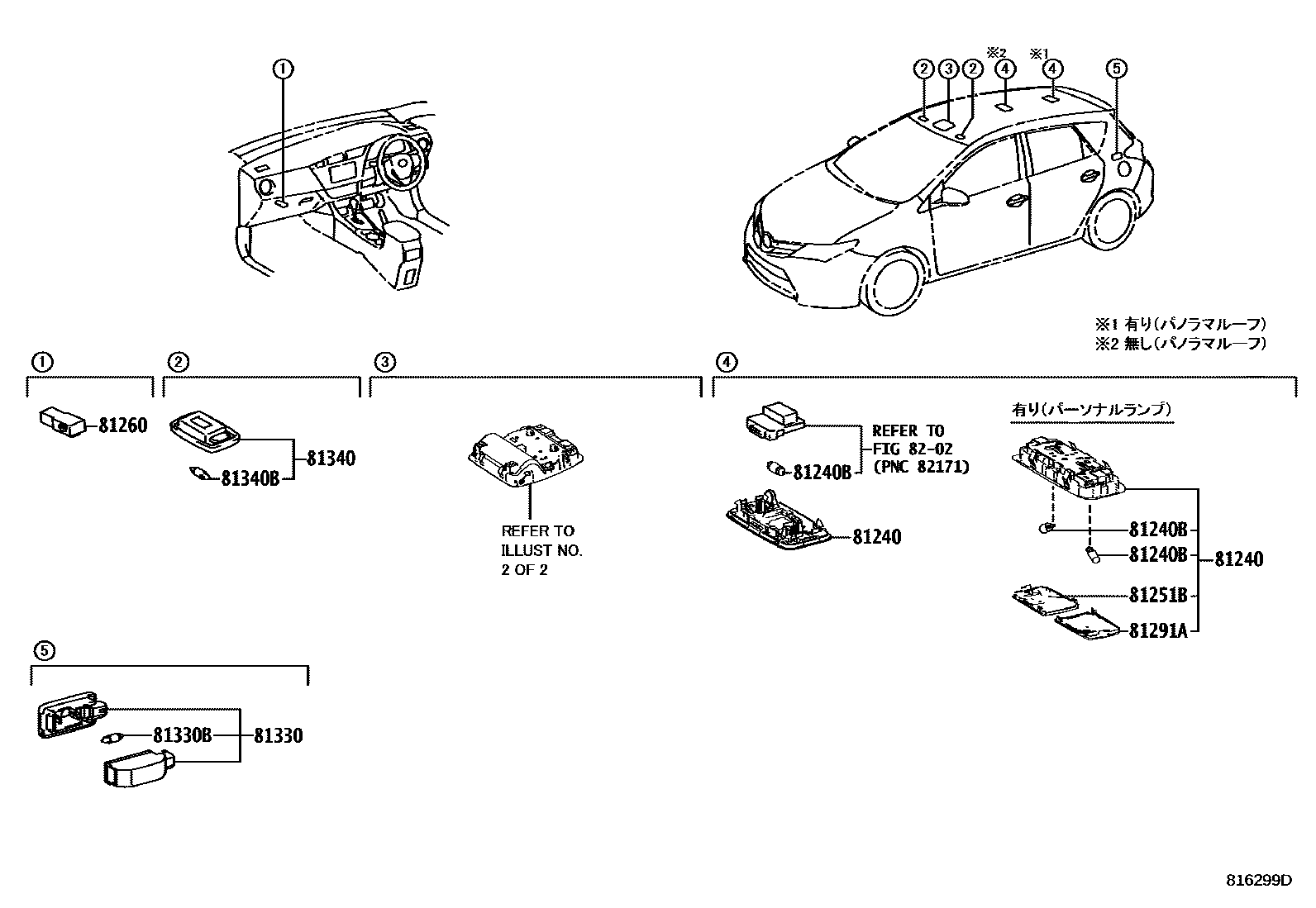

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81250-05030-C0iZWE186201604-201805

BLACK,TRIM00

main81240-35020-B0supersedes 81250-05030-B0iNRE185,ZRE186,ZWE186; NZE18#201503-201805

main81240-35020-C0iZWE186201604-201610

main81240-35020-C1iZWE186201610-201805

main81250-05030-B0supersedes 81240-35020-B0iNZE18#,ZRE186..CVT; ZRE186..RS201208-201503

81240BBULB, ROOM LAMP, NO.1

main90981-11062×2supersedes 90981-14011iNZE18#,ZRE186..CVT; ZRE186..RS201208-201503

main90981-14011iNZE18#; NZE18#,ZRE186..CVT; ZRE186..RS201208-201503

81251BLENS, REAR ROOM LAMP, RH

main81251-05030iNRE185,NZE18#,ZRE186,ZWE186201503

81260LAMP ASSY, GLOVE BOX

main81080-48010iNZE18#,ZRE186201208-201503

main81080-52050iNRE185,NZE18#,ZRE186,ZWE186201712

81291ALENS, REAR ROOM LAMP, LH

main81291-05030iNZE18#,ZRE186..CVT; ZRE186..RS201208-201503

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-12060iNRE185,NZE18#,ZRE186,ZWE186201503

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13050iNZE18#,ZRE186201208-201503

81340LAMP ASSY, VANITY

main81340-33140-B0×2iNZE18#; NZE18#,ZRE186..CVT; ZRE186..RS201208-201503

main81340-33140-C0×2iZWE186201604-201805

BLACK,TRIM00

81340BBULB (FOR VANITY LAMP)

main99132-13050×2iNZE18#; NZE18#,ZRE186..CVT; ZRE186..RS201208-201503

8202WIRING & CLAMP

→ Go to FIG 82-02

10 parts on this diagram · 2 diagrams in section
