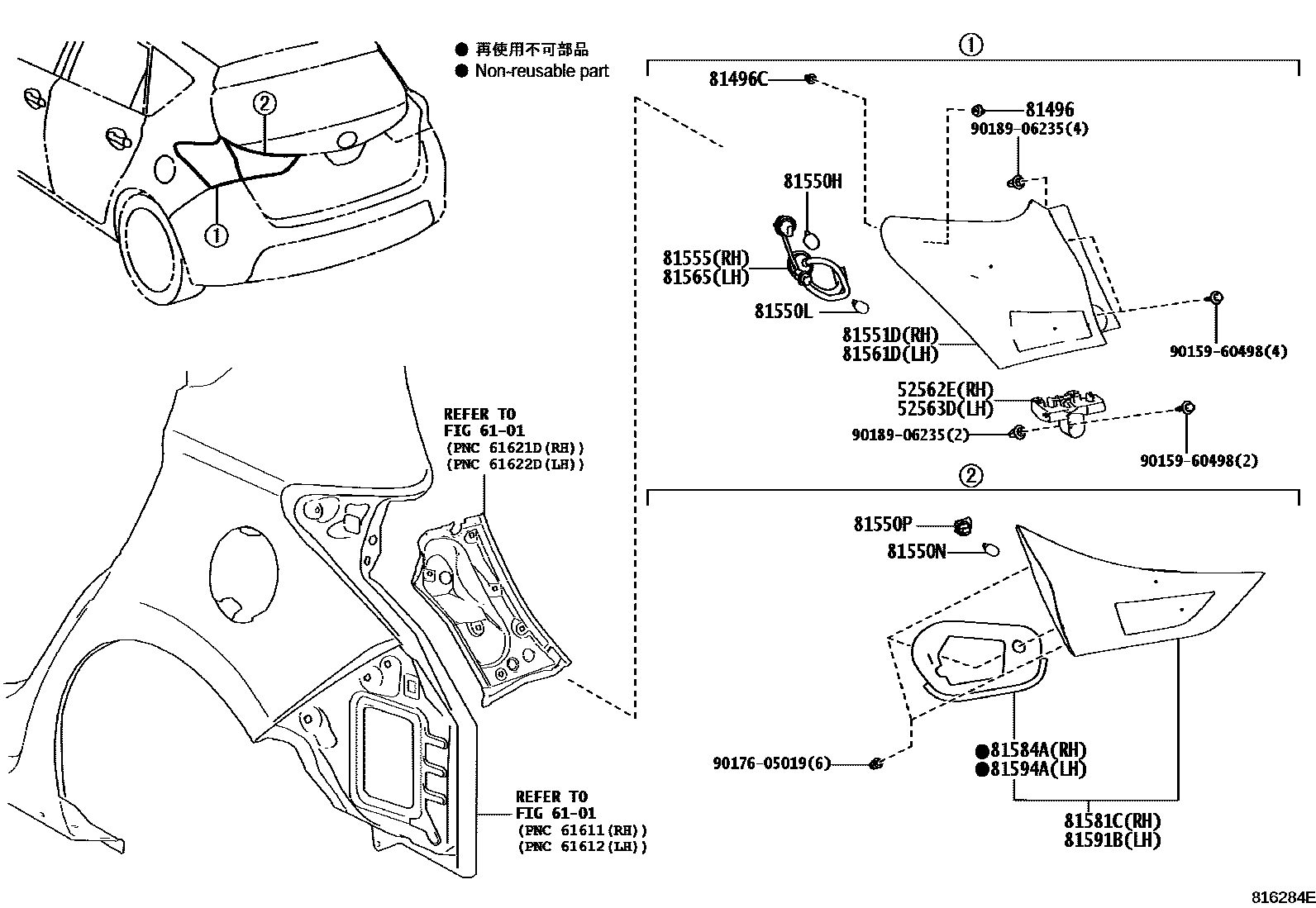

REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LAMP ASSY, REAR COMBINATION, RH
main90981-15028
main90981-13044
main90981-11059
main90075-60065
main90981-13093
main81550-02A60
main81550-02A61
81550HBULB, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550PSOCKET, BACK UP LAMP
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81584AGASKET, REAR LAMP RH
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
9015960498
main90159-60498
9017605019
main90176-05019
9018906235
main90189-06235
21 parts on this diagram · 2 diagrams in section
