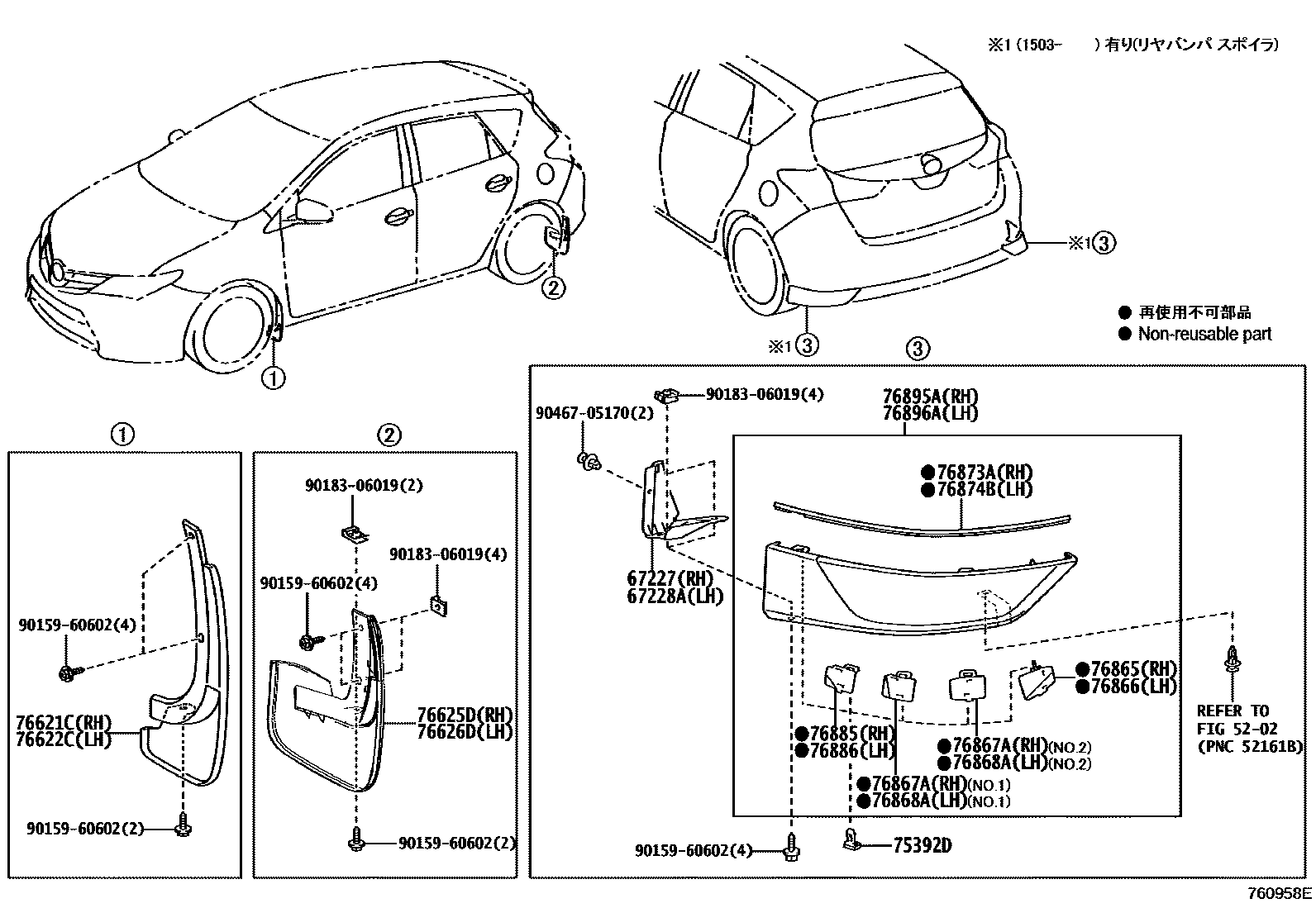

MUDGUARD & SPOILER
5202REAR BUMPER & BUMPER STAY
67227RETAINER, REAR SPOILER, RH
67228ARETAINER, REAR SPOILER, LH
75392DRETAINER, OUTSIDE MOULDING
76621CMUDGUAD, FRONT FENDER, RH
76622CMUDGUARD, FRONT FENDER, LH
76625DMUDGUARD, QUARTER PANEL, REAR RH
76626DMUDGUARD, QUARTER PANEL, REAR LH
76865RETAINER, REAR SPOILER, NO.1
76866RETAINER, REAR SPOILER, NO.2
76873APROTECTOR, REAR SPOILER, RH
GRAY,070 ,1F7
BLACK,209 ,3R3 ,4R8 ,6W2 ,8X7
76874BPROTECTOR, REAR SPOILER, LH
GRAY,070 ,1F7
BLACK,209 ,3R3 ,4R8 ,6W2 ,8X7
76885RETAINER, REAR SPOILER, NO.5
76886RETAINER, REAR SPOILER, NO.6
76895ASPOILER, REAR BUMPER, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
PURE BLUE ME.,8X7
76896ASPOILER, REAR BUMPER, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
PURE BLUE ME.,8X7
9015960602
main90159-60602
9018306019
main90183-06019
9046705170
main90467-05170
21 parts on this diagram · 1 diagram in section
