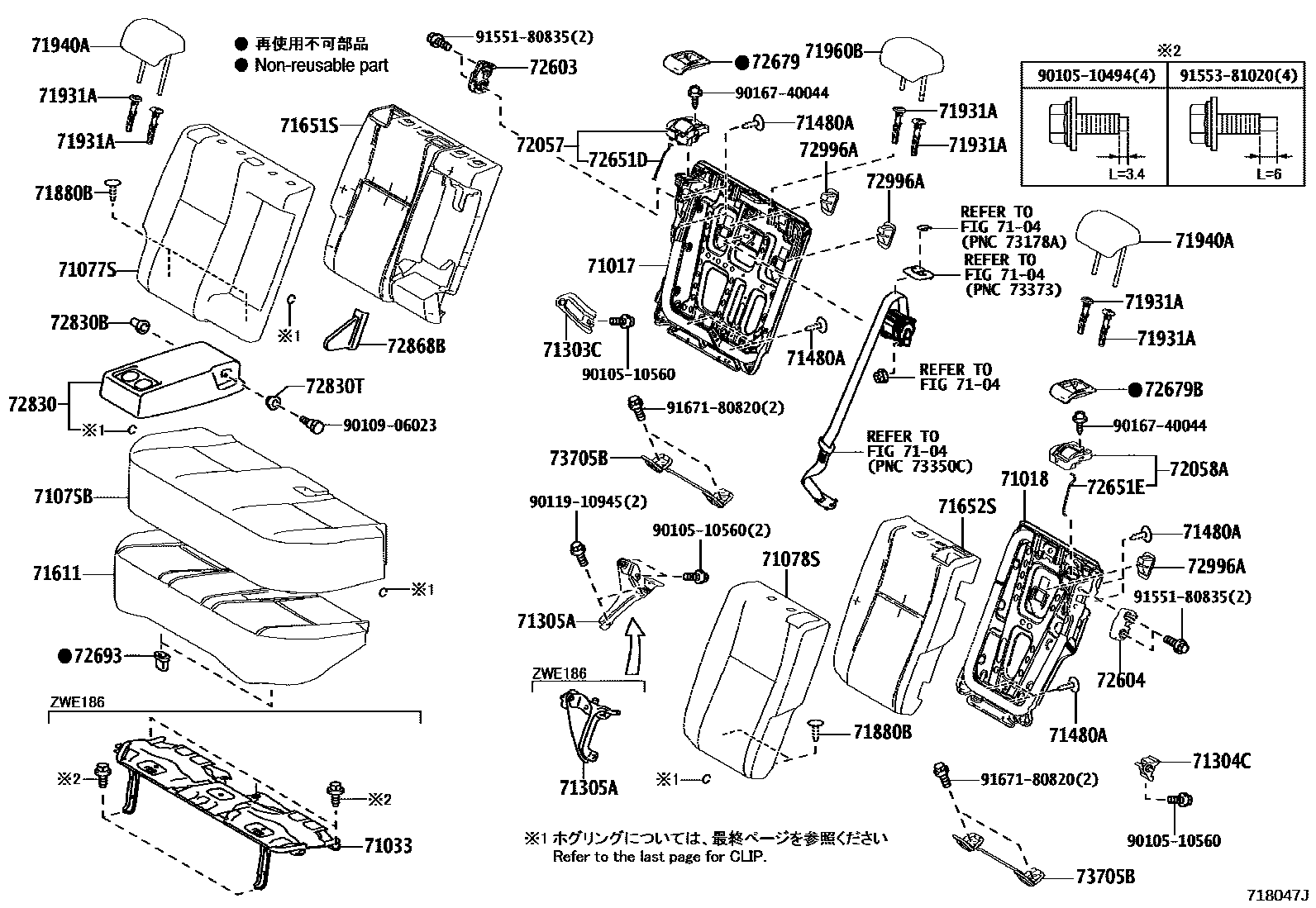

REAR SEAT & SEAT TRACK

0001 1 0002 1�������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-12A20iNRE185,NZE18#,ZRE186,ZWE186201503

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-12460iNZE18#,ZRE186201208-201503

71033LEG SUB-ASSY, REAR SEAT CUSHION

main71033-02011iZWE186201604

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-12G10-C3iZRE186..RS201208-201405

BLACK,TRIM2#

main71075-12G10-C6iZRE186..RS201405-201503

BLACK,TRIM2#

main71075-12G10-C9supersedes 71075-12P00-C4iZRE186..RS201503-201805

BLACK,TRIM2#

main71075-12P20-C0iZWE186201604-201805

BLACK,TRIM2#

main71075-12F90-21supersedes 71075-12F80-C4iNZE18#,ZRE186..CVT201503-201805

main71075-12F90-C4supersedes 71075-12F80-C4iNZE18#,ZRE186..CVT201208-201405

main71075-12F90-C8supersedes 71075-12F80-C4iNZE18#,ZRE186..CVT201405-201503

main71075-12L90-A0iNZE18#,ZRE186..CVT201208-201405

main71075-12L90-A1iNZE18#,ZRE186..CVT201405-201503

main71075-12N60-C1iNZE18#201405-201503

main71075-12N90-D2iNZE18#201503-201805

main71075-12P10-A1iZWE186201604-201805

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-12M51-C7iZWE186201604-201805

BLACK,TRIM2#

main71077-12Q00-C2iZRE186..RS201208-201307

BLACK,TRIM2#

main71077-12Q01-C2iZRE186..RS201307-201405

BLACK,TRIM2#

main71077-12Q01-C5iZRE186..RS201405-201503

BLACK,TRIM2#

main71077-12Q01-C7supersedes 71077-12T00-C1iZRE186..RS201503-201805

BLACK,TRIM2#

main71077-12M50-C1supersedes 71077-12L51-C9iNZE18#,ZRE186..CVT201208-201307

main71077-12M51-C1supersedes 71077-12L51-C9iNZE18#,ZRE186..CVT201307-201405

main71077-12M51-C5supersedes 71077-12L51-C9iNZE18#,ZRE186..CVT201405-201503

main71077-12M60-A1iNZE18#,ZRE186..CVT201208-201307

main71077-12M61-A1iNZE18#,ZRE186..CVT201307-201405

main71077-12M61-A2iNZE18#,ZRE186..CVT201405-201503

main71077-12R00-D3iNZE18#201503-201805

main71077-12S80-C2iNZE18#201405-201503

main71077-12T10-A1iZWE186201604-201805

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-12J70-C2iZRE186..RS201208-201307

BLACK,TRIM2#

main71078-12J71-C2iZRE186..RS201307-201405

BLACK,TRIM2#

main71078-12J71-C5iZRE186..RS201405-201503

BLACK,TRIM2#

main71078-12J71-C7supersedes 71078-12N90-C1iZRE186..RS201503-201805

BLACK,TRIM2#

main71078-12P90-C0iZWE186201604-201805

BLACK/GRAY,TRIM2#

main71078-12J50-C3supersedes 71078-12J41-C8iNZE18#,ZRE186..CVT201208-201307

main71078-12J51-C3supersedes 71078-12J41-C8iNZE18#,ZRE186..CVT201307-201405

main71078-12J51-C7supersedes 71078-12J41-C8iNZE18#,ZRE186..CVT201405-201503

main71078-12J51-C9supersedes 71078-12J41-C8iNZE18#,ZRE186..CVT201503-201805

main71078-12K40-A1iNZE18#,ZRE186..CVT201208-201307

main71078-12K41-A1iNZE18#,ZRE186..CVT201307-201405

main71078-12K41-A3iNZE18#,ZRE186..CVT201405-201503

main71078-12N60-C2iNZE18#201405-201503

main71078-12N80-D3iNZE18#201503-201805

main71078-12P00-A1iZWE186201604-201805

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-12210iNRE185,NZE18#,ZRE186,ZWE186201503

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-12080iNZE18#,ZRE186201208-201503

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-12230iZWE186201604

main71305-12240iNRE185,NZE18#,ZRE186201503

71480ACLIP (FOR REAR SEATBACK)

main90467-05164-C0×8iNZE18#,ZRE186201208-201503

BLACK,TRIM2#

main90467-05164-C7×8iNRE185,NZE18#,ZRE186,ZWE186201610-201805

BLACK

71611PAD, REAR SEAT CUSHION

main71503-12220iNZE181,ZRE186201208-201503

main71503-12230iNZE184201503

main71503-12300iZWE186201604

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-12A90iNZE18#,ZRE186201208-201503

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-12830iNZE18#,ZRE186201208-201503

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-05164-B2×4iNZE18#,ZRE186201208-201311

DK.GRAY

main90467-05164-C0×4iNZE18#,ZRE186201311-201503

BLACK

main90467-05164-C7×4iNRE185,NZE18#,ZRE186,ZWE186201610-201805

BLACK

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-21×3iNRE185,ZRE186; NZE18#; ZWE186201710-201805

main71930-44020-A0×3iNZE18#,ZRE186..CVT201208-201503

main71930-44020-C0×3iZWE186201604-201710

main71931-47010-A0×3iNZE18#,ZRE186..CVT201208-201503

main71931-47010-C0×3iNZE18#,ZRE186201208-201503

main71931-47010-C8×3iNRE185,ZRE186; NZE18#; ZWE186201710-201805

71940AHEADREST ASSY, REAR SEAT

main71940-12D11-C6×2iZWE186201604-201805

BLACK,TRIM2#

main71940-12D20-C3×2supersedes 71940-12E60-C1iZRE186..RS201208-201503

BLACK,TRIM2#

main71940-12D10-C3×2supersedes 71940-12C90-C2iNZE18#,ZRE186..CVT201208-201403

main71940-12D11-C3×2iNZE181201405-201503

main71940-12D11-C7×2iNZE18#; NZE181201405-201503

main71940-12D90-A0×2iNZE18#,ZRE186..CVT201208-201503

main71940-12E50-D2×2iNZE18#201503-201805

main71940-12E70-A0×2iZWE186201604-201805

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-12791-C6iZWE186201604-201805

BLACK,TRIM2#

main71960-12800-C3supersedes 71960-12A70-C1iZRE186..RS201503-201805

BLACK,TRIM2#

main71960-12790-C3supersedes 71960-12770-C2iNZE18#,ZRE186..CVT201208-201403

main71960-12791-C3iNZE181201403-201405

main71960-12791-C7iNZE18#; NZE181; NZE184201405-201503

main71960-12A10-A0iNZE18#,ZRE186..CVT201208-201503

main71960-12A60-D2iNZE18#201503-201805

main71960-12A80-A0iZWE186201604-201805

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-12010-A0iNZE18#,ZRE186..CVT201208-201503

IVORY,TRIM0#

main72057-12010-C0iNRE185,ZRE186; NZE18#201503-201805

BLACK,TRIM2#; BLACK,TRIM2#,3#

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-12010-A0iNZE18#,ZRE186..CVT201208-201503

IVORY,TRIM0#

main72058-12010-C0iNRE185,ZRE186; NZE18#201503-201805

BLACK,TRIM2#; BLACK,TRIM2#,3#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72603-12050iNRE185,NZE18#,ZRE186,ZWE186201503

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72604-12070iNZE18#,ZRE186201208-201503

72651DROD, REAR SEATBACK LOCK, RH

main72651-12190iNRE185,NZE18#,ZRE186,ZWE186201503

72651EROD, REAR SEATBACK LOCK, LH

main72652-12140iNZE18#,ZRE186201208-201503

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72667-12010-A0iNZE18#,ZRE186..CVT201208-201503

IVORY,TRIM0#

main72667-12010-C0iZWE186201604-201805

BLACK,TRIM0#,2#

72679BBEZEL, REAR SEATBACK LOCK CONTROL

main72668-12010-A0iNZE18#,ZRE186..CVT201208-201503

IVORY,TRIM0#

main72668-12010-C0iZWE186201604-201805

BLACK,TRIM0#,2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNRE185,NZE18#,ZRE186,ZWE186201503

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-12820-C7iZWE186201604-201805

BLACK,TRIM2#

main72830-12830-C2iZRE186..RS201208-201405

BLACK,TRIM2#

main72830-12830-C3supersedes 72830-12A30-C0iZRE186..RS201503-201805

BLACK,TRIM2#

main72830-12830-C4iZRE186..RS201405-201503

BLACK,TRIM2#

main72830-12690-A0iNZE18#,ZRE186..CVT201208-201405

main72830-12690-A1iNZE18#,ZRE186..CVT201405-201503

main72830-12820-A2iZWE186201604-201805

main72830-12820-C1supersedes 72830-12780-C4iNZE18#,ZRE186..CVT201208-201405

main72830-12820-C5iNZE18#; NZE18#,ZRE186..CVT201405-201503

main72830-12A20-D0iNZE18#201503-201805

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main72622-47010iNZE18#,ZRE186201208-201503

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-47020iNRE185,NZE18#,ZRE186,ZWE186201503

72868BCOVER, CENTER ARMREST HINGE

main72868-12050-C0iNRE185,NZE18#,ZRE186201503-201805

BLACK,TRIM2#

main72868-12050-A0iNZE18#,ZRE186..CVT201208-201503

72996ACOVER, REAR SEATBACK

main72996-12380-C0×3iNRE185,NZE18#,ZRE186,ZWE186201503-201805

BLACK

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-12150×2iNZE18#,ZRE186201208-201503

main73705-12160×2iZWE186201604

9010510494

main90105-10494

9010510560

main90105-10560

9010906023

main90109-06023

9011910945

main90119-10945

9016740044

main90167-40044

9155180835

main91551-80835

9155381020

main91553-81020

9167180820

main91671-80820

41 parts on this diagram · 2 diagrams in section
