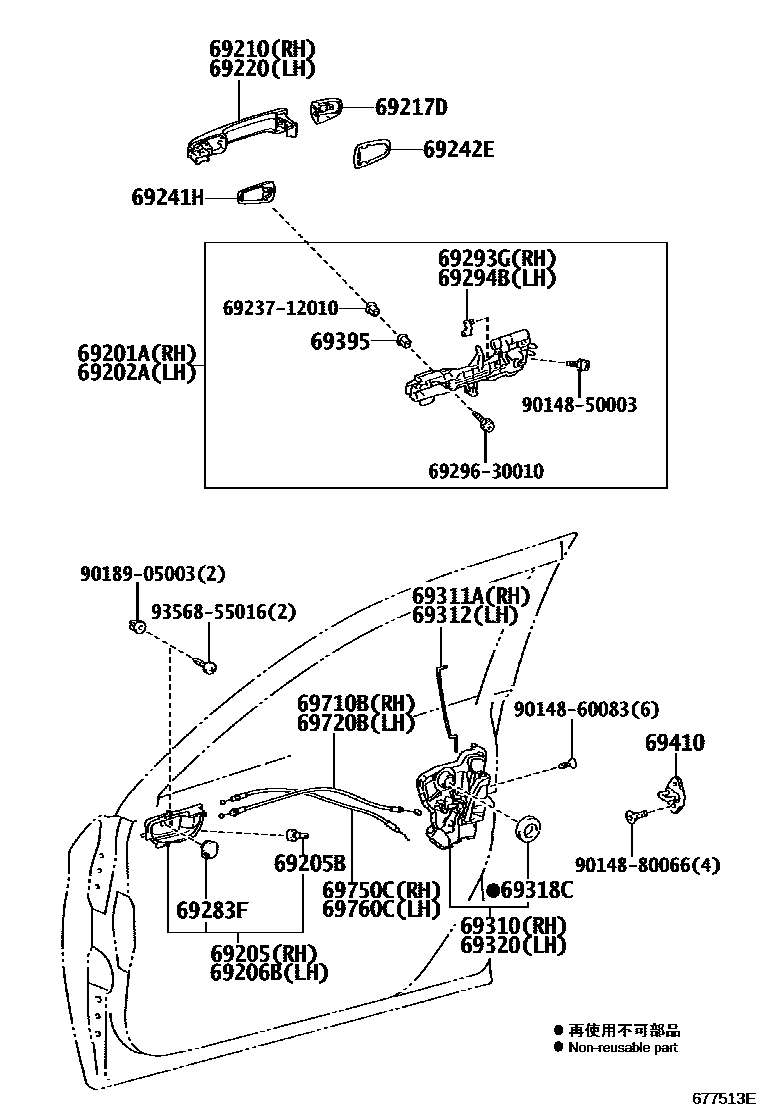

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-12110iNRE185,NZE18#,ZRE186,ZWE186201503

main69201-52130iNZE18#,ZRE186201208-201503

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-12060iNRE185,NZE18#,ZRE186,ZWE186201503

main69202-52070iNZE18#,ZRE186201208-201503

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12240-C0iNZE18#201503-201805

BLACK,TRIM2#

main69205-12240-C0iNRE185,ZRE186201503-201805

BLACK,TRIM2#,3#

main69205-12240-C0iZWE186201604-201805

BLACK,TRIM0#,2#

main69205-52170-C0iNZE18#,ZRE186..CVT201208-201503

BLACK,TRIM0#,2#

main69205-52170-C0iZRE186..RS201208-201503

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNZE18#,ZRE186201208-201503

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12240-C0iNRE185,ZRE186201503-201805

BLACK,TRIM2#

main69206-12240-C0iNZE18#201503-201805

BLACK,TRIM2#,3#

main69206-12240-C0iZWE186201604-201805

BLACK,TRIM0#,2#

main69206-52170-C0iNZE18#,ZRE186..CVT201208-201503

BLACK,TRIM2#

main69206-52170-C0iNZE18#,ZRE186..CVT201208-201503

BLACK,TRIM0#,2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52100-A0iNRE185,NZE18#,ZRE186201503-201805

SUPER WHITE 2,040

sub69210-52100

main69210-52100-A1iZRE186..RS201208-201805

WHITE PEARL CS.,070

sub69210-52100

main69210-52100-A1iZRE186..RS201208-201503

sub69210-52100

main69210-52100-B0iZRE186..RS201208-201503

sub69210-52100

main69210-52100-B0iNRE185,NZE18#,ZRE186,ZWE186201208-201805

SILVER ME.,1F7

sub69210-52100

main69210-52100-C0iNZE18#,ZRE186..CVT201208-201503

sub69210-52100

main69210-52100-C0iNZE18#,ZRE186..CVT201208-201805

BLACK MC.,209

sub69210-52100

main69210-52100-D3iZRE186..RS201208-201503

sub69210-52100

main69210-52100-D3iZRE186..RS201208-201805

RED M.M.,3R3

sub69210-52100

main69210-52100-D4iNZE18#201405-201503

BLACKISH RED MC.,3R0

sub69210-52100

main69210-52100-E6iZRE186..RS201208-201503

sub69210-52100

main69210-52100-E6iNZE18#,ZRE186..CVT201208-201503

AVANT-GARDE BRONZE ME.,4V8

sub69210-52100

main69210-52100-E7iZRE186..RS201208-201503

sub69210-52100

main69210-52100-E7iNRE185,NZE18#,ZRE186,ZWE186201208-201805

ORANGE ME.,4R8

sub69210-52100

main69210-52100-G2iNRE185,NZE18#,ZRE186,ZWE186201503-201805

CITRUS M.M.,6W2

sub69210-52100

main69210-52100-J8iNZE18#,ZRE186..CVT201208-201503

sub69210-52100

main69210-52100-J8iNZE18#,ZRE186..CVT201208-201503

BLUE ME.,8T7

sub69210-52100

main69210-52100-R5iNRE185,NZE18#,ZRE186,ZWE186201503-201805

BLUE ME.,8X7

sub69210-52100

main69211-52100-A1iNZE18#201208-201503

sub69211-52100

main69211-52100-A1iZRE186..RS201208-201503

WHITE PEARL CS.,070

sub69211-52100

main69211-52100-B0iZRE186..RS201208-201503

SILVER ME.,1F7

sub69211-52100

main69211-52100-B0iZRE186..RS201208-201503

sub69211-52100

main69211-52100-C0iZRE186..RS201208-201503

BLACK MC.,209

sub69211-52100

main69211-52100-C0iNZE18#201208-201503

sub69211-52100

main69211-52100-D4iNZE18#201208-201503

sub69211-52100

main69211-52100-D4iNZE18#201208-201503

RED M.M.,3R3

sub69211-52100

main69211-52100-E5iNZE18#201208-201503

AVANT-GARDE BRONZE ME.,4V8

sub69211-52100

main69211-52100-E5iZRE186..RS201208-201503

sub69211-52100

main69211-52100-E6iZRE186..RS201208-201503

ORANGE ME.,4R8

sub69211-52100

main69211-52100-E6iNZE18#201208-201503

sub69211-52100

main69211-52100-J5iNZE18#201208-201503

sub69211-52100

main69211-52100-J5iNZE18#201208-201503

BLUE ME.,8T7

sub69211-52100

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-52030-A0iZWE186201503-201805

sub69217-52030

main69217-52030-A1iNRE185,NZE18#,ZRE186,ZWE186201208-201805

sub69217-52030

main69217-52030-B0iNRE185,NZE18#,ZRE186,ZWE186201208-201805

sub69217-52030

main69217-52030-C0iNZE18#,ZRE186201208-201805

sub69217-52030

main69217-52030-D3iNZE18#,ZRE186201208-201805

sub69217-52030

main69217-52030-D4iNZE18#201405-201503

sub69217-52030

main69217-52030-E6iNZE18#,ZRE186201208-201503

sub69217-52030

main69217-52030-E7iNRE185,NZE18#,ZRE186,ZWE186201208-201805

sub69217-52030

main69217-52030-G3iNRE185,NZE18#,ZRE186,ZWE186201503-201805

sub69217-52030

main69217-52030-J7iNZE18#,ZRE186201208-201503

sub69217-52030

main69217-52030-R7iNRE185,NZE18#,ZRE186,ZWE186201503-201805

sub69217-52030

main69217-52040-A0iNRE185,NZE18#,ZRE186201503-201805

sub69217-52040

main69217-52040-A1iNRE185,NZE18#,ZRE186,ZWE186201208-201805

sub69217-52040

main69217-52040-B0iNZE18#,ZRE186201208-201805

sub69217-52040

main69217-52040-C0iNRE185,NZE18#,ZRE186,ZWE186201208-201805

sub69217-52040

main69217-52040-D3iNRE185,NZE18#,ZRE186,ZWE186201208-201805

sub69217-52040

main69217-52040-D4iNZE18#201405-201503

sub69217-52040

main69217-52040-E6iNZE18#,ZRE186201208-201503

sub69217-52040

main69217-52040-E7iNZE18#,ZRE186201208-201805

sub69217-52040

main69217-52040-G3iNRE185,NZE18#,ZRE186,ZWE186201503-201805

sub69217-52040

main69217-52040-J7iNZE18#,ZRE186201208-201503

sub69217-52040

main69217-52040-R7iNRE185,NZE18#,ZRE186,ZWE186201503-201805

sub69217-52040

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-52100-A0iNRE185,NZE18#,ZRE186201503-201805

SUPER WHITE 2,040

sub69210-52100

main69210-52100-A1iNZE18#,ZRE186..CVT201208-201805

WHITE PEARL CS.,070

sub69210-52100

main69210-52100-A1iZRE186..RS201208-201503

sub69210-52100

main69210-52100-B0iNZE18#,ZRE186..CVT201208-201503

sub69210-52100

main69210-52100-B0iNRE185,NZE18#,ZRE186,ZWE186201208-201805

SILVER ME.,1F7

sub69210-52100

main69210-52100-C0iNZE18#,ZRE186..CVT201208-201503

sub69210-52100

main69210-52100-C0iNZE18#,ZRE186..CVT201208-201805

BLACK MC.,209

sub69210-52100

main69210-52100-D3iZRE186..RS201208-201503

sub69210-52100

main69210-52100-D3iNRE185,NZE18#,ZRE186,ZWE186201208-201805

RED M.M.,3R3

sub69210-52100

main69210-52100-D4iNZE18#201405-201503

BLACKISH RED MC.,3R0

sub69210-52100

main69210-52100-E6iNZE18#,ZRE186..CVT201208-201503

AVANT-GARDE BRONZE ME.,4V8

sub69210-52100

main69210-52100-E6iZRE186..RS201208-201503

sub69210-52100

main69210-52100-E7iNZE18#,ZRE186..CVT201208-201503

sub69210-52100

main69210-52100-E7iNRE185,NZE18#,ZRE186,ZWE186201208-201805

ORANGE ME.,4R8

sub69210-52100

main69210-52100-G2iNRE185,NZE18#,ZRE186,ZWE186201503-201805

CITRUS M.M.,6W2

sub69210-52100

main69210-52100-J8iNZE18#,ZRE186..CVT201208-201503

sub69210-52100

main69210-52100-J8iZRE186..RS201208-201503

BLUE ME.,8T7

sub69210-52100

main69210-52100-R5iNRE185,NZE18#,ZRE186,ZWE186201503-201805

BLUE ME.,8X7

sub69210-52100

main69211-52100-A1iNZE18#201208-201503

WHITE PEARL CS.,070

sub69211-52100

main69211-52100-A1iNZE18#201208-201503

sub69211-52100

main69211-52100-B0iZRE186..RS201208-201503

sub69211-52100

main69211-52100-B0iZRE186..RS201208-201503

SILVER ME.,1F7

sub69211-52100

main69211-52100-C0iZRE186..RS201208-201503

sub69211-52100

main69211-52100-C0iNZE18#201208-201503

BLACK MC.,209

sub69211-52100

main69211-52100-D4iZRE186..RS201208-201503

RED M.M.,3R3

sub69211-52100

main69211-52100-D4iNZE18#201208-201503

sub69211-52100

main69211-52100-E5iNZE18#201208-201503

sub69211-52100

main69211-52100-E5iNZE18#201208-201503

AVANT-GARDE BRONZE ME.,4V8

sub69211-52100

main69211-52100-E6iZRE186..RS201208-201503

sub69211-52100

main69211-52100-E6iZRE186..RS201208-201503

ORANGE ME.,4R8

sub69211-52100

main69211-52100-J5iNZE18#201208-201503

BLUE ME.,8T7

sub69211-52100

main69211-52100-J5iNZE18#201208-201503

sub69211-52100

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-12150iNRE185,NZE18#,ZRE186201503-201604

sub69241-12160

main69241-12160iNRE185,NZE18#,ZRE186,ZWE186201604

main69241-52020iNZE18#,ZRE186201208-201503

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-33040iNRE185,NZE18#,ZRE186,ZWE186201604

main69242-52030iNRE185,NZE18#,ZRE186201208-201604

69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL

main69283-52010-C0iNZE18#201208-201805

BLACK,TRIM2#

main69283-52010-C0iNRE185,ZRE186201503-201805

BLACK,TRIM2#,3#

main69283-52010-C0iZWE186201208-201805

BLACK,TRIM0#,2#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iNRE185,NZE18#,ZRE186,ZWE186201208-201503

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iNZE18#,ZRE186201208-201503

69310LOCK ASSY, FRONT DOOR, RH

main69030-42210iNZE18#,ZRE186201208-201503

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-12190iNZE18#,ZRE186201208-201503

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-12190iNZE18#,ZRE186201208-201503

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNZE18#,ZRE186201208-201503

69320LOCK ASSY, FRONT DOOR, LH

main69040-12490iZRE186..RS201208-201503

main69040-42230iNZE18#,ZRE186..CVT201208-201503

main69040-42230iNRE185,NZE18#,ZRE186,ZWE186201503

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-30010iNZE18#,ZRE186201208-201503

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iNZE18#,ZRE186201208-201503

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-12150iNZE18#,ZRE186201208-201503

main69710-12180iNRE185,NZE18#,ZRE186,ZWE186201503

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-12150iNZE18#,ZRE186201208-201503

main69710-12180iNRE185,NZE18#,ZRE186,ZWE186201503

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-12180iNZE18#,ZRE186201208-201503

main69750-12210iNRE185,NZE18#,ZRE186,ZWE186201503

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-12180iNZE18#,ZRE186201208-201503

main69750-12210iNRE185,NZE18#,ZRE186,ZWE186201503

6923712010RETAINER, DOOR OUTSIDE HANDLE

main69237-12010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356855016

main93568-55016

31 parts on this diagram · 1 diagram in section
