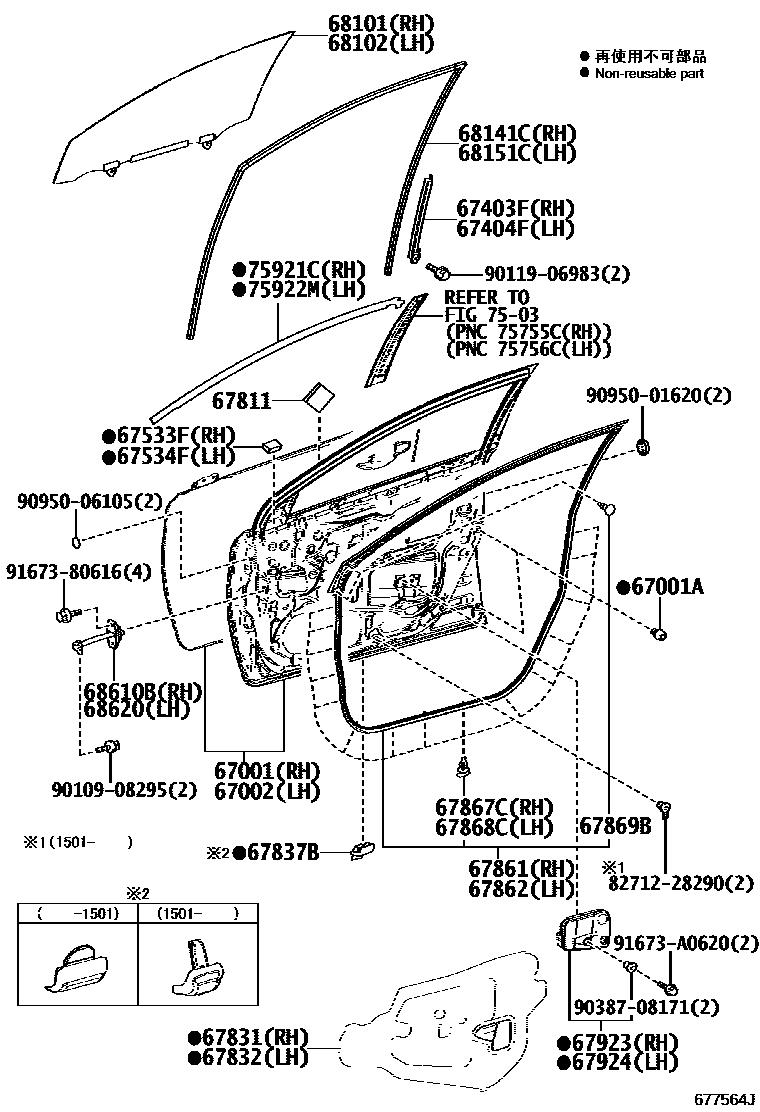

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12A90iNZE18#,ZRE186201208-201501

main67001-12B70iNZE18#,ZRE186201501-201503

67001ACUSHION, FRONT DOOR PANEL

main90541-09143×4iNZE18#,ZRE186201208-201503

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12A90iNZE18#,ZRE186201208-201501

main67002-12B70iNZE18#,ZRE186201501-201503

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12290iNZE18#,ZRE186201208-201503

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12280iNRE185,NZE18#,ZRE186,ZWE186201503

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main69759-12110iNZE18#,ZRE186201208-201503

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main69759-12110iNZE18#,ZRE186201208-201503

67811PAD, FRONT DOOR SILENCER

main67811-12180×2iNRE185,NZE18#,ZRE186,ZWE186201503

main67811-12190×2iNRE185,NZE18#,ZRE186,ZWE186201503

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12720iNZE18#,ZRE186201208-201503

main67831-12770iZWE186201604

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12500iNZE18#,ZRE186201208-201503

main67832-12550iZWE186201604

67837BSEAL, FRONT DOOR DUST PROOF

main67837-12080×4iNZE18#,ZRE186201208-201501

main67837-12120×4iNZE18#,ZRE186201501-201503

main67837-48050×4iNRE185,NZE18#,ZRE186201601

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12A80iNZE18#,ZRE186201208-201503

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12A80iNZE18#,ZRE186201208-201503

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iNZE18#,ZRE186201208-201503

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iNZE18#,ZRE186201208-201503

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iNZE18#,ZRE186201208-201503

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-12070iNZE18#,ZRE186201208-201503

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-12070iNZE18#,ZRE186201208-201503

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12C80supersedes 68101-12C70iNRE185,ZRE186,ZWE186; NZE18#201503

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12C80supersedes 68102-12C70iNRE185,ZRE186,ZWE186; NZE18#201503

68141CRUN, FRONT DOOR GLASS, RH

main68141-12590iNZE18#,ZRE186201208-201503

main68141-12591iNRE185,NZE18#,ZRE186,ZWE186201601

68151CRUN, FRONT DOOR GLASS, LH

main68151-12290iNZE18#,ZRE186201208-201503

main68151-12291iNRE185,NZE18#,ZRE186,ZWE186201601

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12240iNZE18#,ZRE186201208-201503

68620CHECK ASSY, FRONT DOOR, LH

main68610-12240iNZE18#,ZRE186201208-201503

7503SIDE MOULDING

→ Go to FIG 75-03

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12110iNZE18#,ZRE186201208-201503

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12110iNZE18#,ZRE186201208-201503

8271228290CLAMP, WIRING HARNESS

main82712-28290

9010908295

main90109-08295

9011906983

main90119-06983

9038708171

main90387-08171

9095001620

main90950-01620

9095006105

main90950-06105

9167380616

main91673-80616

91673A0620

main91673-A0620

35 parts on this diagram · 3 diagrams in section
