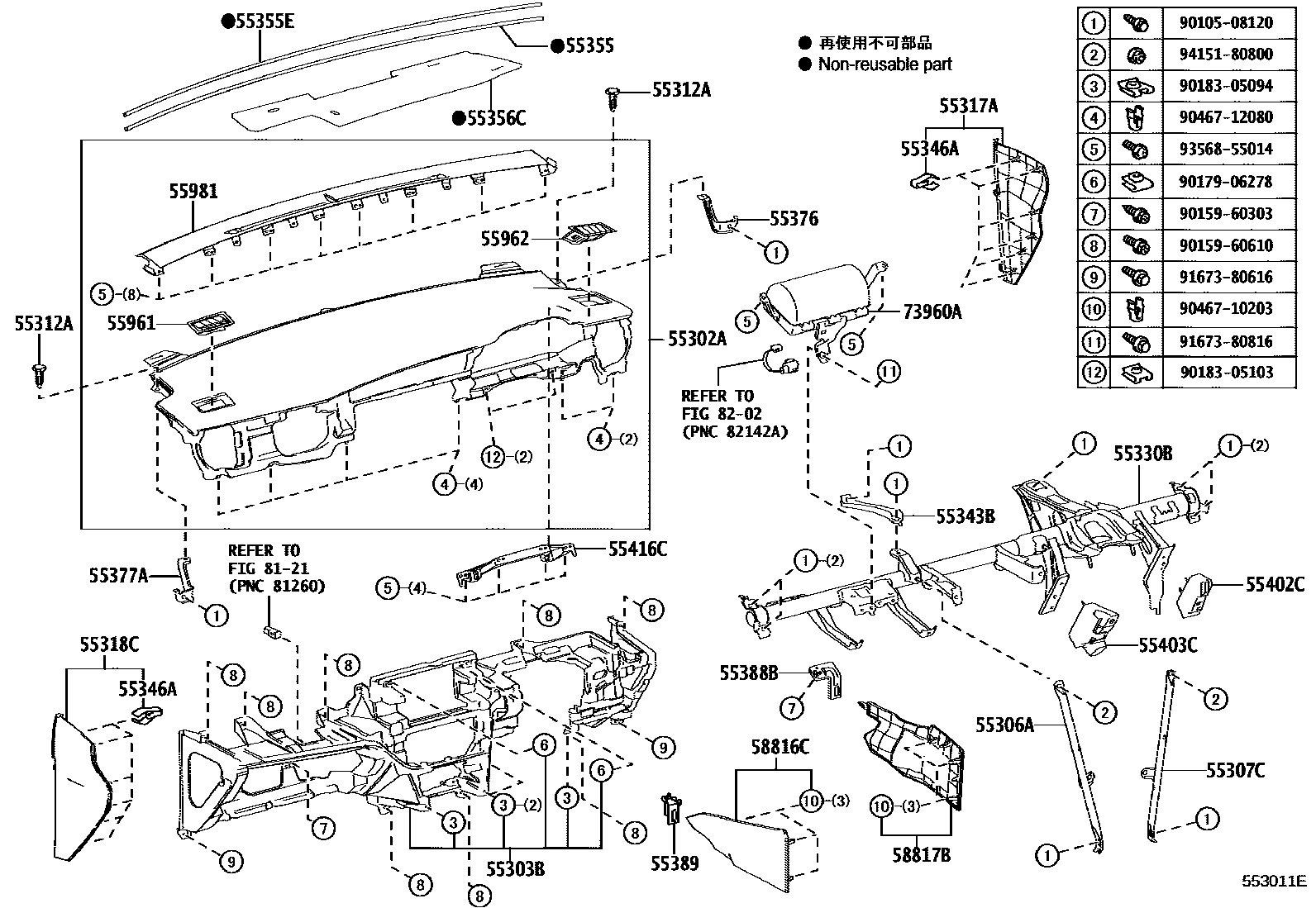

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM0#,2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55312ACLIP, INSTRUMENT PANEL
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55346ACLIP, INSTRUMENT PANEL, NO.2
55355CUSHION, INSTRUMENT PANEL, NO.1
55355ECUSHION, INSTRUMENT PANEL
55356CCUSHION, INSTRUMENT PANEL, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55388BBRACKET, CONSOLE MOUNTING, RH
55389BRACKET, CONSOLE MOUNTING, LH
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM0#,2#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM0#,2#
58816CINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
58817BINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
8121
8202
9010508120
main90105-08120
9015960303
main90159-60303
9015960610
main90159-60610
9017906278
main90179-06278
9018305094
main90183-05094
9018305103
main90183-05103
9046710203
main90467-10203
9046712080
main90467-12080
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180800
main94151-80800
40 parts on this diagram · 7 diagrams in section
