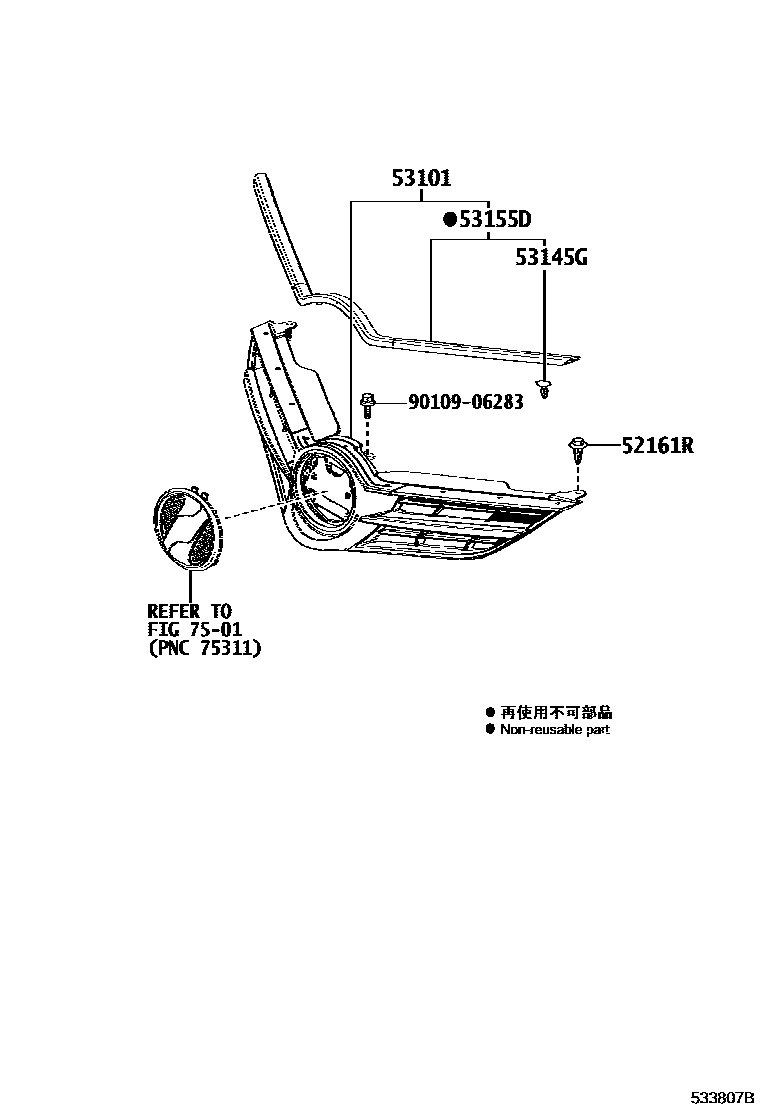

RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-16010×2iNZE18#,ZRE186201208-201503

53101GRILLE SUB-ASSY, RADIATOR

main53100-12470-A1iNZE18#,ZRE186201208-201503

WHITE PEARL CS.,070

main53100-12470-B0iNZE18#,ZRE186201208-201503

SILVER ME.,1F7

main53100-12470-C0iNZE18#,ZRE186201208-201503

main53100-12470-D0iNZE18#,ZRE186201208-201503

RED M.M.,3R3

main53100-12470-D1iNZE18#,ZRE186201405-201503

BLACKISH RED MC.,3R0

main53100-12470-E0iNZE18#,ZRE186201208-201503

ORANGE ME.,4R8

main53100-12470-E1iNZE18#,ZRE186201208-201503

AVANT-GARDE BRONZE ME.,4V8

main53100-12470-J0iNZE18#,ZRE186201208-201503

BLUE ME.,8T7

main53100-12480iNRE185,NZE18#,ZRE186..CVT201503-201509

main53100-12481iNRE185,NZE18#,ZRE186,ZWE186..CVT201510

main53100-12490iZRE186..RS201503-201509

main53100-12491iZRE186..RS201510

main53100-12450-A1iNZE18#201208-201503

main53100-12450-B0iNZE18#201208-201503

main53100-12450-C0iNZE18#201208-201503

main53100-12450-D0iNZE18#201208-201503

main53100-12450-E0iNZE18#201208-201503

main53100-12450-E1iNZE18#201208-201503

main53100-12450-J0iNZE18#201208-201503

53145GCLIP, RADIATOR GRILLE

main53145-60030×5iNZE18#,ZRE186201208-201503

53155DSEAL, RADIATOR GRILLE, NO.1

main53037-12070iNZE18#,ZRE186201208-201503

main53037-12080iNRE185,NZE18#,ZRE186,ZWE186201503

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906283

main90109-06283

6 parts on this diagram · 2 diagrams in section
